UPPER PART - (774.602.000 S)
×
Part Of the Series: Upper part-Vinyl-232
Type no.: 774.602.000 S
EAN no.: 5705499112504
VVS no.: 153038146
LVI no.: 3303847
Size: Ø232

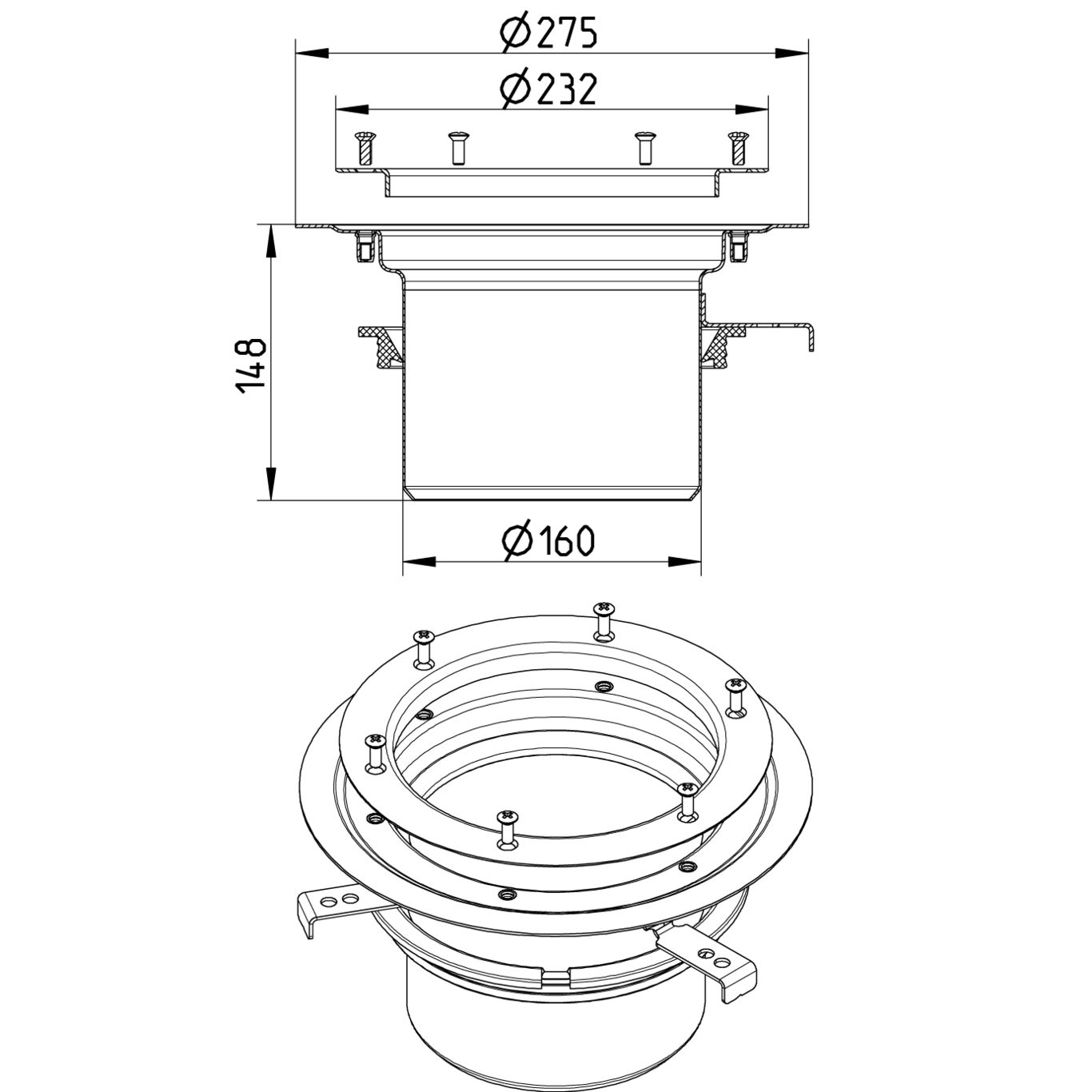

UPPER PART
-Floor: vinyl
-Frame: Ø232mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Vinyl |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 148 |
Number of Screw Holes | 0 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Shape | Round |
Size (Inch) | Ø9⅛ |
Size (mm) | Ø232 |
Weight (kg) | 2,02 |
Weight (lbs) | 4,45 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
