REMOVABLE WATER TRAP - (562.082.000 S)
Part Of the Series: Water trap-160
Type no.: 562.082.000 S
EAN no.: 5705499128475
VVS no.: 153019518

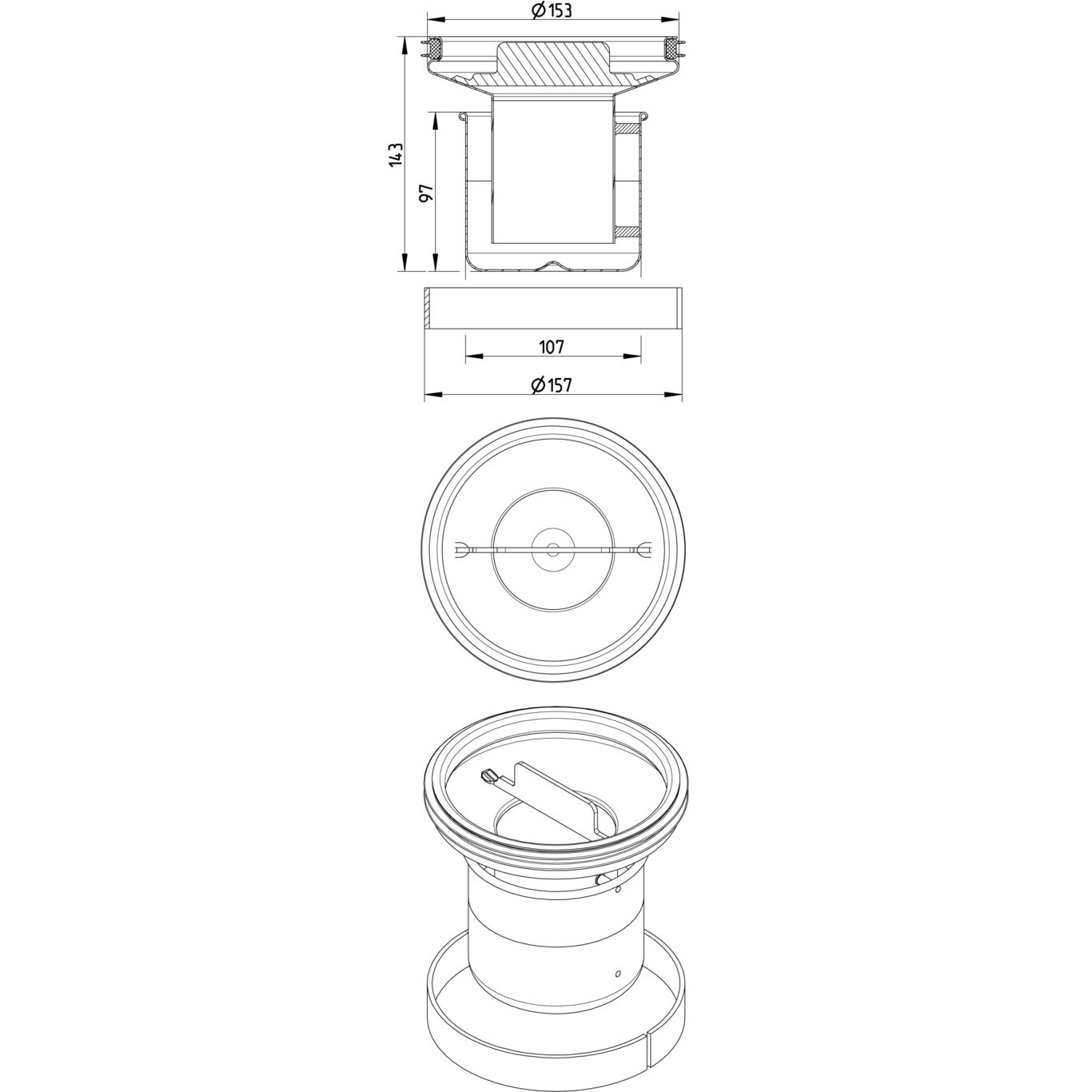

REMOVABLE WATER TRAP
-Water seal height = 80mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 143 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 153 |
Water Seal Height (mm) | 97 |
Weight (kg) | 1,31 |
Weight (lbs) | 2,89 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
