LOWER PART - (760.160.075 S)
Part Of the Series: Lower part-160
Type no.: 760.160.075 S
EAN no.: 5705499135336

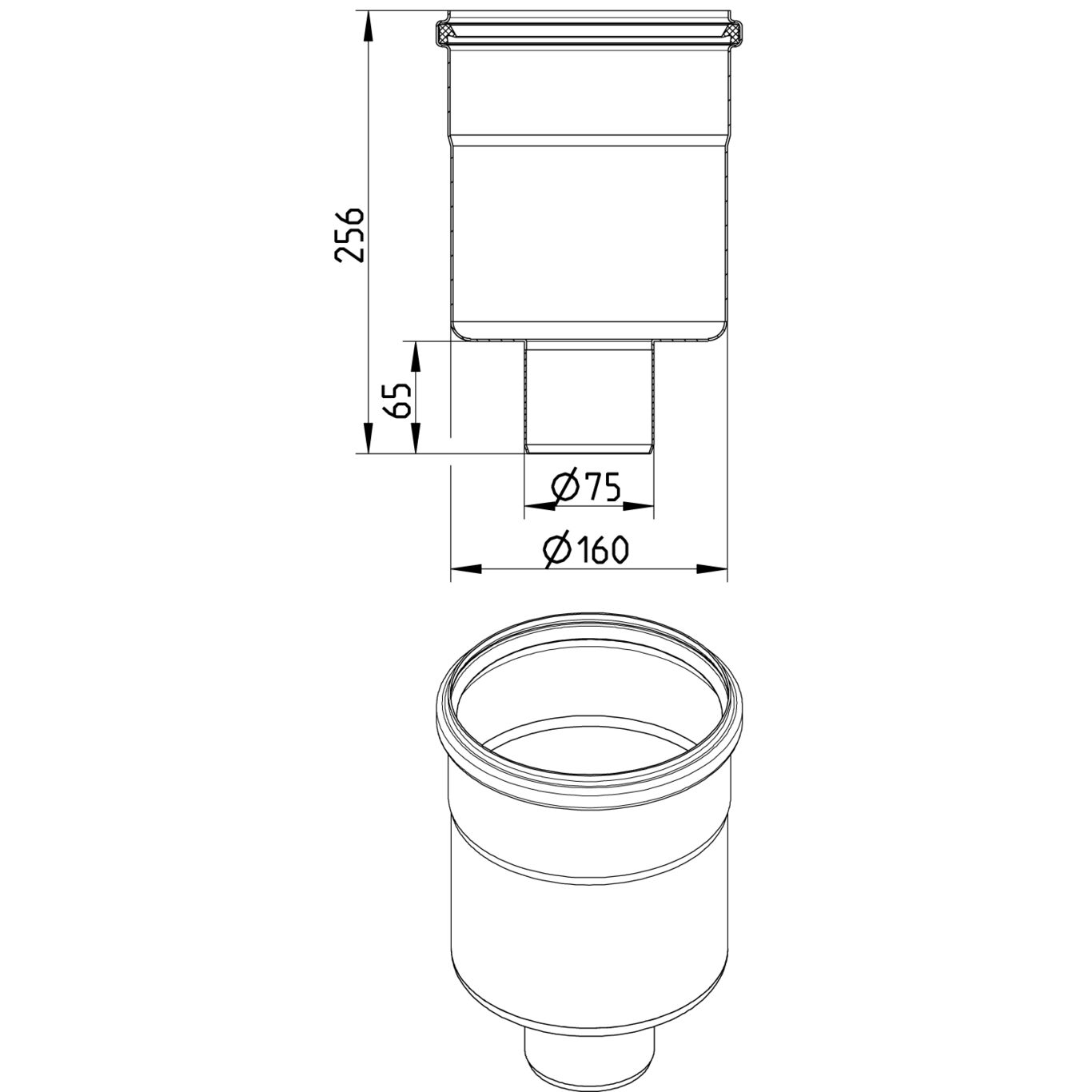

LOWER PART
-No membrane flange
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Minimum Height (mm) | 256 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Weight (kg) | 1,31 |
Weight (lbs) | 2,89 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
