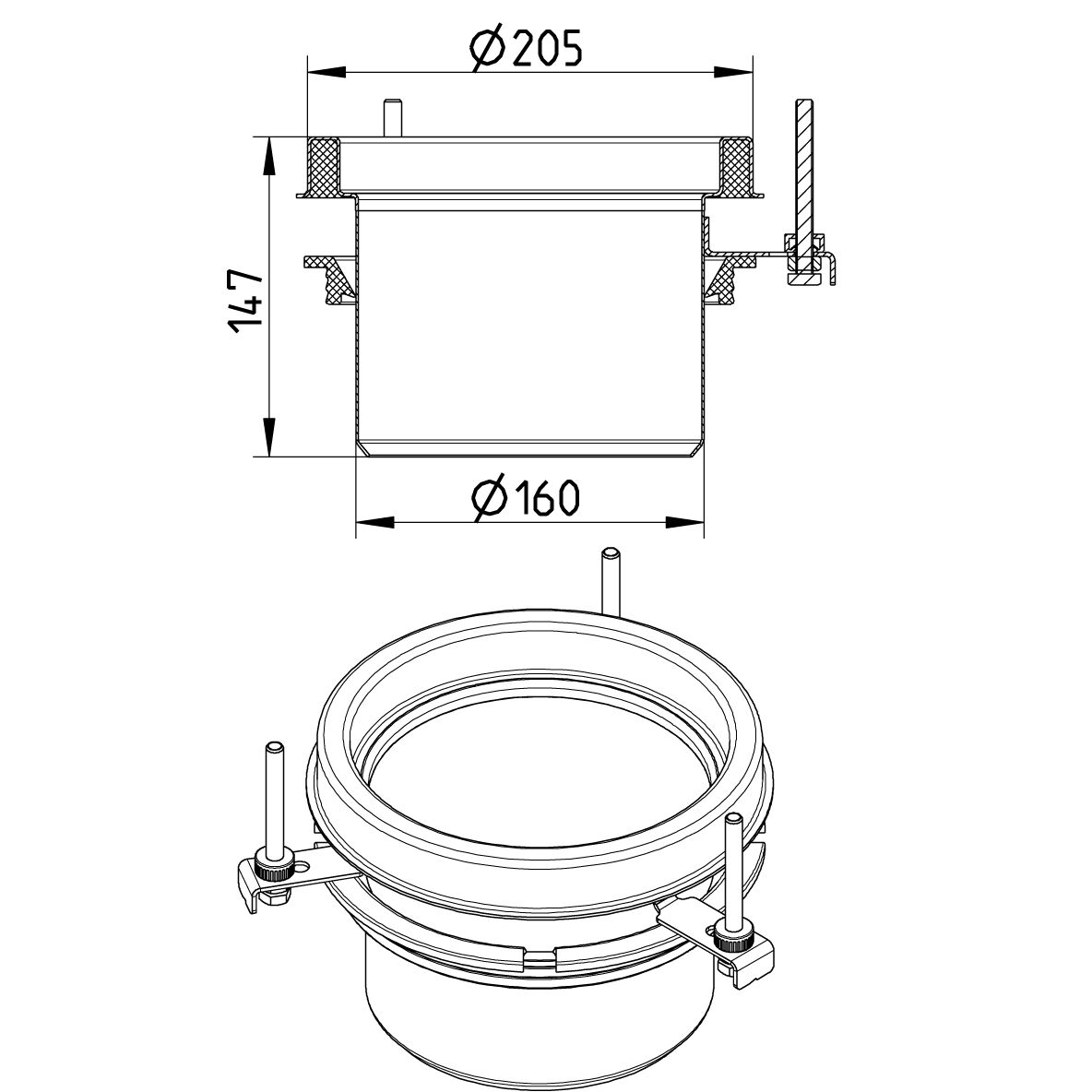

UPPER PART - (774.502.000 S)
×
Part Of the Series: Upper part-No membrane-205
Type no.: 774.502.000 S
EAN no.: 5705499112344
VVS no.: 153018188
LVI no.: 3303839
Size: Ø205
UPPER PART
-Floor: resin
-Frame: Ø205mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Resin |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 147 |
Number of Screw Holes | 0 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Shape | Round |
Size (Inch) | Ø8⅛ |
Size (mm) | Ø205 |
Weight (kg) | 2,22 |
Weight (lbs) | 4,89 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
