TILED/EPOXY GRATING CIRCLE - (790.173.000.06)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.06
EAN no.: 5705499128550
RSK no.: 7123456
LVI no.: 3304094
Size: Ø195

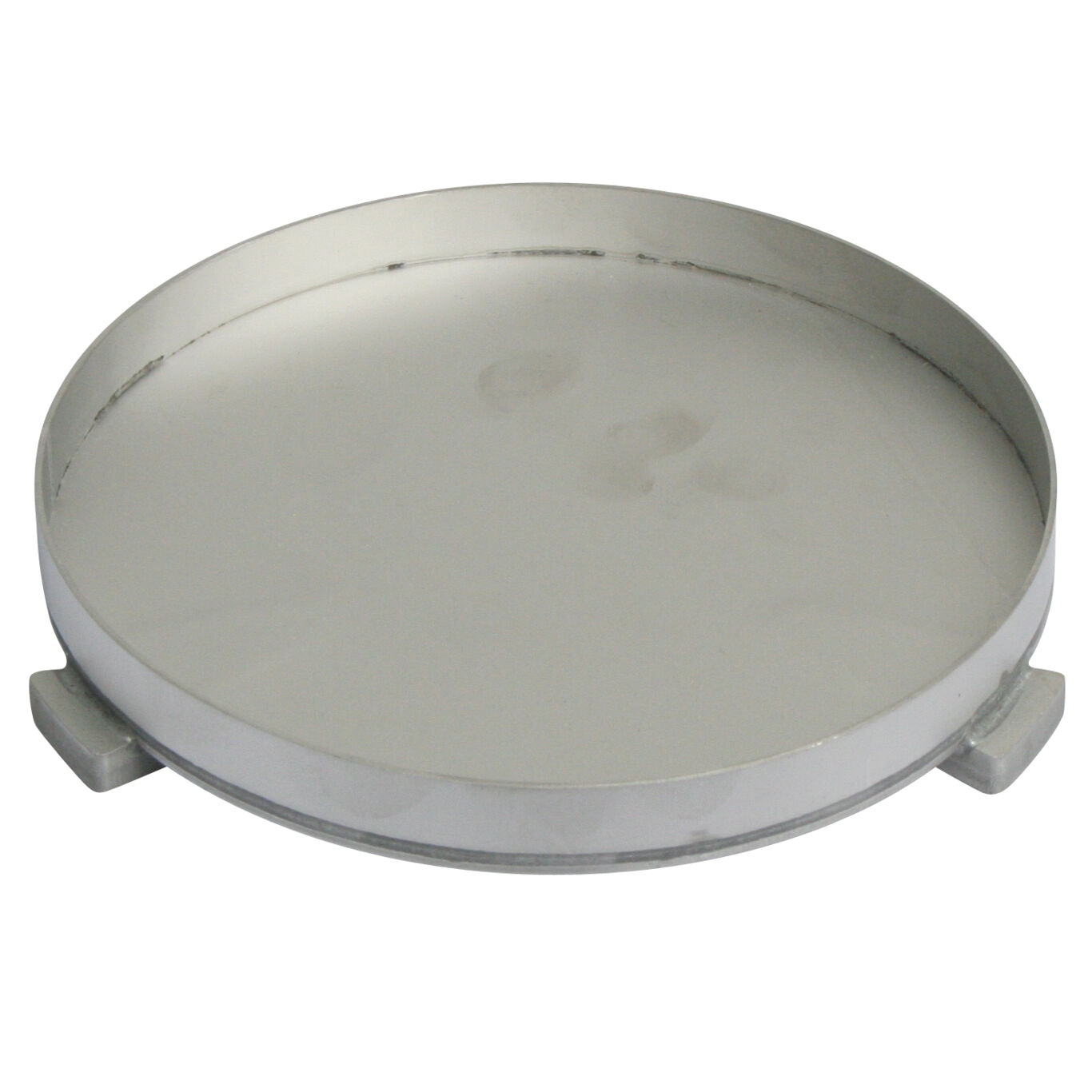

TILED/EPOXY GRATING CIRCLE

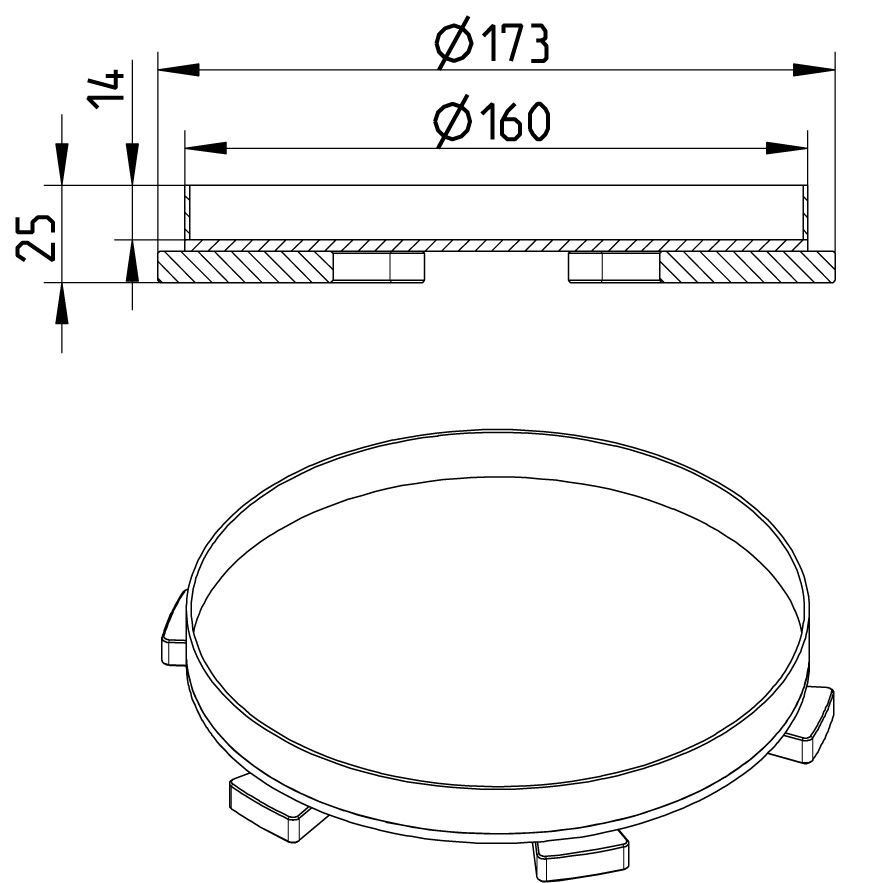

-Grating: Ø173mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (1000) |
| Load class EN1253(lbs) | L15 (2205) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Number of Screws | 0 |
| Shape | Round |
| Size (Inch) | Ø7⅝ |
| Size (mm) | Ø195 |
| Weight (kg) | 0,69 |
| Weight (lbs) | 1,52 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
