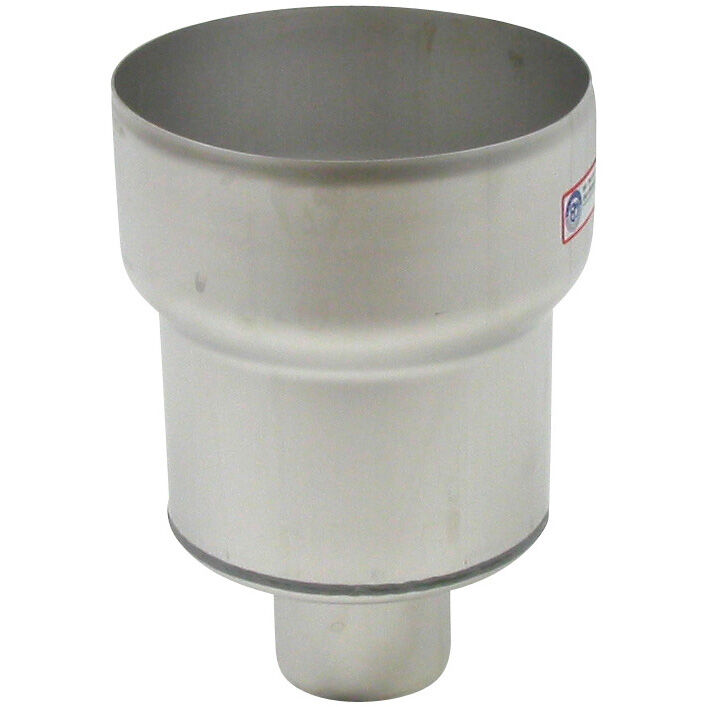

LOWER PART - (760.002.075 S)
×
![]()
Part Of the Series: Lower part-160
Type no.: 760.002.075 S
EAN no.: 5705499109276
LVI no.: 3303758
LOWER PART
-No membrane flange
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 267 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,16 |
| Weight (lbs) | 2,56 |
-
Downloads

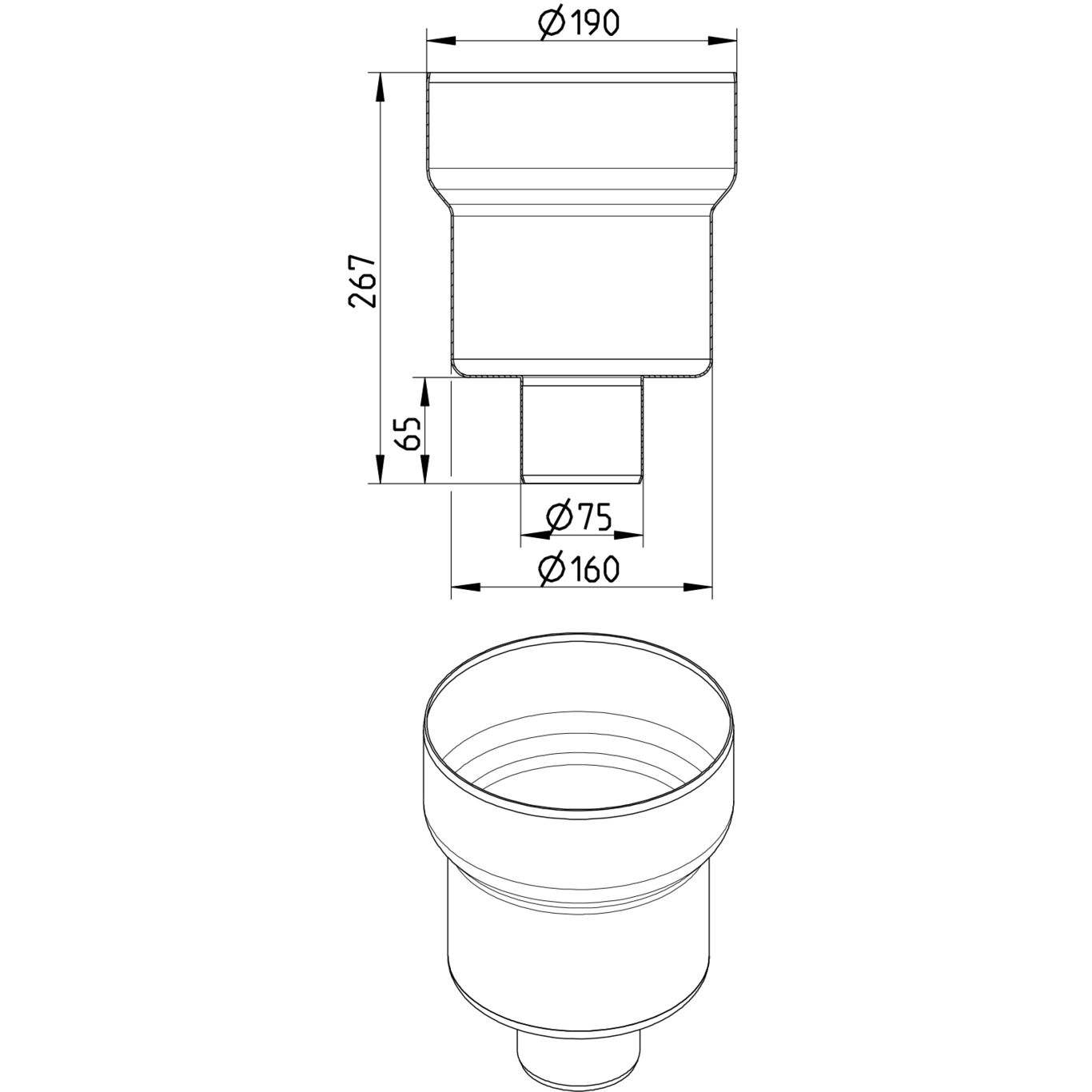

- DWG - 760.002.075
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Channels
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Kitchen Channels
- Installation heights - Lower parts combined with Upper Parts with Square or Circular Top with 200-300mm Frame size
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
