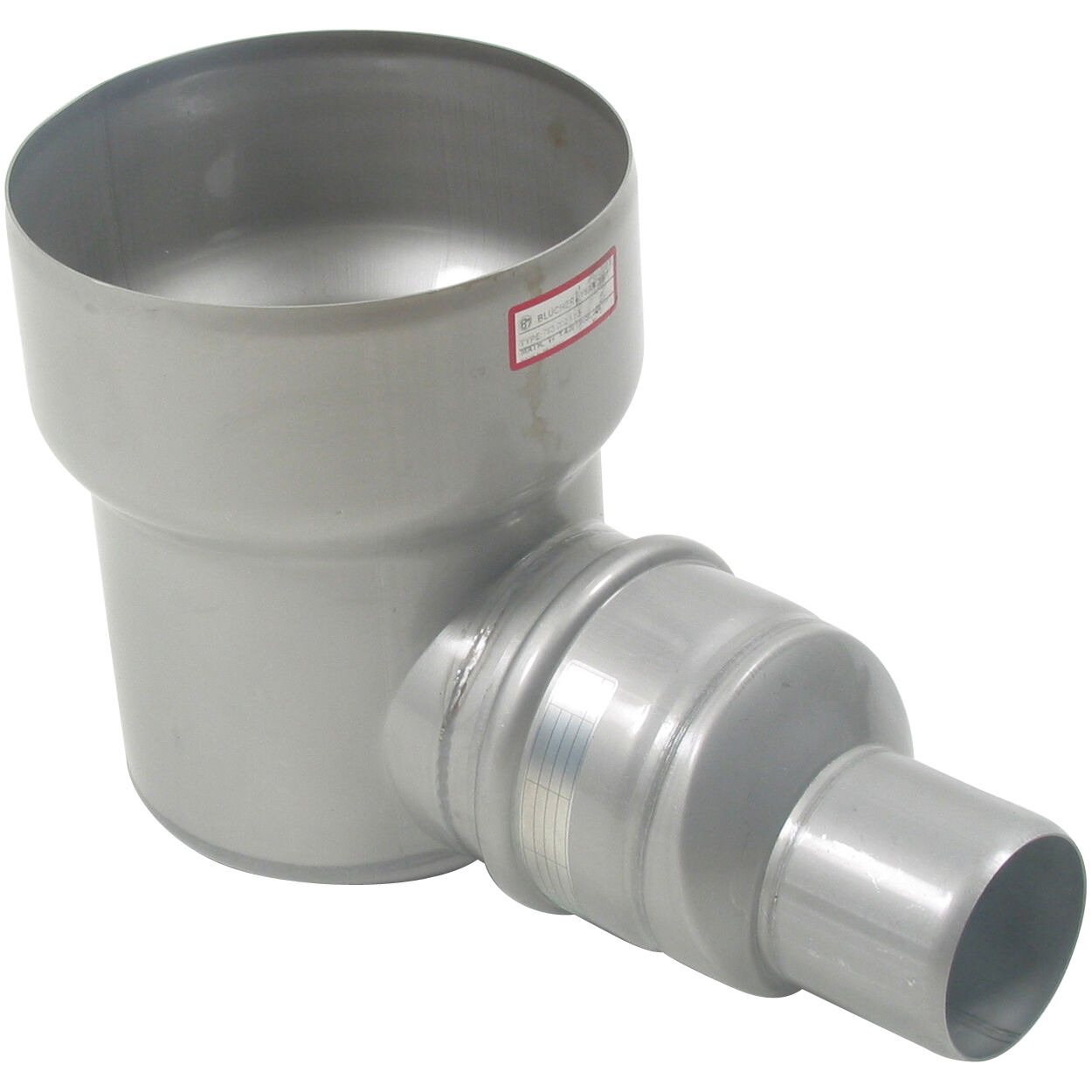

LOWER PART - (763.002.075 S)
×
![]()
Part Of the Series: Lower part-160
Type no.: 763.002.075 S
EAN no.: 5705499109832
LVI no.: 3303766
LOWER PART
-No membrane flange
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 212 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Weight (kg) | 2,20 |
| Weight (lbs) | 4,85 |
-
Downloads

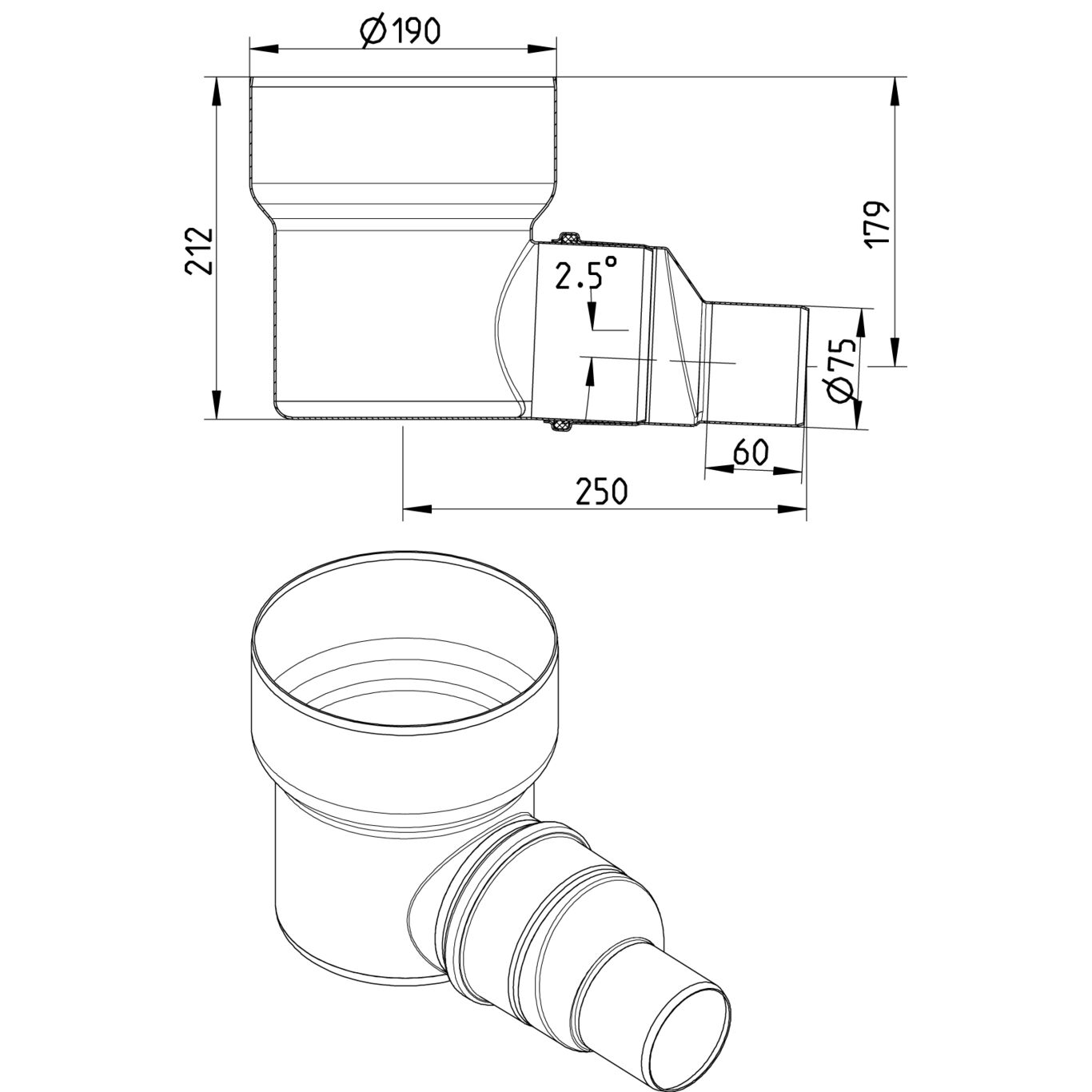

- DWG - 763.002.075
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Channels
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Kitchen Channels
- Installation heights - Lower parts combined with Upper Parts with Square or Circular Top with 200-300mm Frame size
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
