REMOVABLE WATER TRAP - (562.002.000 S)
×
![]()
Part Of the Series: Water trap-160
Type no.: 562.002.000 S
EAN no.: 5705499107968
VVS no.: 153019520
RSK no.: 7121861
NRF no.: 3396305
LVI no.: 3304015
REMOVABLE WATER TRAP

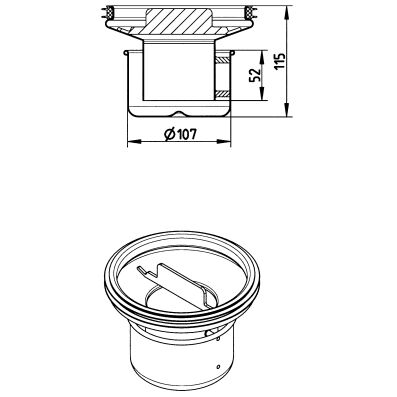

-Water seal height = 52mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 3.3 |
| Minimum Height (mm) | 115 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 157 |
| Water Seal Height (mm) | 52 |
| Weight (kg) | 0,71 |
| Weight (lbs) | 1,57 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
