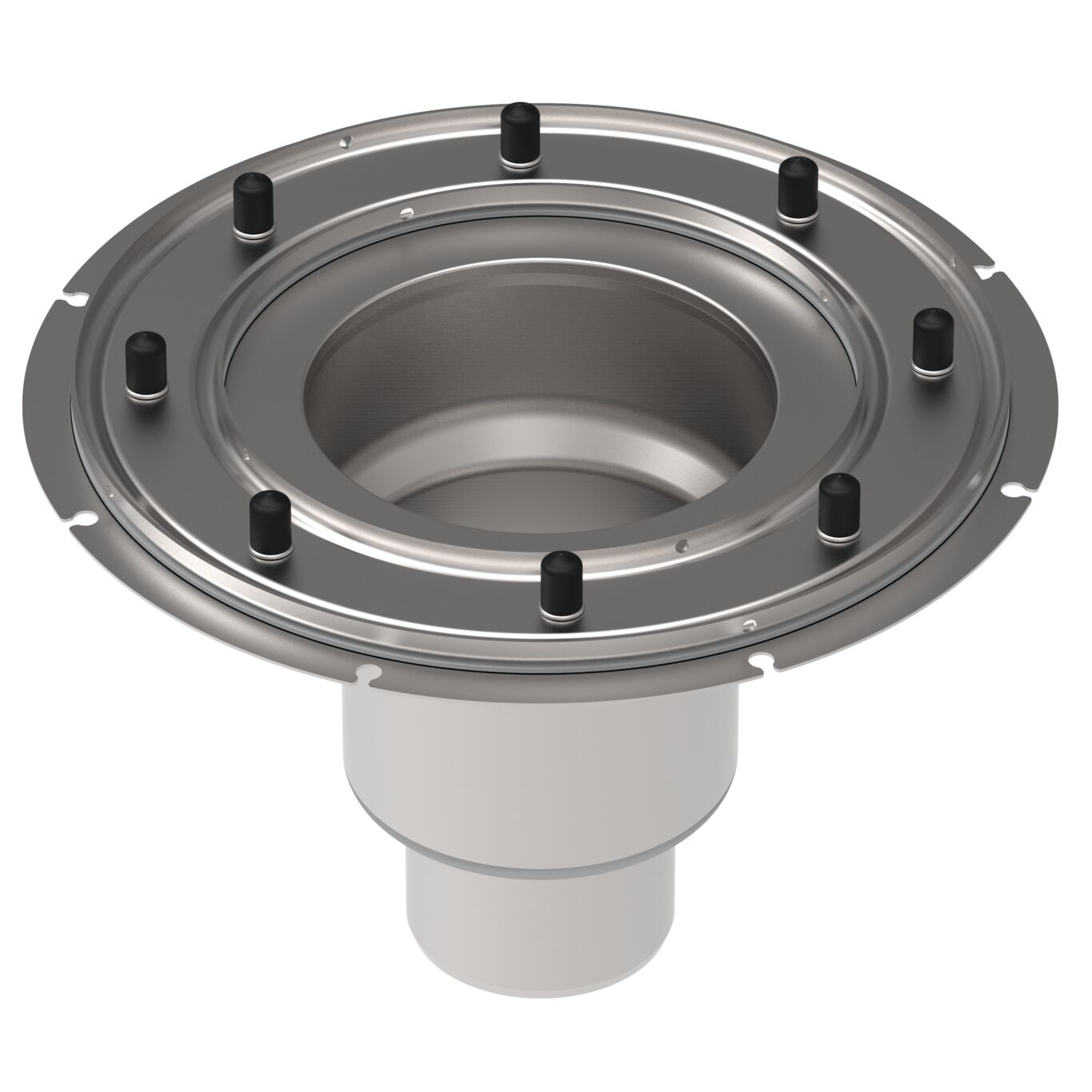

LOWER PART - (775.002.110 S)
Part Of the Series: Lower part-160
Type no.: 775.002.110 S
EAN no.: 5705499112603
VVS no.: 153008176
LVI no.: 3303800
LOWER PART
-Sheet membrane flange
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | Sheet Membrane |
Minimum Height (mm) | 278 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Weight (kg) | 4,42 |
Weight (lbs) | 9,74 |
-
Downloads

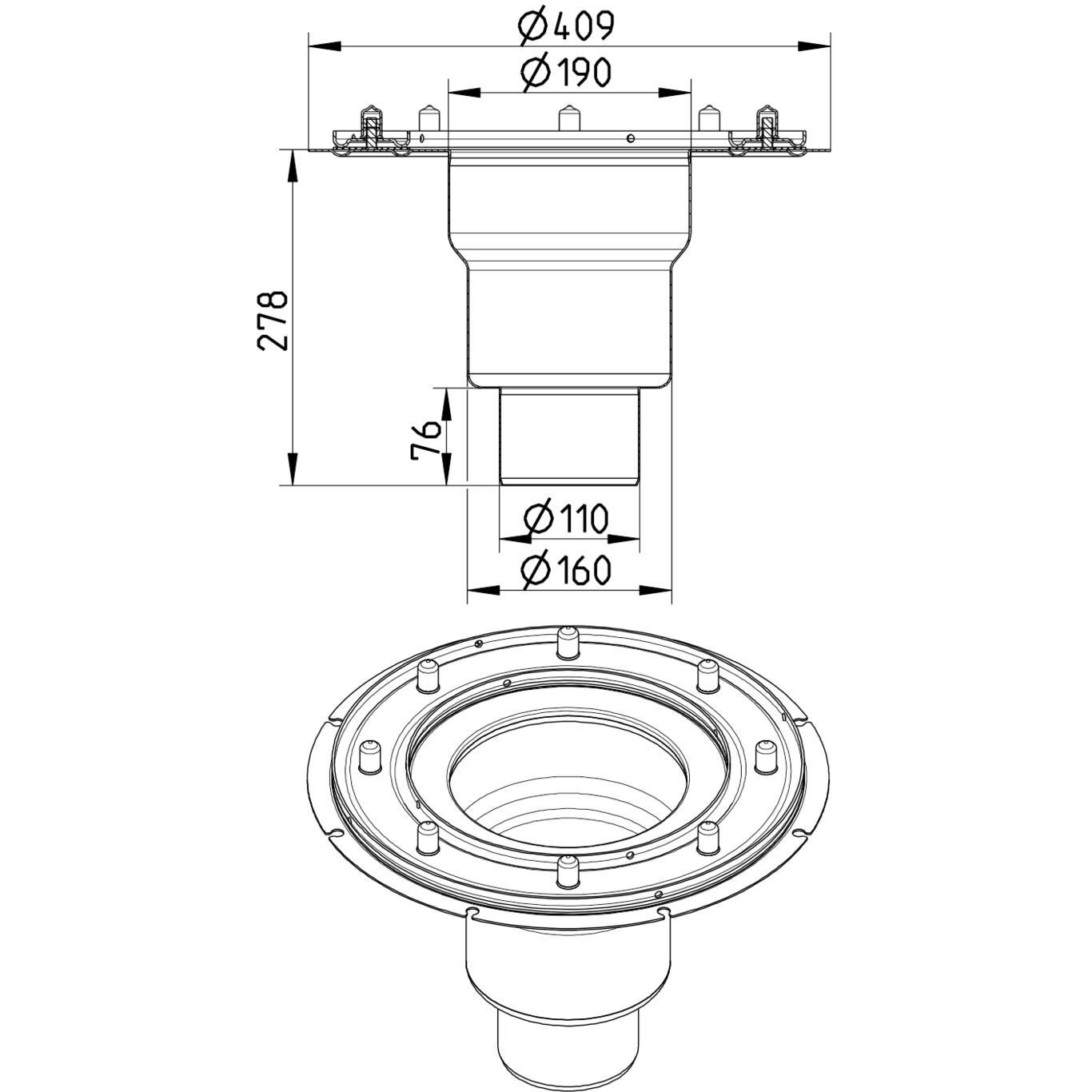

- DWG - 775.002.110
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Channels
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Kitchen Channels
- Installation heights - Lower parts combined with Upper Parts with Square or Circular Top with 200-300mm Frame size
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
