CHANNEL 200x1000 END OUTLET - (672DK010-00BA)
×
![]()
Part Of the Series: Channel-Vinyl
Type no.: 672DK010-00BA
EAN no.: 5705499124835
NRF no.: 3397105
LVI no.: 3304816
Size: 200x1000

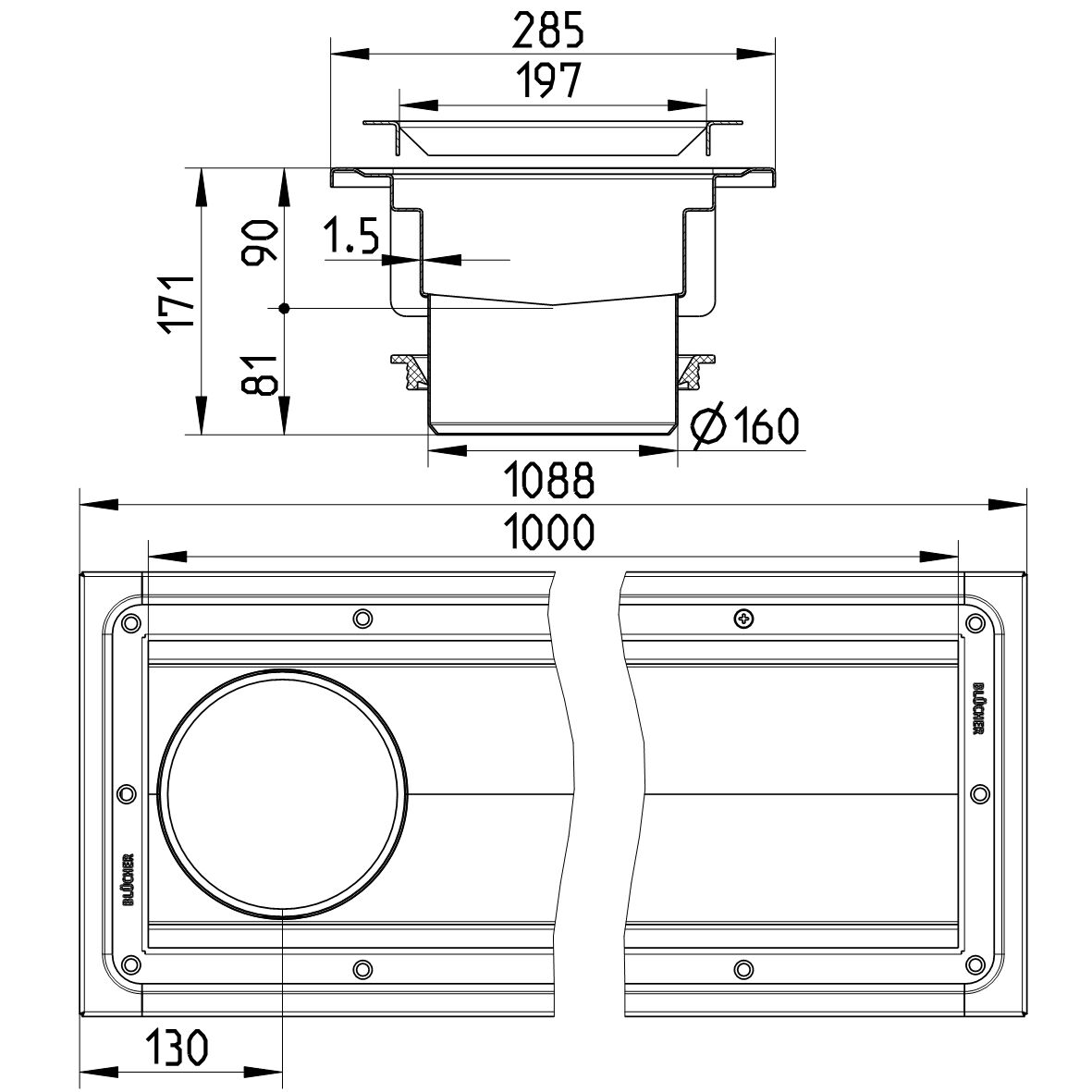

CHANNEL 200x1000 END OUTLET
-Floor: vinyl
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 170 |
| Outlet Box | No |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 7⅞x39⅜ |
| Size (mm) | 200x1000 |
| Weight (kg) | 8,03 |
| Weight (lbs) | 17,7 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
