LADDER GRATING CHANNEL - (697.225.200.50)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.225.200.50
EAN no.: 5705499128659
NRF no.: 3397178
Size: 200x500
LADDER GRATING CHANNEL
-8mm material and fully welded

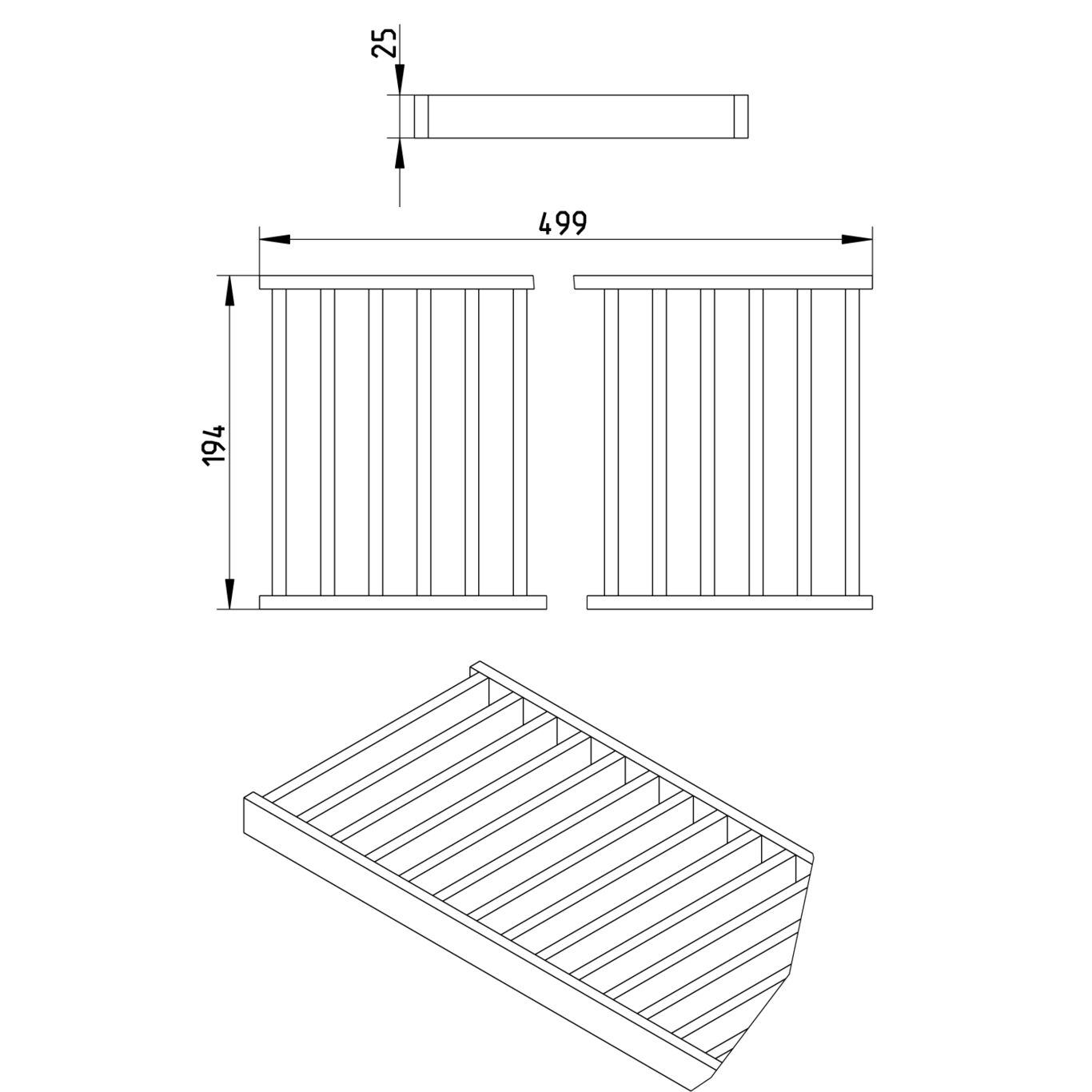

-Grating: 194x499mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load class ASME A112.6.3 (lbs) | Special Duty (10,520) |
| Load Class EN1253 | N250 |
| Load Class EN1253 (kg) | N250 (20000) |
| Load class EN1253(lbs) | N250 (44092) |
| Load Class EN1433 | C250 |
| Load Class EN1433 (kg) | C250 (20.000) |
| Load class EN1433(lbs) | C250 (44092) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 7⅞x19⅝ |
| Size (mm) | 200x500 |
| Weight (kg) | 6,63 |
| Weight (lbs) | 14,62 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
