SHOWER GRATING CHANNEL - (697.015.200.99)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.015.200.99
EAN no.: 5705499124538
NRF no.: 3397157
LVI no.: 3304988
Size: 200x1000
SHOWER GRATING CHANNEL

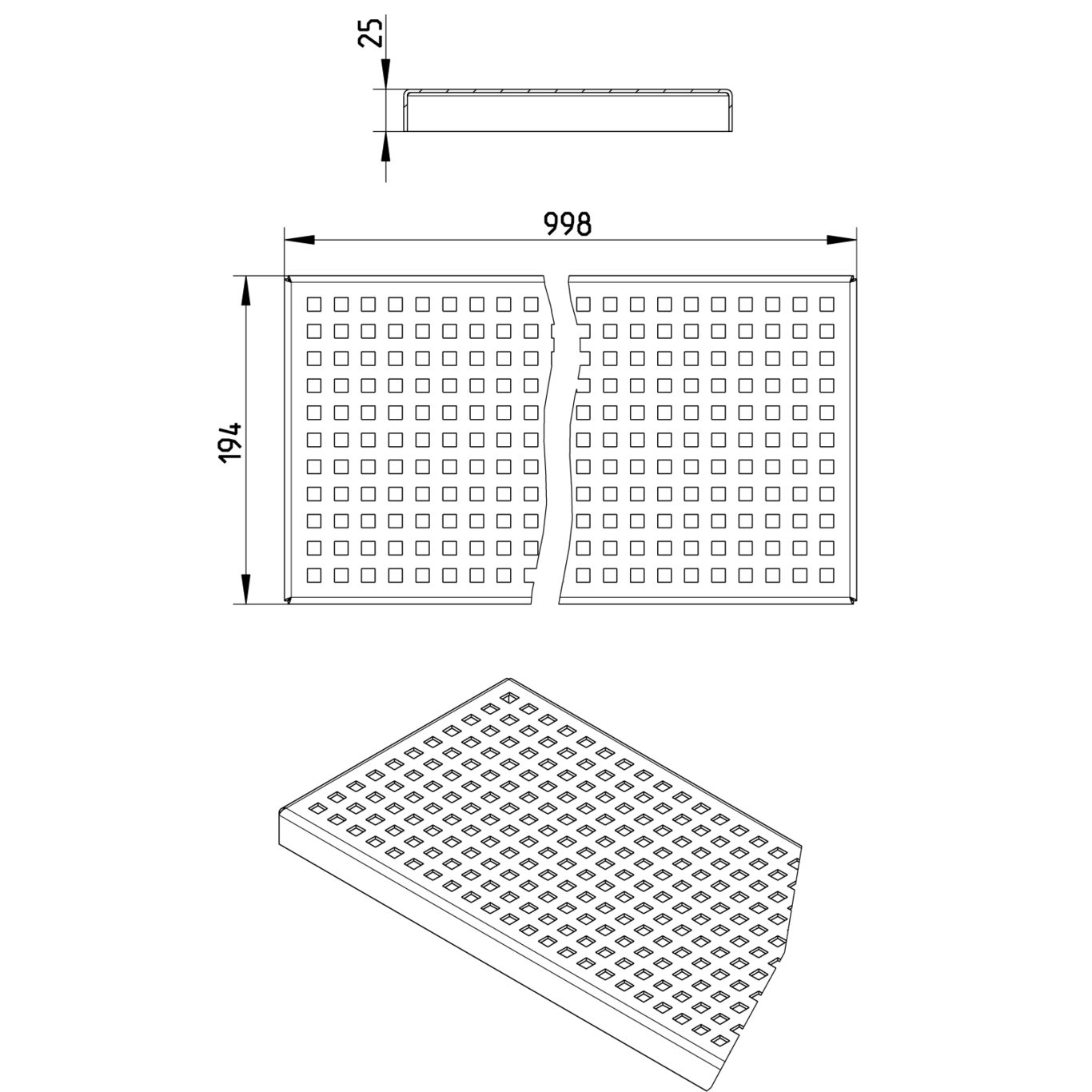

-Grating: 194x998mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 (400) |
| Load class EN1253(lbs) | K3 (882) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 7⅞x39⅜ |
| Size (mm) | 200x1000 |
| Weight (kg) | 3,40 |
| Weight (lbs) | 7,5 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
