SLOT GRATING CHANNEL - (697.200.200.99)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.200.200.99
EAN no.: 5705499115529
NRF no.: 3397174
Size: 200x1000
SLOT GRATING CHANNEL

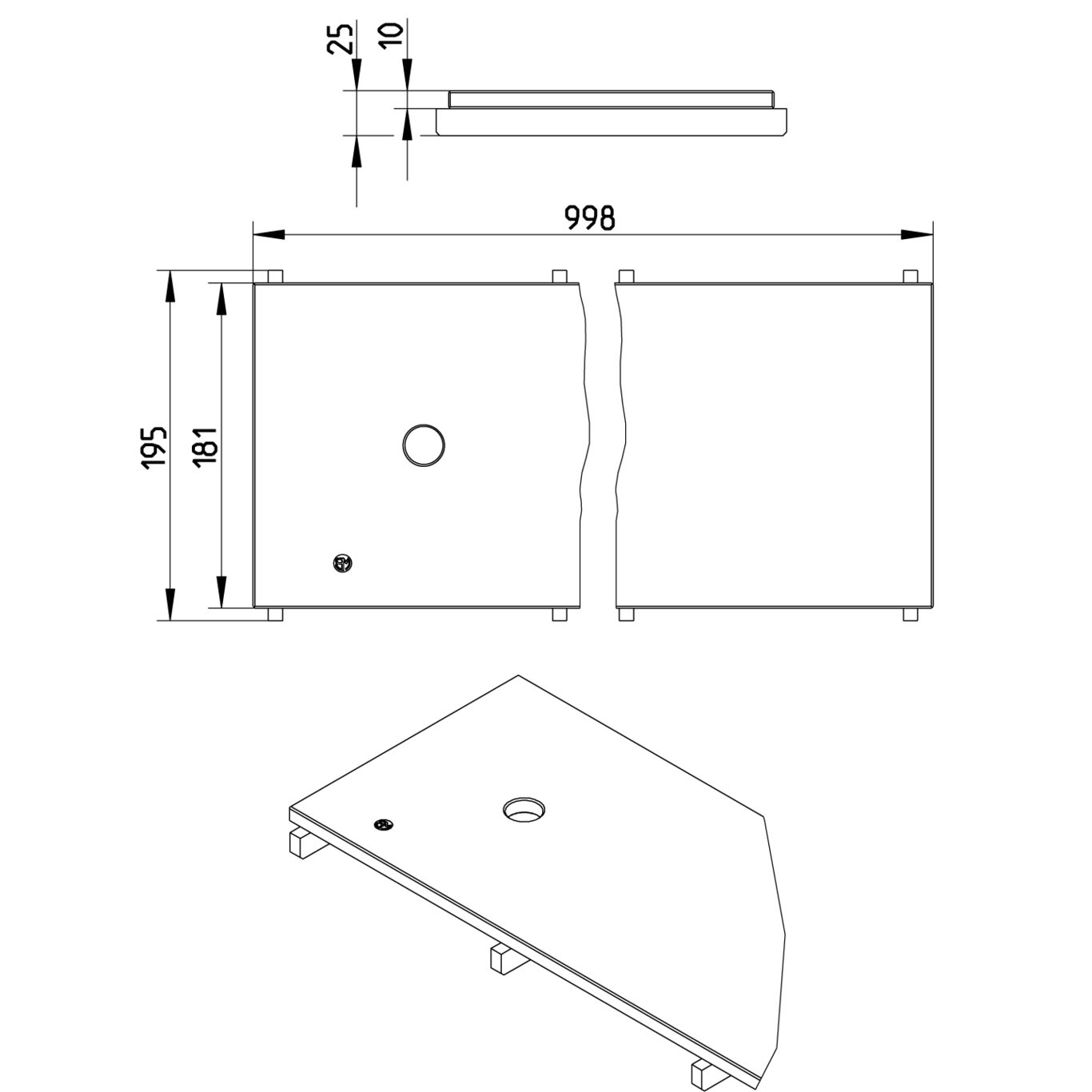

-Grating: 195x998mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load class ASME A112.6.3 (lbs) | Special Duty (10,501) |
| Load Class EN1253 | N250 |
| Load Class EN1253 (kg) | N250 (20000) |
| Load class EN1253(lbs) | N250 (44092) |
| Load Class EN1433 | B125 |
| Load Class EN1433 (kg) | B125 (8.333) |
| Load class EN1433(lbs) | B125 (18371) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 7⅞x39⅜ |
| Size (mm) | 200x1000 |
| Weight (kg) | 14,72 |
| Weight (lbs) | 32,45 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
