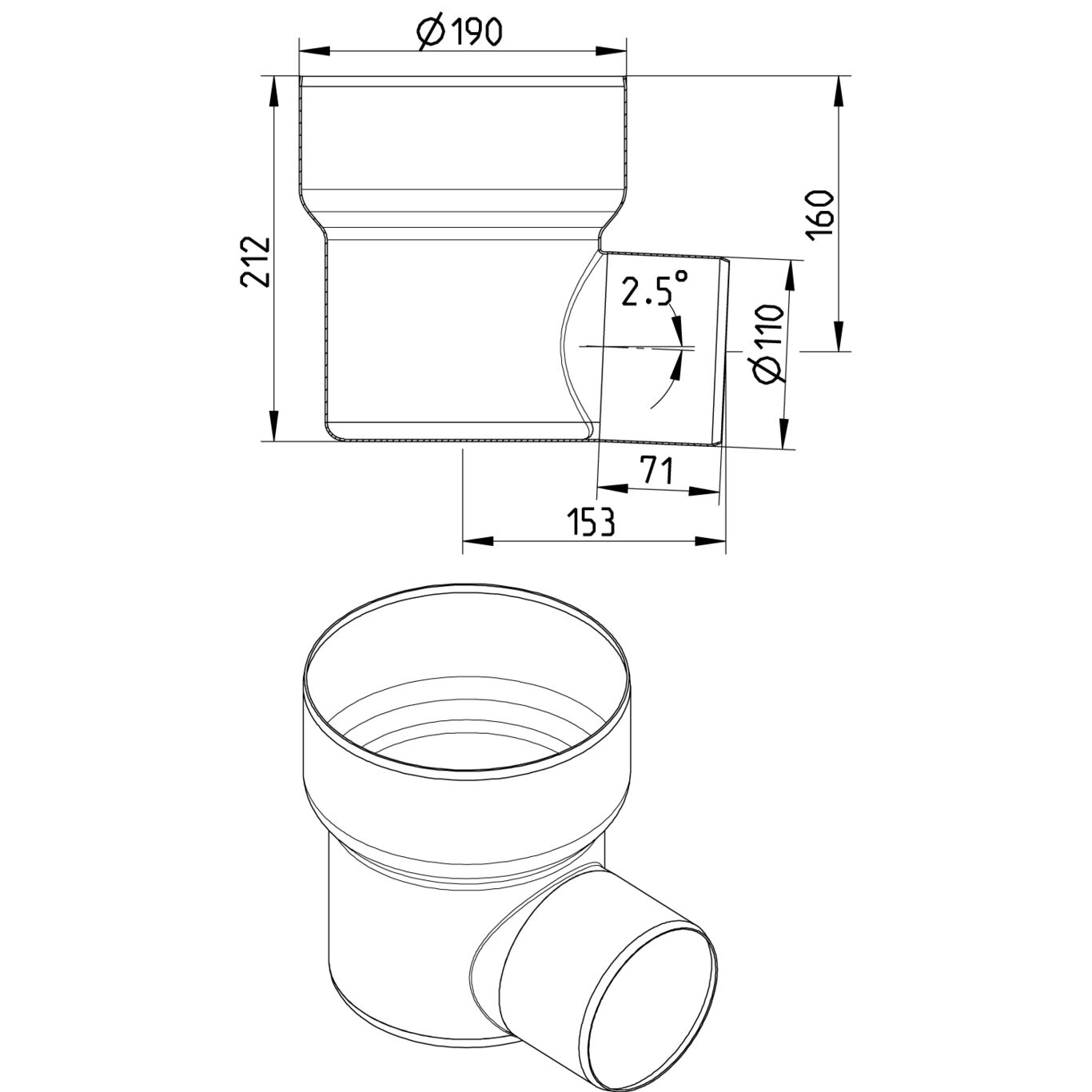

LOWER PART - (763.002.110)
×
![]()
Part Of the Series: Lower part-160
Type no.: 763.002.110
EAN no.: 5705499109849
RSK no.: 7121873
NRF no.: 3396328
LVI no.: 3303767
LOWER PART
-No membrane flange
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 212 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,65 |
| Weight (lbs) | 3,64 |
-
Downloads
- DWG - 763.002.110
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Channels
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Kitchen Channels
- Installation heights - Lower parts combined with Upper Parts with Square or Circular Top with 200-300mm Frame size
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
