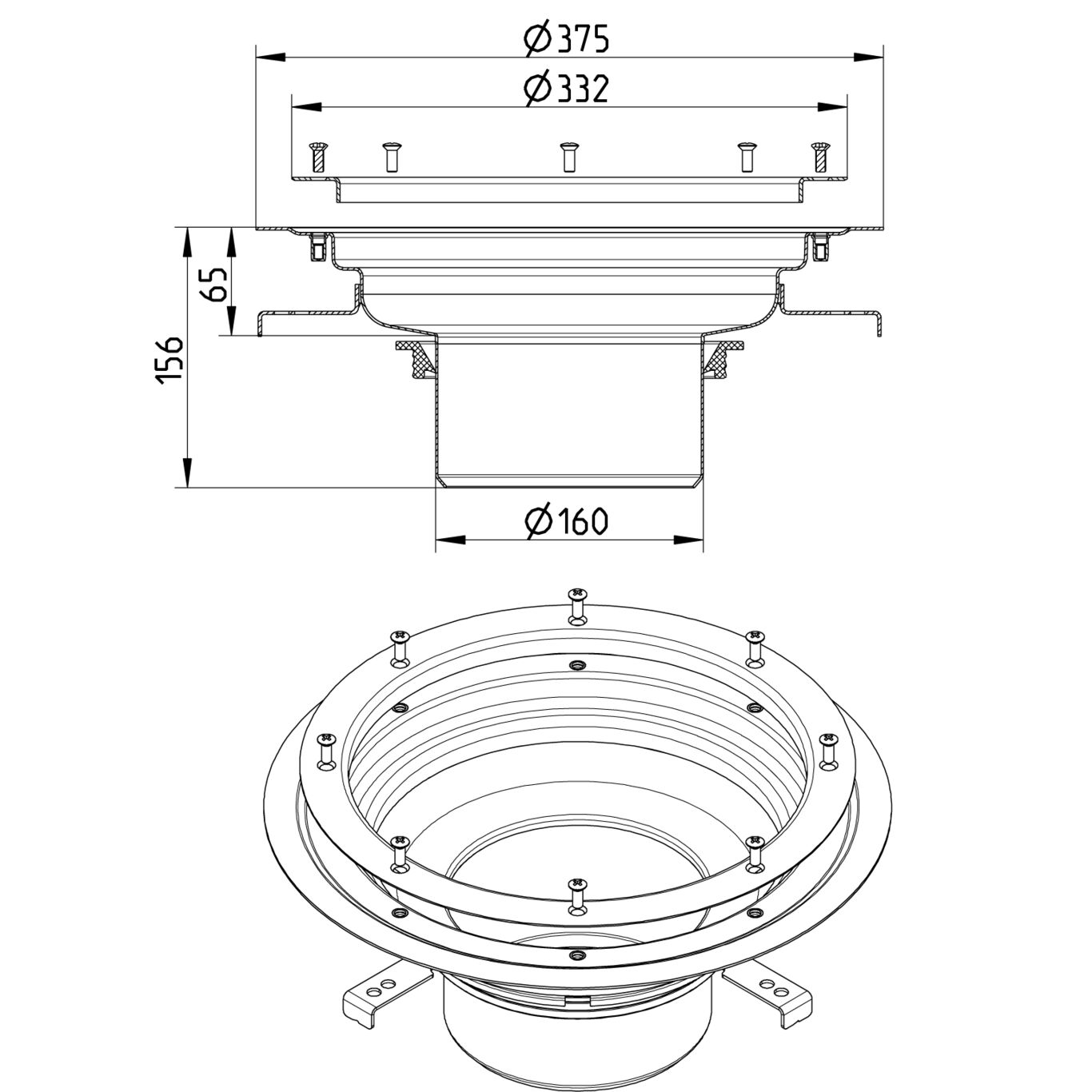

UPPER PART - (710.603.000)
×
![]()
Part Of the Series: Upper part-Vinyl-332
Type no.: 710.603.000
EAN no.: 5705499108460
RSK no.: 7123993
NRF no.: 3396435
LVI no.: 3303819
Size: Ø332
UPPER PART
-With supporting ring for water trap
-Floor: vinyl
-Frame: Ø332mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 156 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Shape | Round |
| Size (Inch) | Ø13⅛ |
| Size (mm) | Ø332 |
| Weight (kg) | 5,43 |
| Weight (lbs) | 11,97 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
