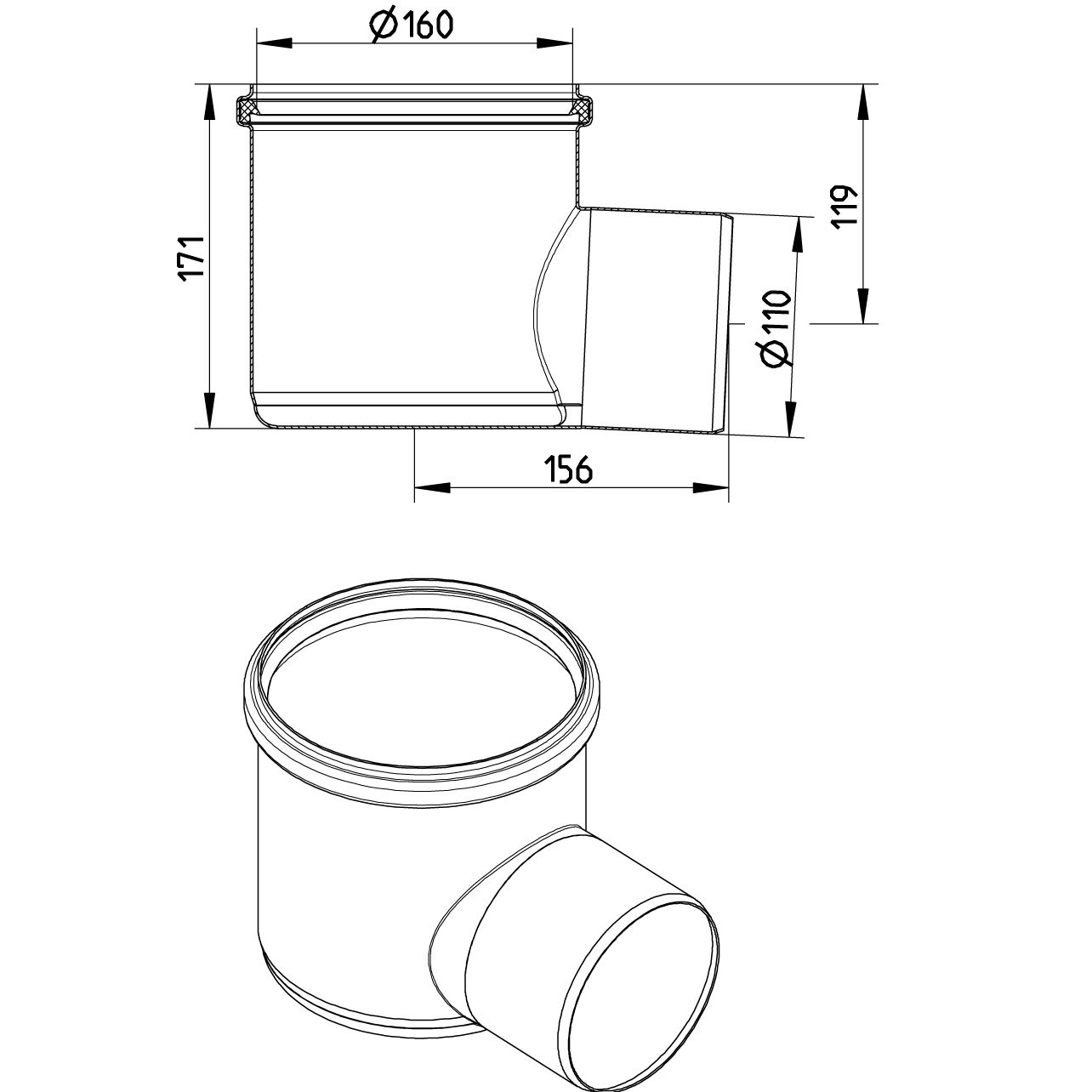

LOWER PART, LOW - (763.042.110)
×
![]()
Part Of the Series: Lower part-160
Type no.: 763.042.110
EAN no.: 5705499131925
RSK no.: 7122087
NRF no.: 3397188
LVI no.: 3303728
LOWER PART, LOW
-No membrane flange
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 171 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,30 |
| Weight (lbs) | 2,87 |
-
Downloads
- DWG - 763.042.110
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Channels
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Kitchen Channels
- Installation heights - Lower parts combined with Upper Parts with Square or Circular Top with 200-300mm Frame size
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
