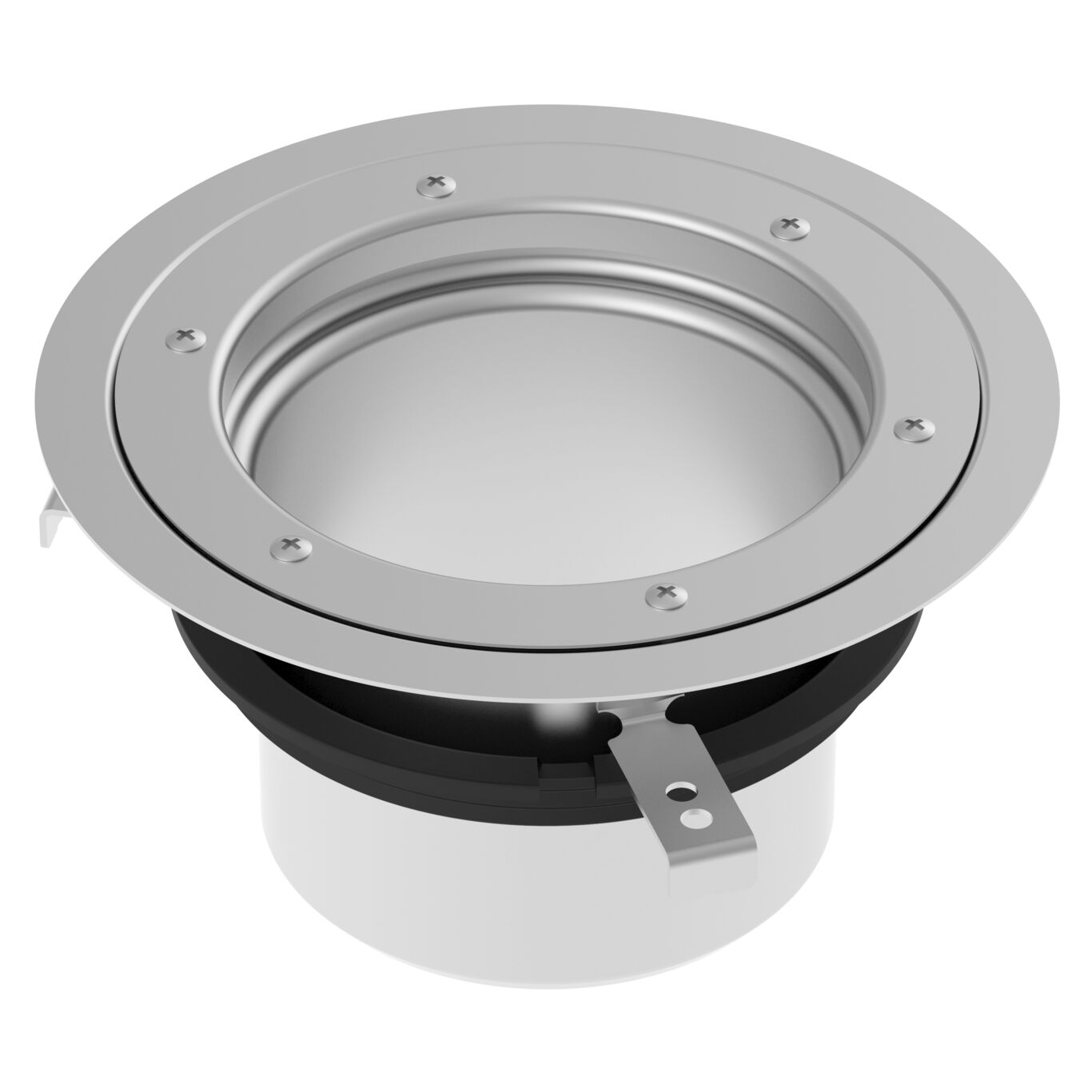

UPPER PART - (774.602.000)
×
![]()
Part Of the Series: Upper part-Vinyl-232
Type no.: 774.602.000
EAN no.: 5705499112498
RSK no.: 7123992
NRF no.: 3396426
LVI no.: 3303846

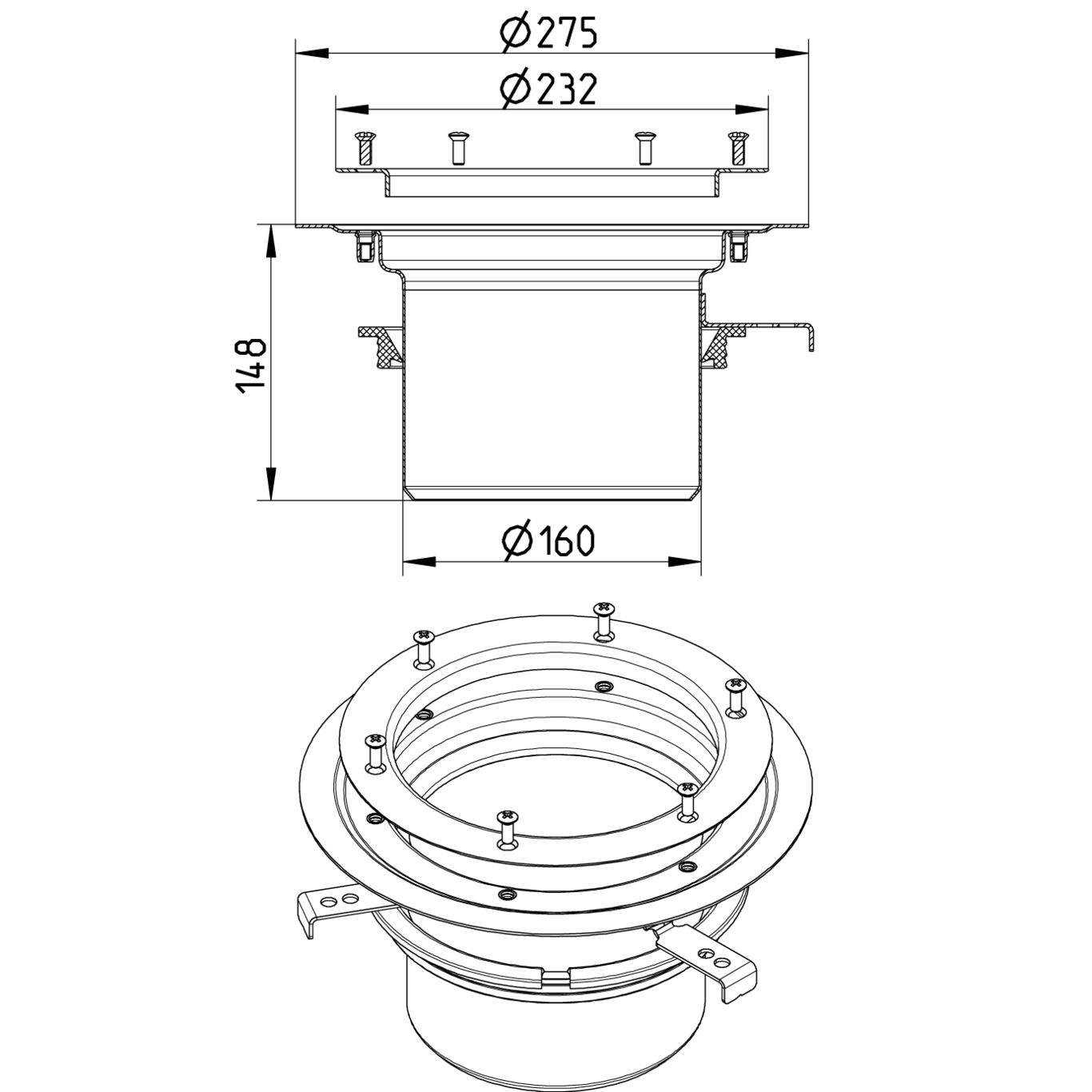

Size: Ø232
UPPER PART
-Floor: vinyl
-Frame: Ø232mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 148 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Shape | Round |
| Size (Inch) | Ø9⅛ |
| Size (mm) | Ø232 |
| Weight (kg) | 2,02 |
| Weight (lbs) | 4,45 |
-
