HYGIENICPRO GRATING CIRCLE - (790.173.000.60)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.60
EAN no.: 5705499128345
RSK no.: 7120427
NRF no.: 3395172
LVI no.: 3304062
Size: Ø195

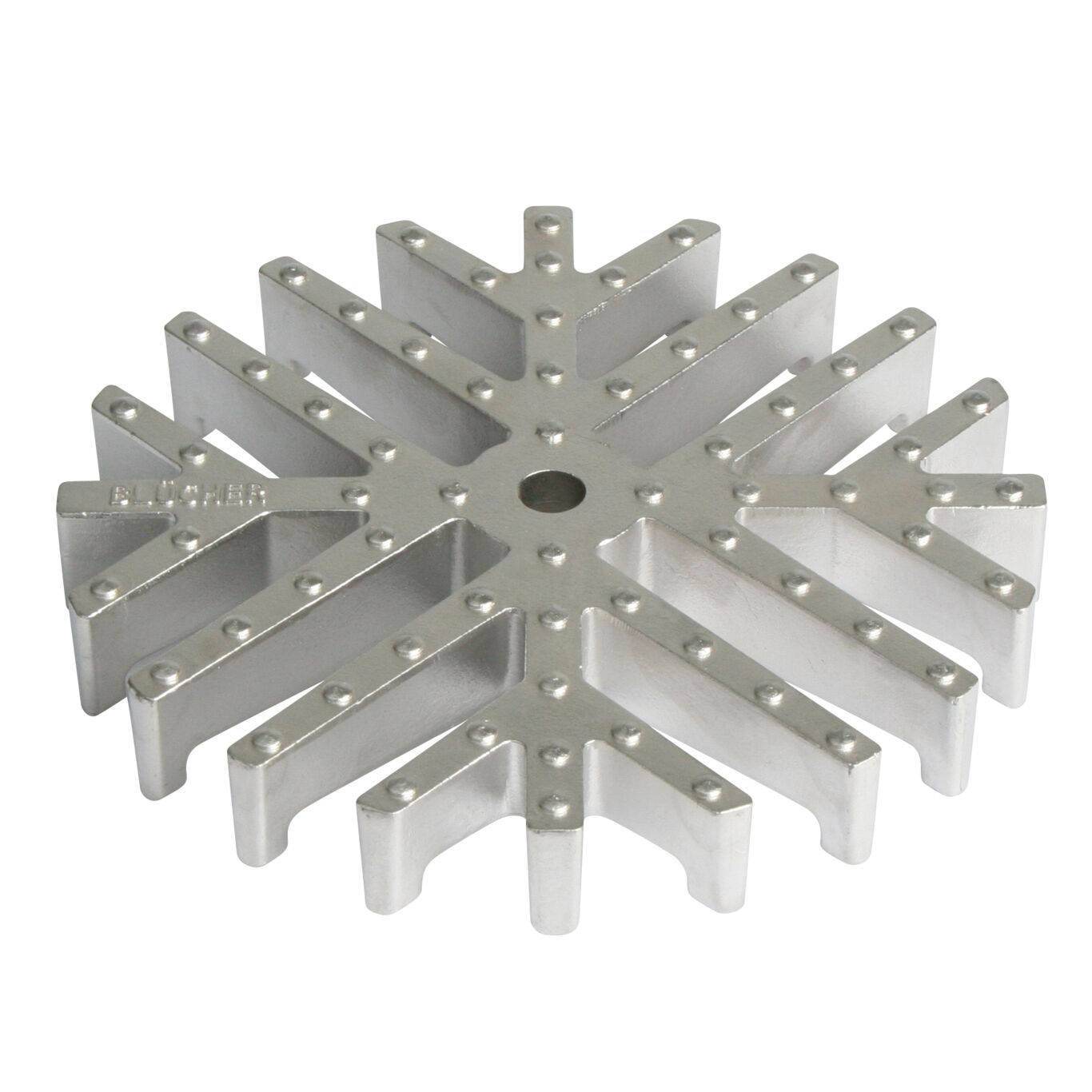

HYGIENICPRO GRATING CIRCLE
-Grating: Ø173mm
-Stainless steel: AISI304C/EN1.4308
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (8333) |
| Load class EN1253(lbs) | M125 (18371) |
| Material | AISI 304C |
| Material (EN) | EN 1.4308 |
| Minimum Height (mm) | 24 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Round |
| Size (Inch) | Ø7⅝ |
| Size (mm) | Ø195 |
| Weight (kg) | 1,69 |
| Weight (lbs) | 3,73 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
