P-TRAP 87.5° - (525.090.160 S)
×
![]()
Part Of the Series: Water trap-p
Type no.: 525.090.160 S
EAN no.: 5705499101492
VVS no.: 160381460
RSK no.: 1550394
LVI no.: 3304022

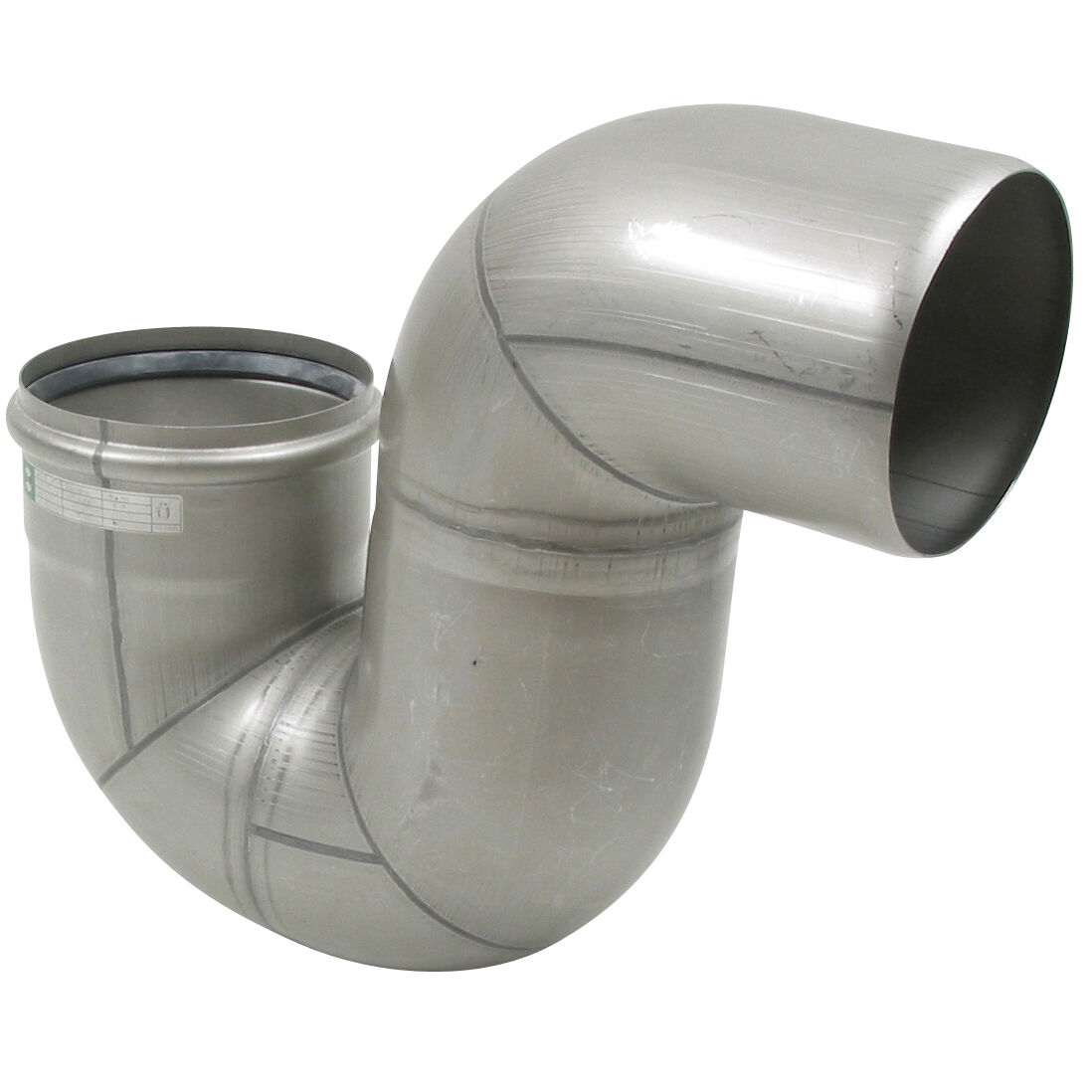

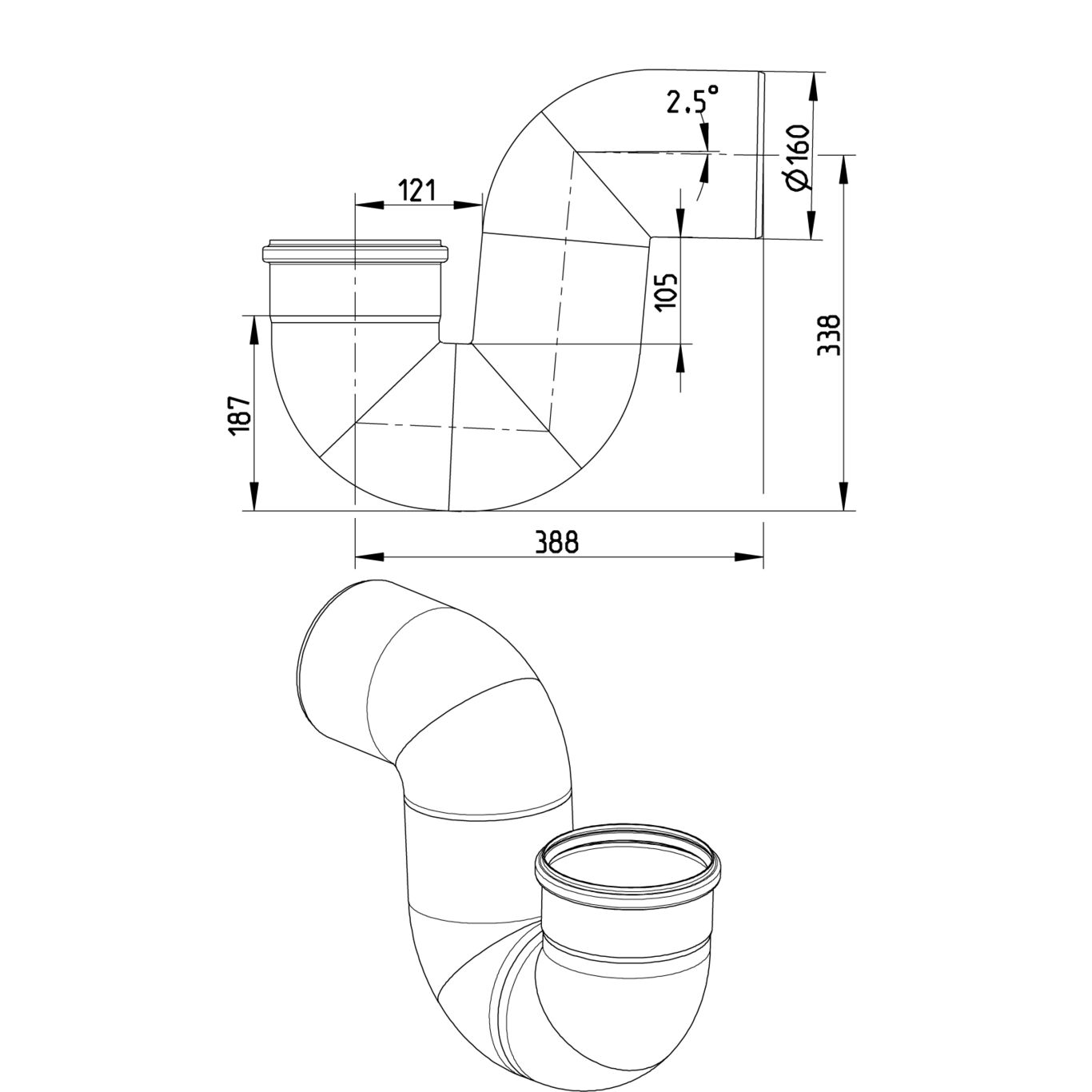

P-TRAP 87.5°
-Diameter: Ø160mm
-Water seal height = 105mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Field of Application | Industrial |
| Length (mm) | 187 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 28.5 |
| Minimum Flow (l/s) | 7.5 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Water Seal Height (mm) | 105 |
| Weight (kg) | 6,22 |
| Weight (lbs) | 13,71 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe
DK VA 2.41/19631 P-Vandlås dim 50, 75, 110, 125, 160mm Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM
