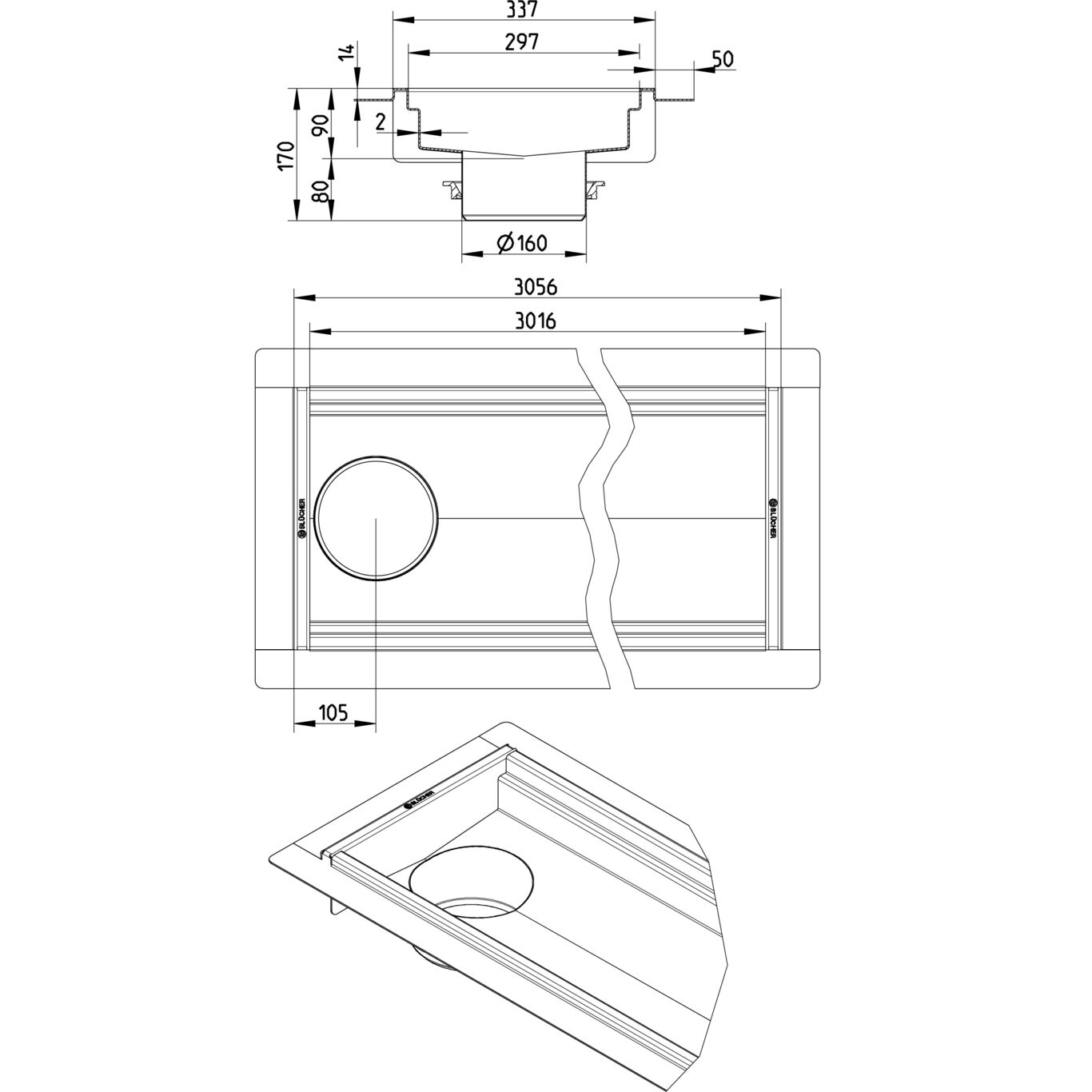

CHANNEL 300x3000 END OUTLET - (674EK030-00BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674EK030-00BA

EAN no.: 5705499131284

Size: 300x3000

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 170
Outlet Box No
Outlet dia. (Inch) 6
Outlet Diameter (mm) 160
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (Inch) 11¾x118⅛
Size (mm) 300x3000
Weight (kg) 30,60
Weight (lbs) 67,46
