HYGIENICPRO GRATING CHANNEL - (697.250.300.50)
×
![]()
Part Of the Series: Grating-Channel-300
Type no.: 697.250.300.50
EAN no.: 5705499133103
NRF no.: 3397185
Size: 300x500
HYGIENICPRO GRATING CHANNEL

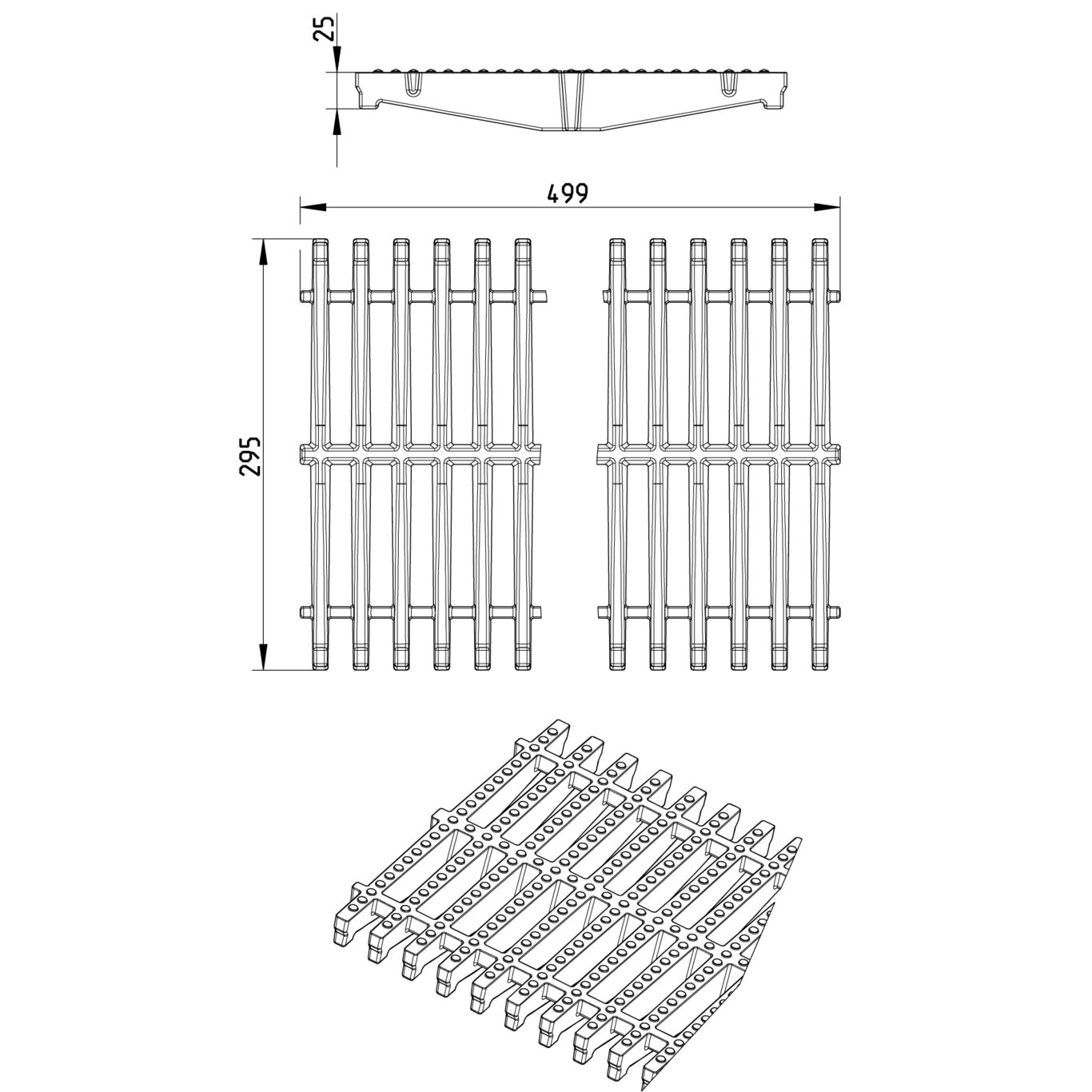

-Grating: 295x499mm
-Stainless steel: AISI304C/EN1.4308
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | N250 |
| Load Class EN1253 (kg) | N250 (20000) |
| Load class EN1253(lbs) | N250 (44092) |
| Load Class EN1433 | C250 |
| Load Class EN1433 (kg) | C250 (20.000) |
| Load class EN1433(lbs) | C250 (44092) |
| Material | AISI 304C |
| Material (EN) | EN 1.4308 |
| Minimum Height (mm) | 40 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 11¾x19⅝ |
| Size (mm) | 300x500 |
| Weight (kg) | 14,43 |
| Weight (lbs) | 31,81 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
