LADDER GRATING CHANNEL - (697.125.300.50)
×
![]()
Part Of the Series: Grating-Channel-300
Type no.: 697.125.300.50
EAN no.: 5705499103540
VVS no.: 154255030
NRF no.: 3397164
Size: 300x500

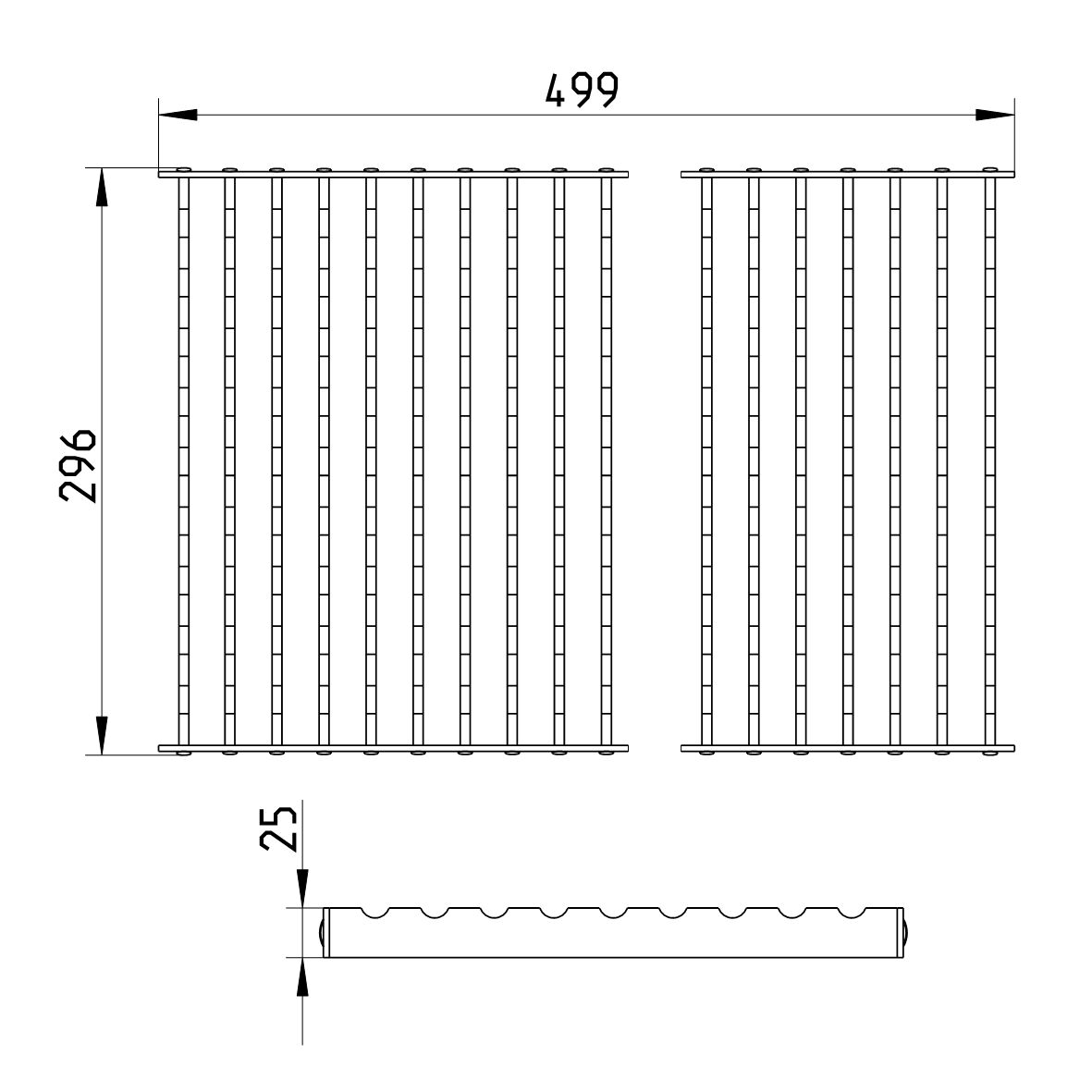

LADDER GRATING CHANNEL
-25mm height
-Grating: 295x499mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (6000) |
| Load class EN1253(lbs) | R50 (13228) |
| Load Class EN1433 | B125 |
| Load Class EN1433 (kg) | B125 (10.000) |
| Load class EN1433(lbs) | B125 (22046) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 11¾x19⅝ |
| Size (mm) | 300x500 |
| Weight (kg) | 6,10 |
| Weight (lbs) | 13,45 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
