ADJUSTABLE LOWER PART MULTI - (250.200.075 V)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 250.200.075 V
EAN no.: 5705499105872
RSK no.: 7119275
NRF no.: 3394887
LVI no.: 3303882

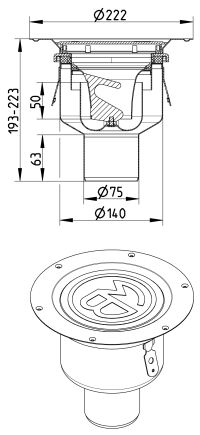

ADJUSTABLE LOWER PART MULTI
-With removable water trap
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 223 |
| Minimum Height (mm) | 193 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 1,60 |
| Weight (lbs) | 3,53 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
