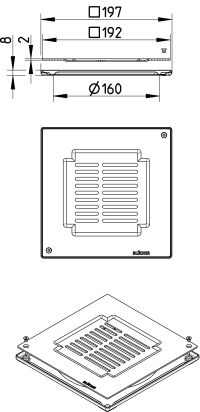

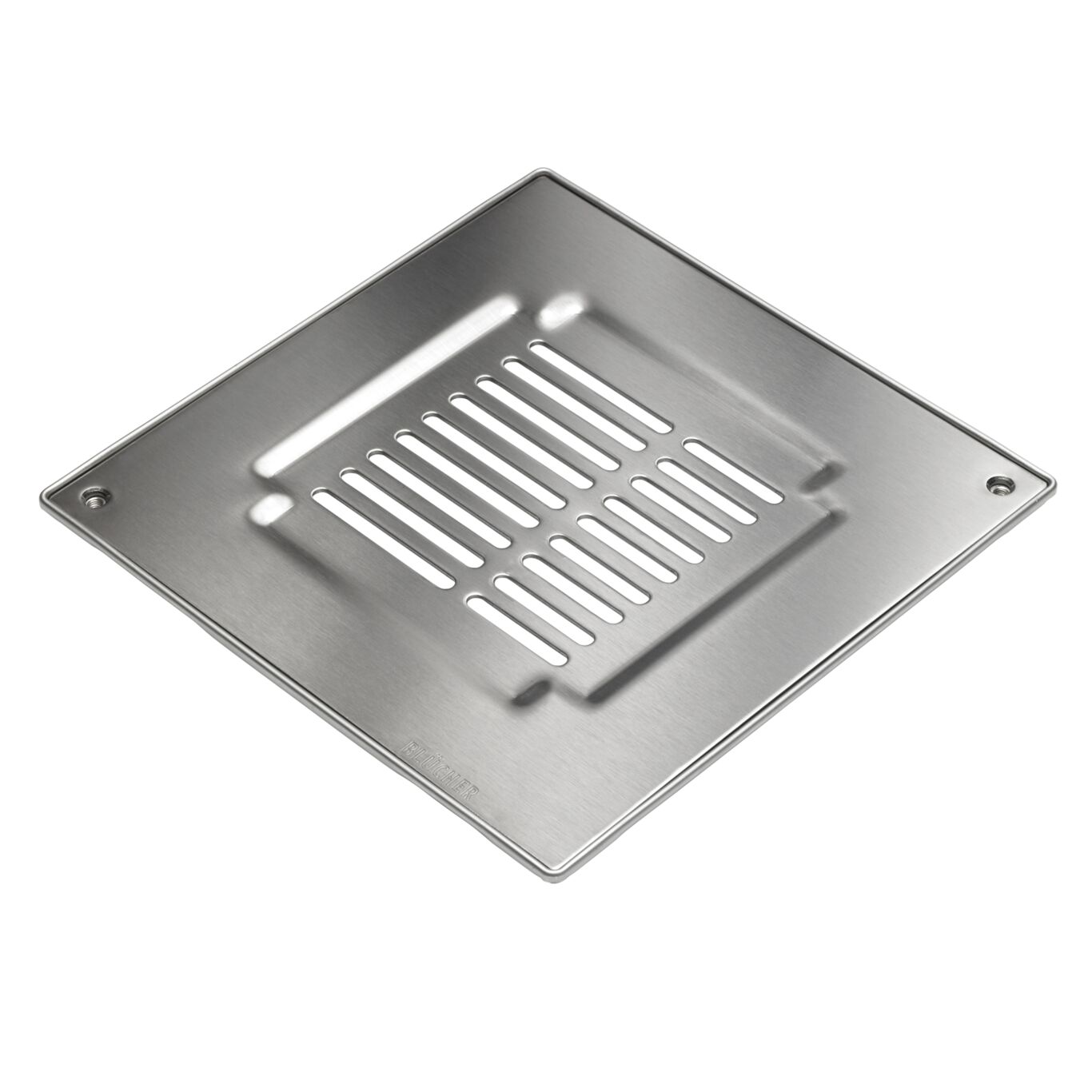

MOUNTING SET SQUARE DETROIT - (650.201.105)
×
![]()
Part Of the Series: MULTI top-200
Type no.: 650.201.105
EAN no.: 5705499127058
RSK no.: 7122058
NRF no.: 3394869
LVI no.: 3304141
Size: 200x200
MOUNTING SET SQUARE DETROIT
-With screw lock, no clamping ring
-Floor: concrete and tiled
-Frame: 197x197mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 8 |
| Number of Screws | 2 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 0,73 |
| Weight (lbs) | 1,61 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
