MOUNTING SET CIRCLE HYGIENIC-PRO - (620.300.043)
×
![]()
Part Of the Series: MULTI top-180
Type no.: 620.300.043
EAN no.: 5705499129304
RSK no.: 7122115
NRF no.: 3394504
LVI no.: 3304145
Size: Ø180

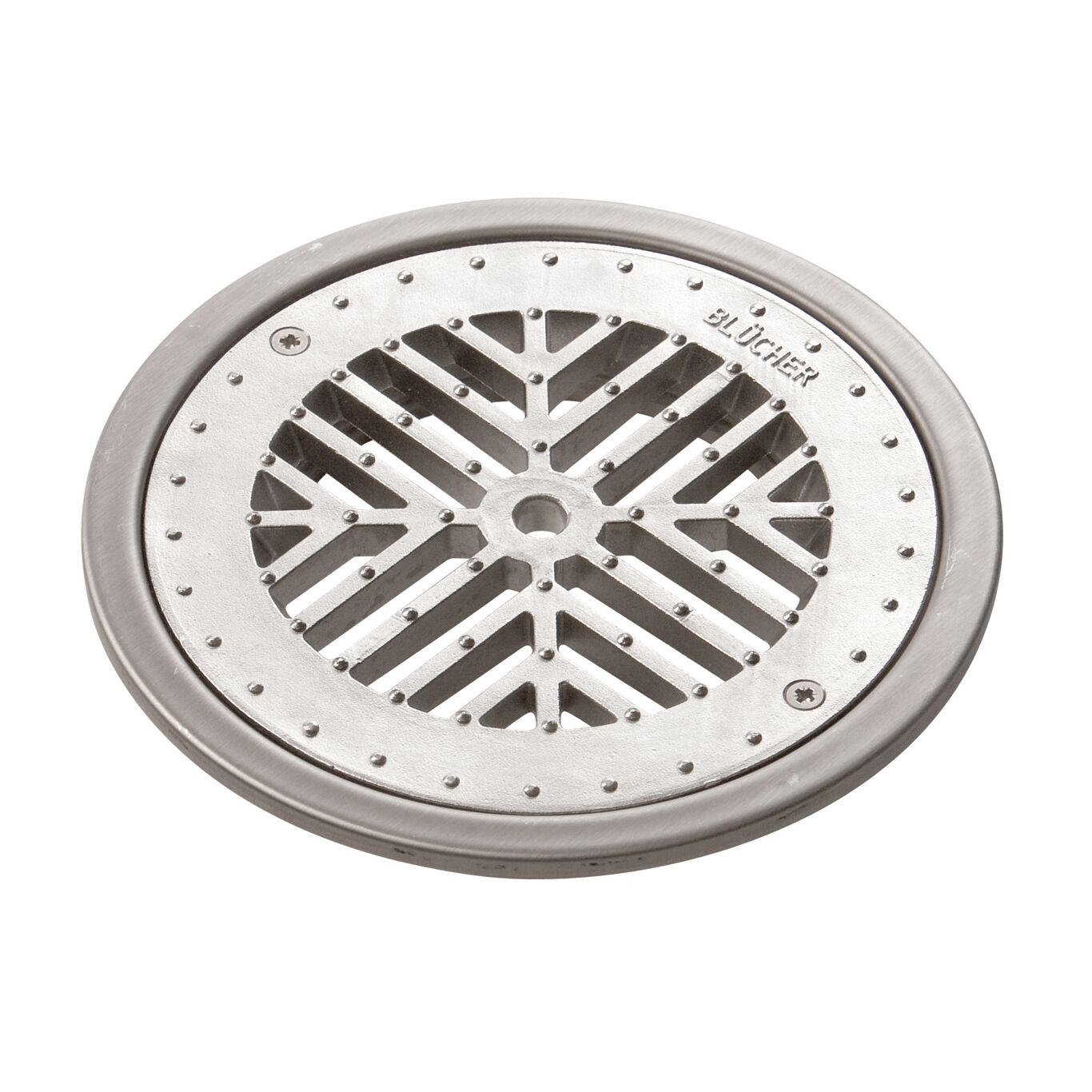

MOUNTING SET CIRCLE HYGIENIC-PRO
-With screw lock and clamping ring
-Frame: 180x180mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Resin |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (3000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Number of Screws | 2 |
| Shape | Round |
| Size (Inch) | Ø7⅛ |
| Size (mm) | Ø180 |
| Weight (kg) | 0,83 |
| Weight (lbs) | 1,83 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
