MOUNTING SET CIRCLE VIENNA CUT C - (620.300.003 C)
×
![]()
Part Of the Series: MULTI top-Vinyl-155
Type no.: 620.300.003 C
EAN no.: 5705499107746
RSK no.: 7120103
LVI no.: 3304144
Size: Ø155

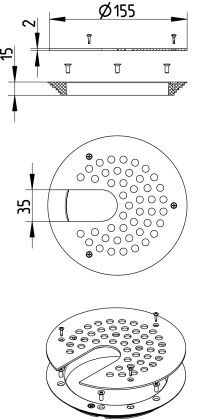

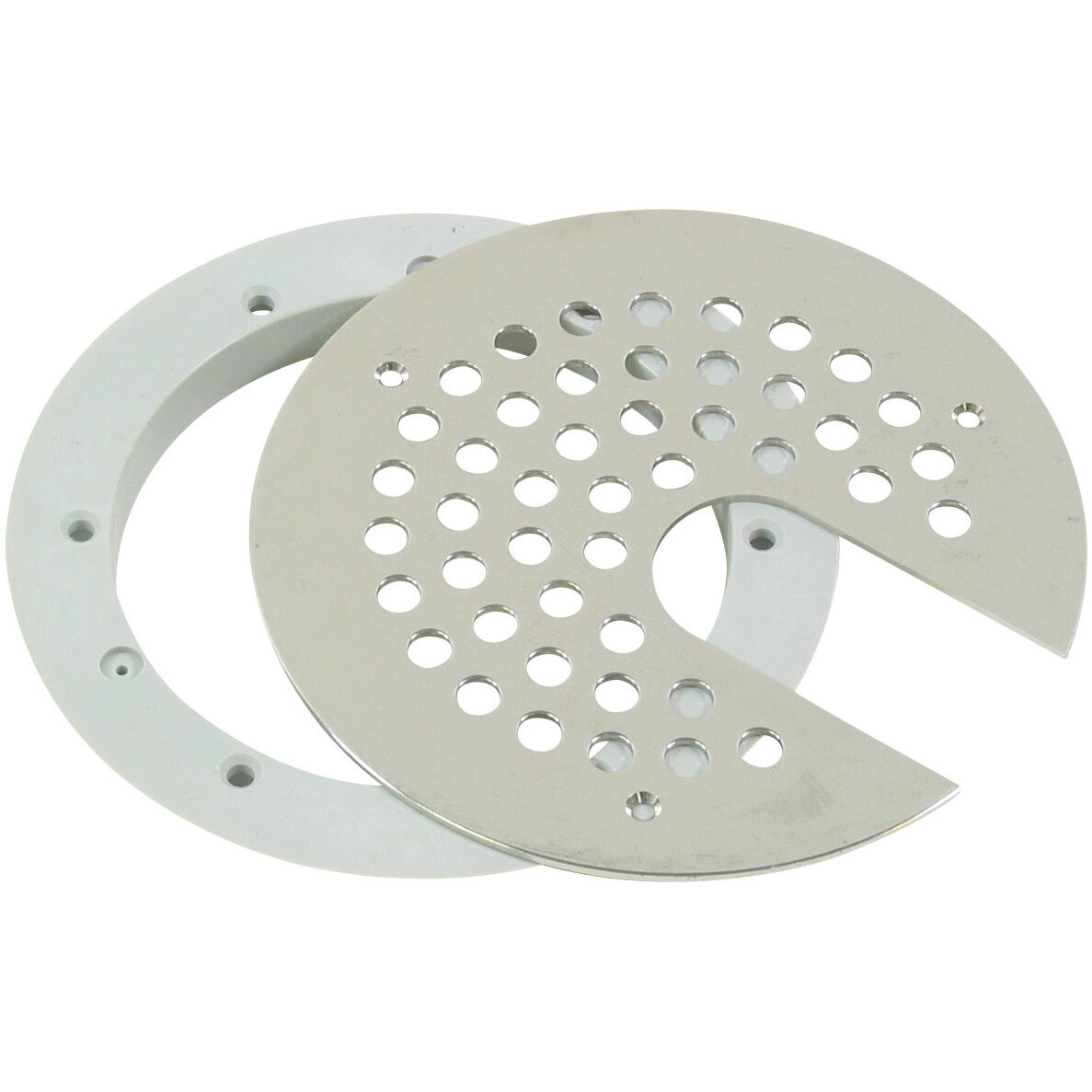

MOUNTING SET CIRCLE VIENNA CUT C
-With screw lock and clamping ring
-Floor: vinyl
-Grating: Ø155mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 15 |
| Number of Screws | 3 |
| Shape | Round |
| Size (Inch) | Ø6⅛ |
| Size (mm) | Ø155 |
| Weight (kg) | 0,32 |
| Weight (lbs) | 0,71 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
