MOUNTING SET LINE TOKYO 1000 - (650.350.100)
×
![]()
Part Of the Series: MULTI top-Channel
Type no.: 650.350.100
EAN no.: 5705499135428
RSK no.: 7129526
NRF no.: 3394349
LVI no.: 3304188
Size: 130x1000

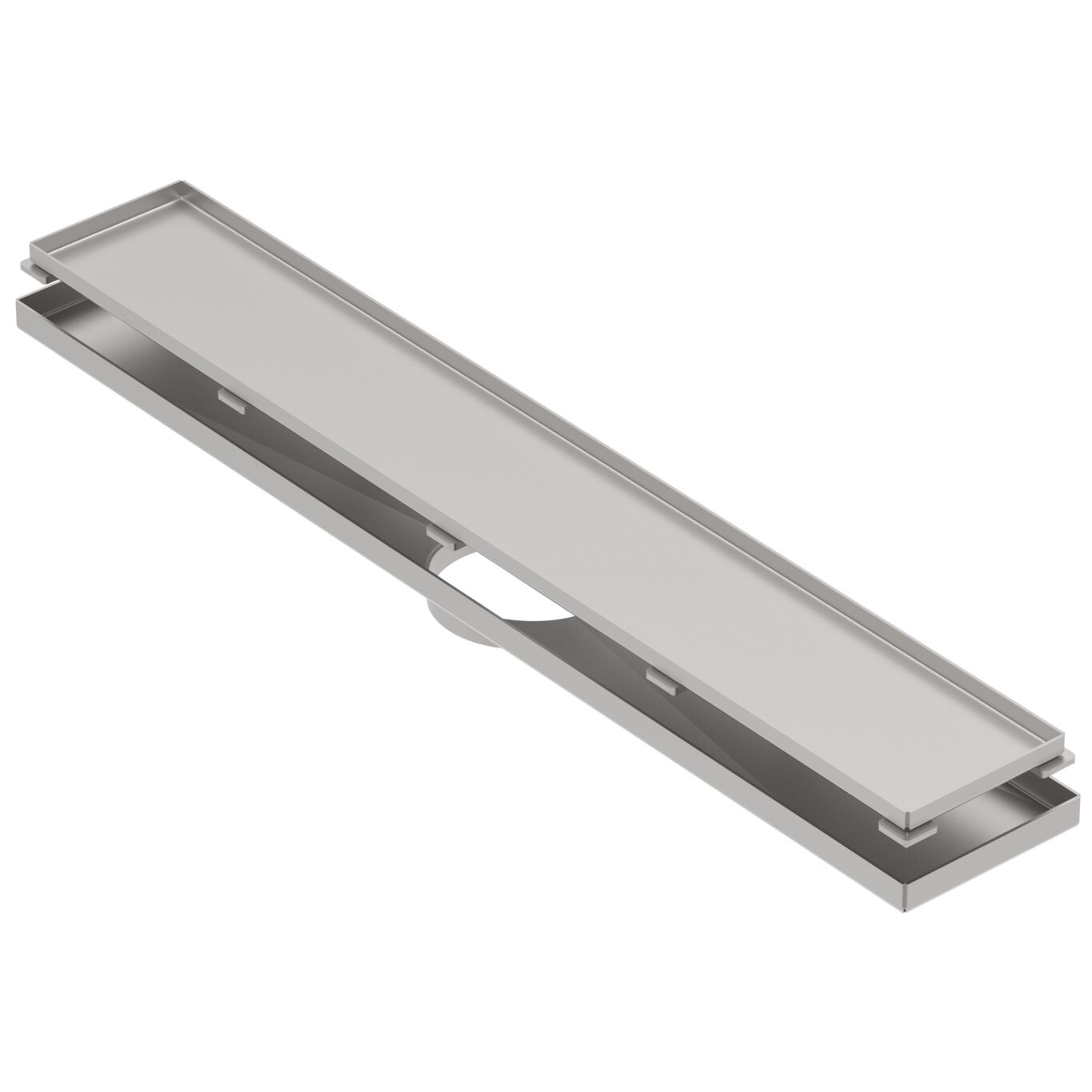

MOUNTING SET LINE TOKYO 1000
-With clamping ring
-Floor: concrete and tiled
-Frame: rectangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 (300) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 41 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 112 |
| Shape | Rectangular |
| Size (Inch) | 5⅛x39⅜ |
| Size (mm) | 130x1000 |
| Weight (kg) | 5,13 |
| Weight (lbs) | 11,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
