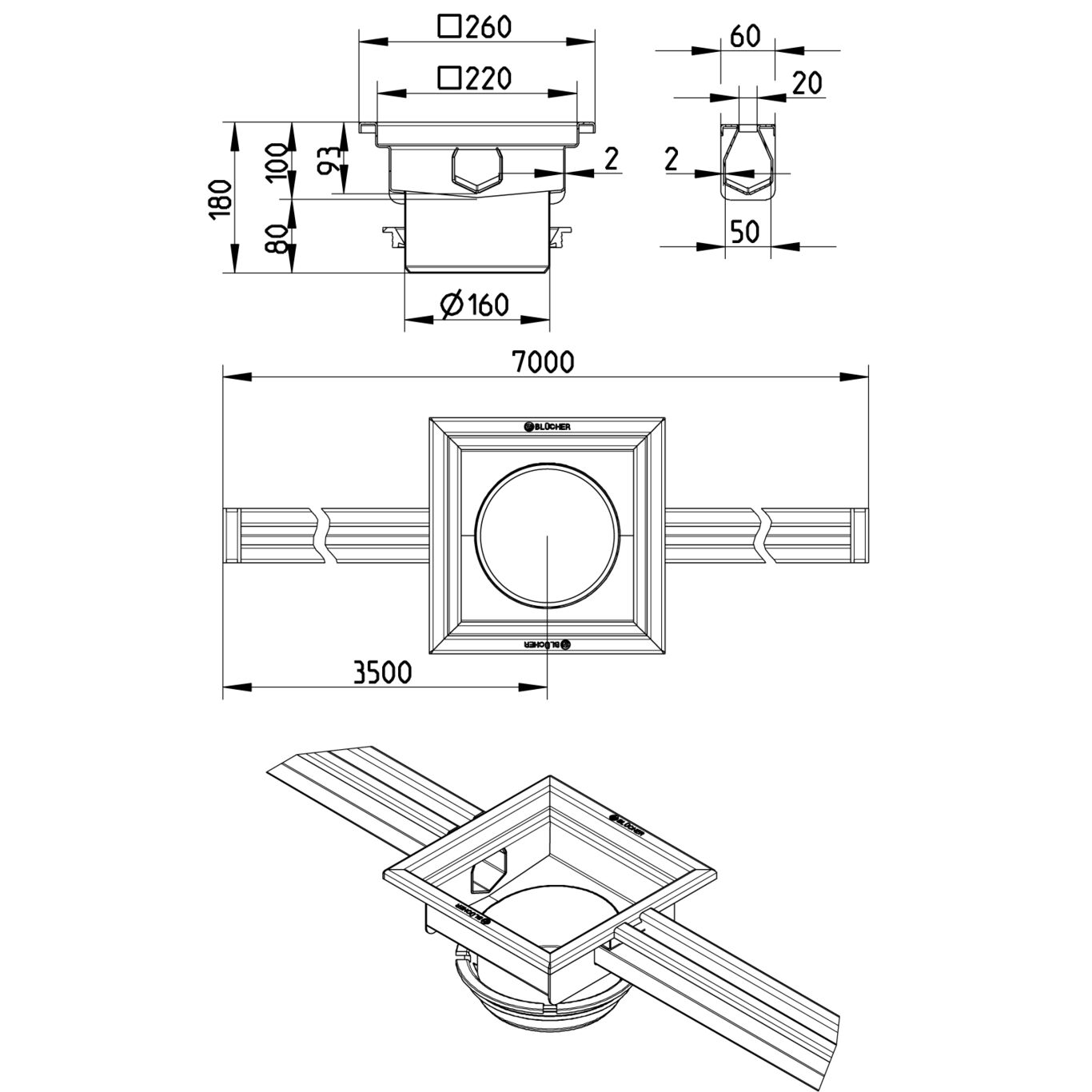

SLOT CHANNEL 20x7000 CENTER OUTLET - (673AK070-35BA)
Part Of the Series: Slot channel-No membrane
Type no.: 673AK070-35BA
EAN no.: 5705499125894
Size: 20x7000
SLOT CHANNEL 20x7000 CENTER OUTLET
-With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 180 |
Outlet Box | Yes |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (Inch) | ¾x275⅝ |
Size (mm) | 20x7000 |
Weight (kg) | 32,06 |
Weight (lbs) | 70,68 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
