SLOT GRATING SQUARE - (790.218.000.10)
×
![]()
Part Of the Series: Grating-Drain-250
Type no.: 790.218.000.10
EAN no.: 5705499128710
Size: 250x250

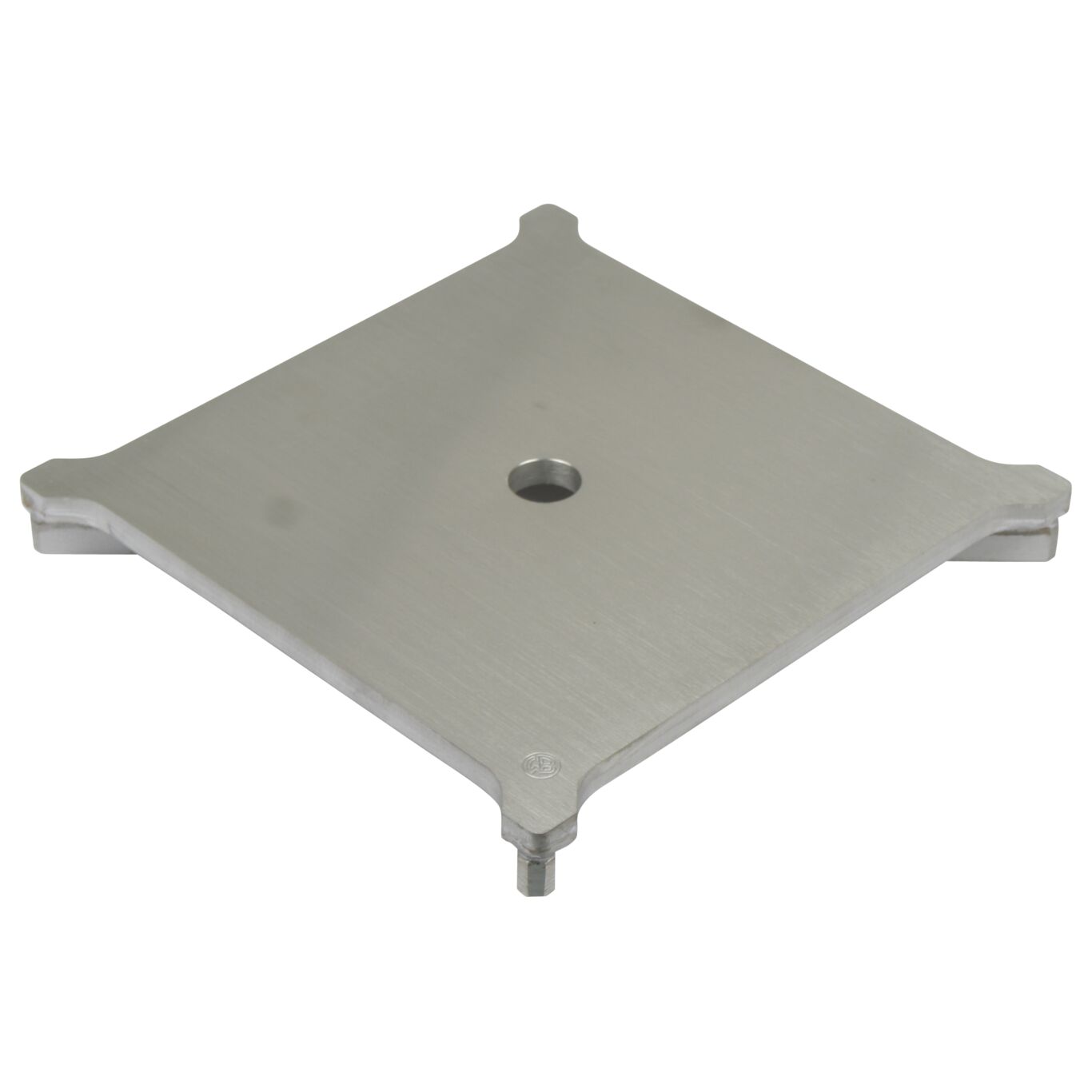

SLOT GRATING SQUARE

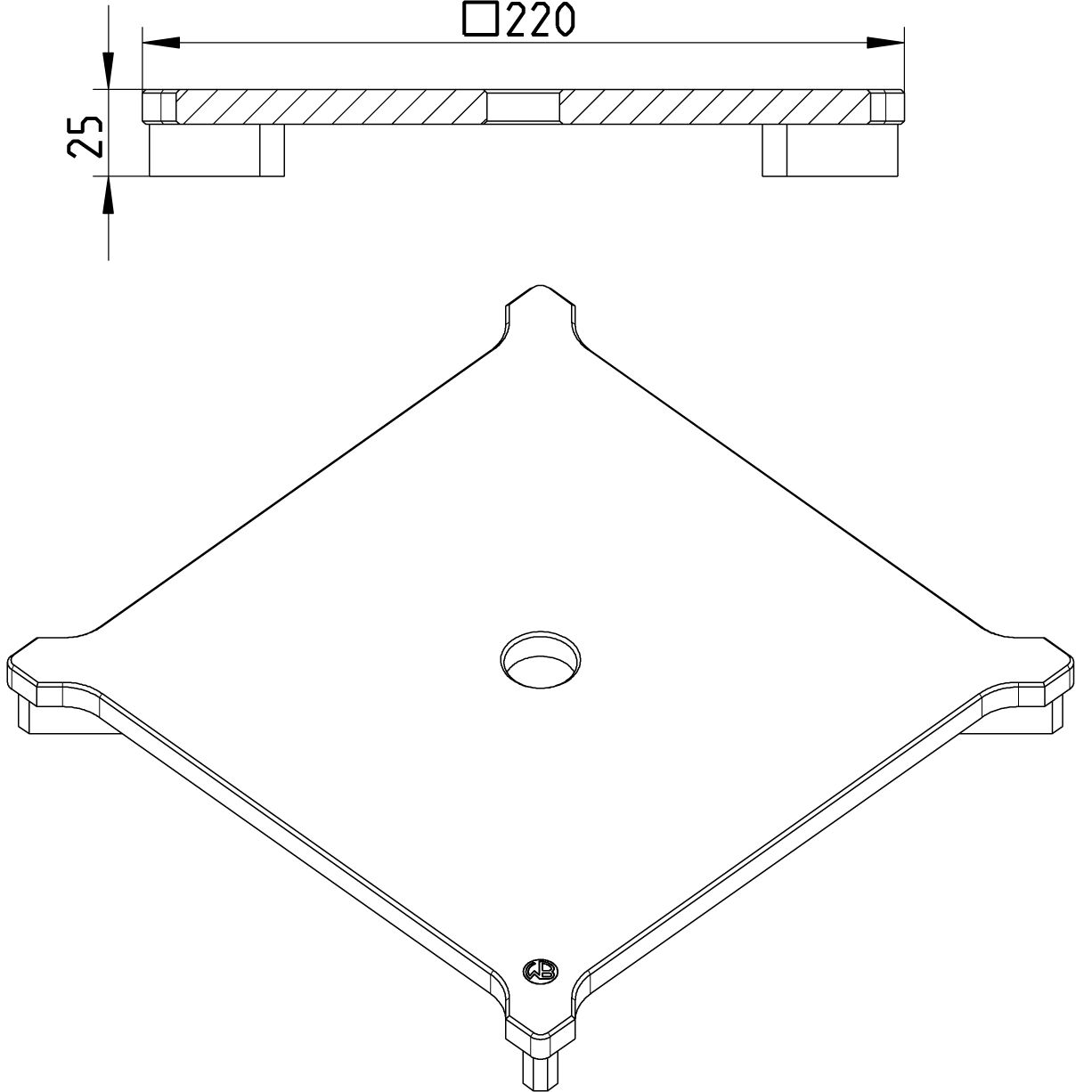

-Grating: 220x220mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (5000) |
| Load class EN1253(lbs) | R50 (11023) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (Inch) | 9⅞x9⅞ |
| Size (mm) | 250x250 |
| Weight (kg) | 3,44 |
| Weight (lbs) | 7,58 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
