CHANNEL 400x5000 END OUTLET - (670FK050-00BA)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670FK050-00BA
EAN no.: 5705499130027
Size: 400x5000

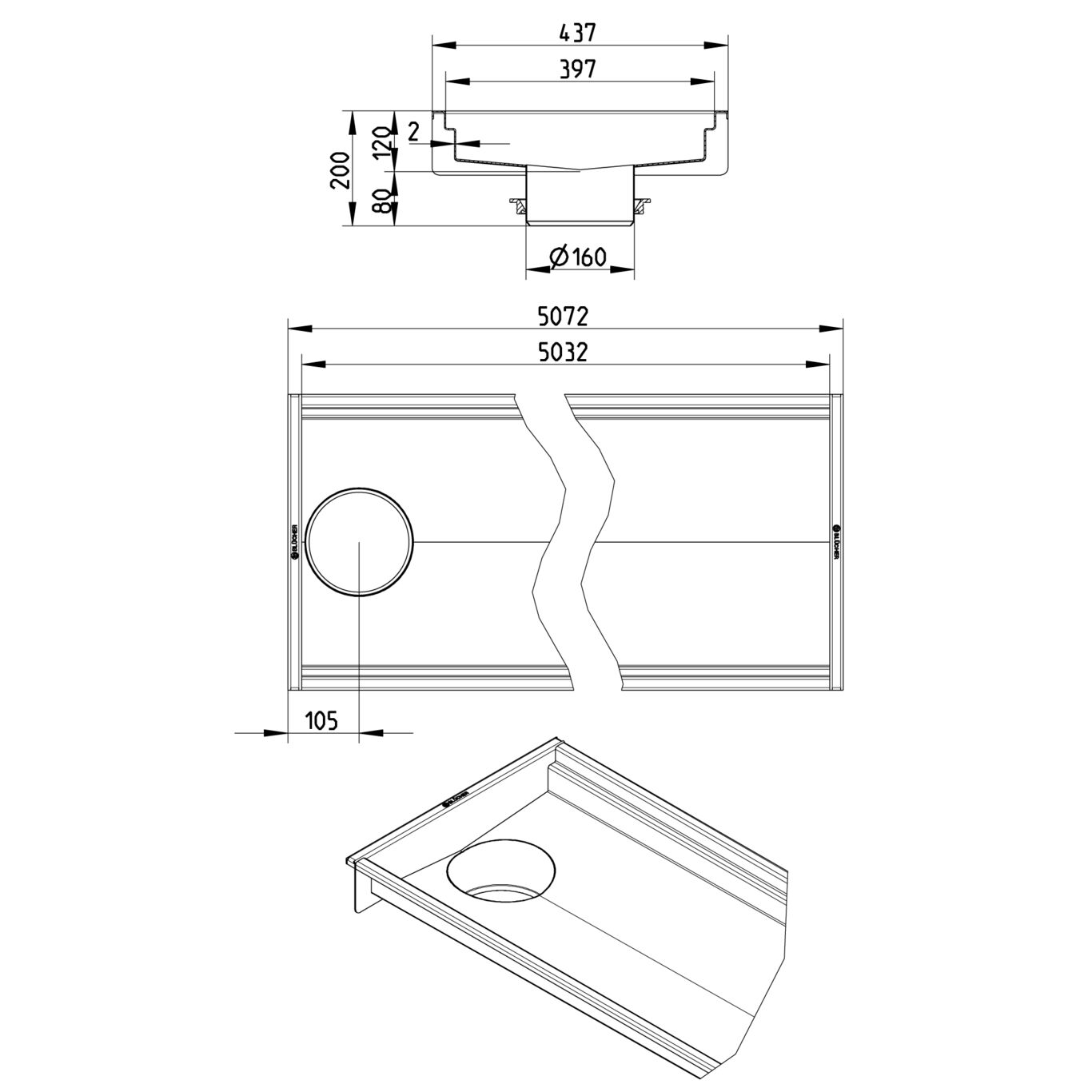

CHANNEL 400x5000 END OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 200 |
| Outlet Box | No |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 15¾x196⅞ |
| Size (mm) | 400x5000 |
| Weight (kg) | 51,88 |
| Weight (lbs) | 114,38 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
