MESH GRATING CHANNEL - (696.223.394.99)
×
![]()
Part Of the Series: Grating-Channel-400
Type no.: 696.223.394.99
EAN no.: 5705499131536
NRF no.: 3397148
Size: 400x1000
MESH GRATING CHANNEL

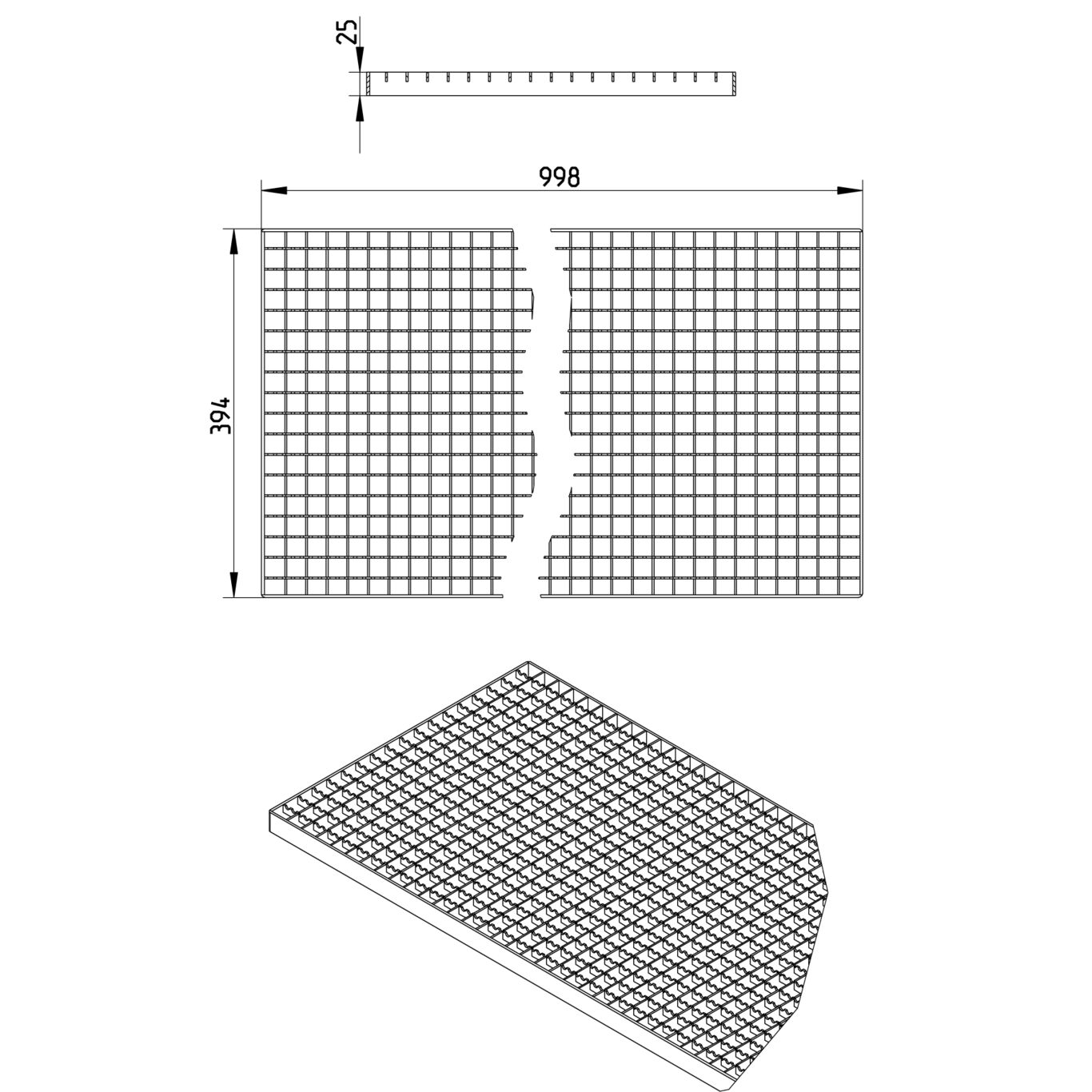

-Grating: 394x998mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (1500) |
| Load class EN1253(lbs) | L15 (3307) |
| Load Class EN1433 | A15 |
| Load Class EN1433 (kg) | A15 (4.000) |
| Load class EN1433(lbs) | A15 (8818) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 15¾x39⅜ |
| Size (mm) | 400x1000 |
| Weight (kg) | 10,20 |
| Weight (lbs) | 22,49 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
