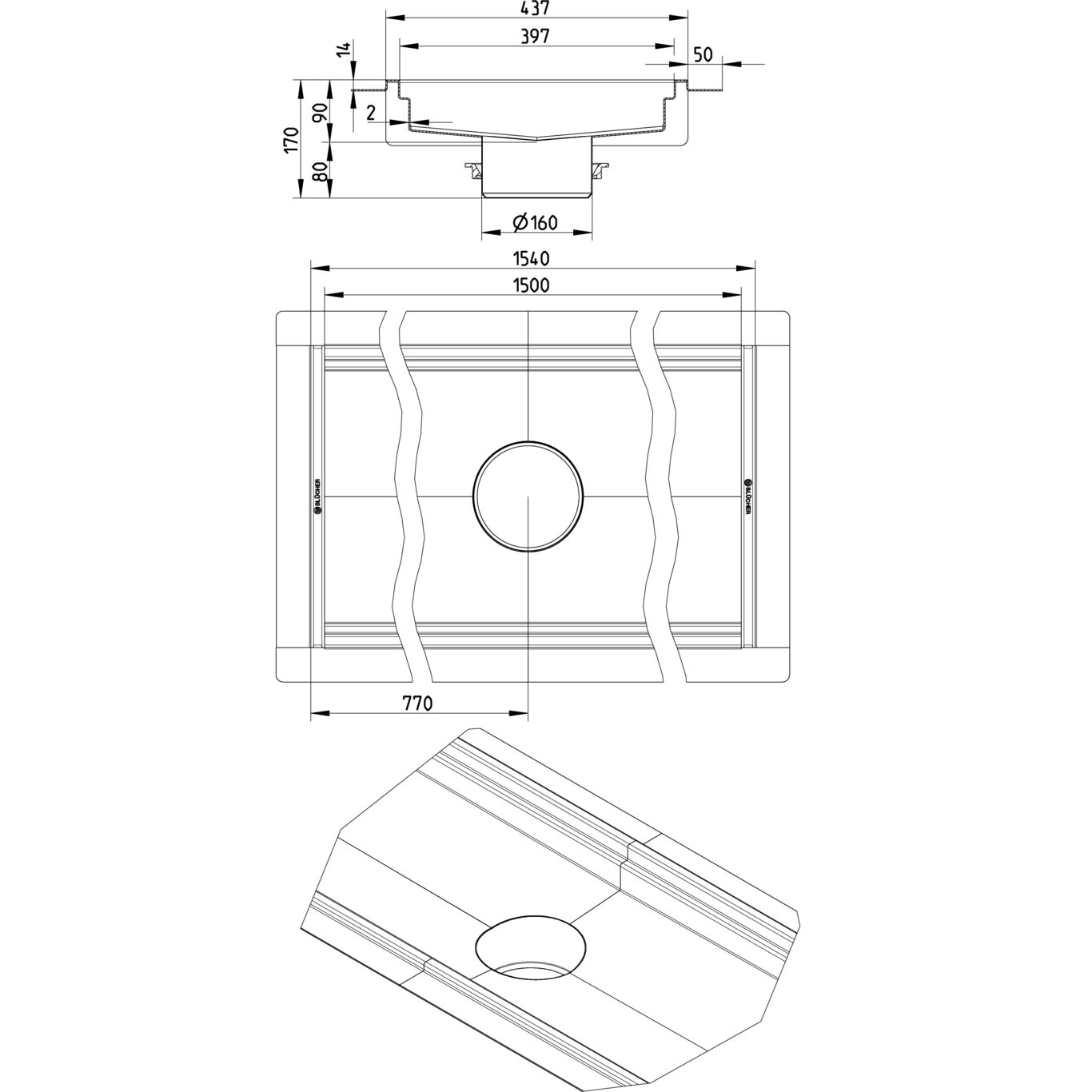

CHANNEL 400x1500 CENTER OUTLET - (674FK015-08BA)
×
![]()
Part Of the Series: Channel-Liquid membrane
Type no.: 674FK015-08BA
EAN no.: 5705499131390
Size: 400x1500
CHANNEL 400x1500 CENTER OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 170 |
| Outlet Box | No |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (Inch) | 15¾x59 |
| Size (mm) | 400x1500 |
| Weight (kg) | 19,19 |
| Weight (lbs) | 42,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
