INDUSTRIAL DRAIN - (763.522.075)
×
![]()
Part Of the Series: Drain-Liquid membrane-200
Type no.: 763.522.075
EAN no.: 5705499123593
RSK no.: 7121846
LVI no.: 3303738
Size: Ø205

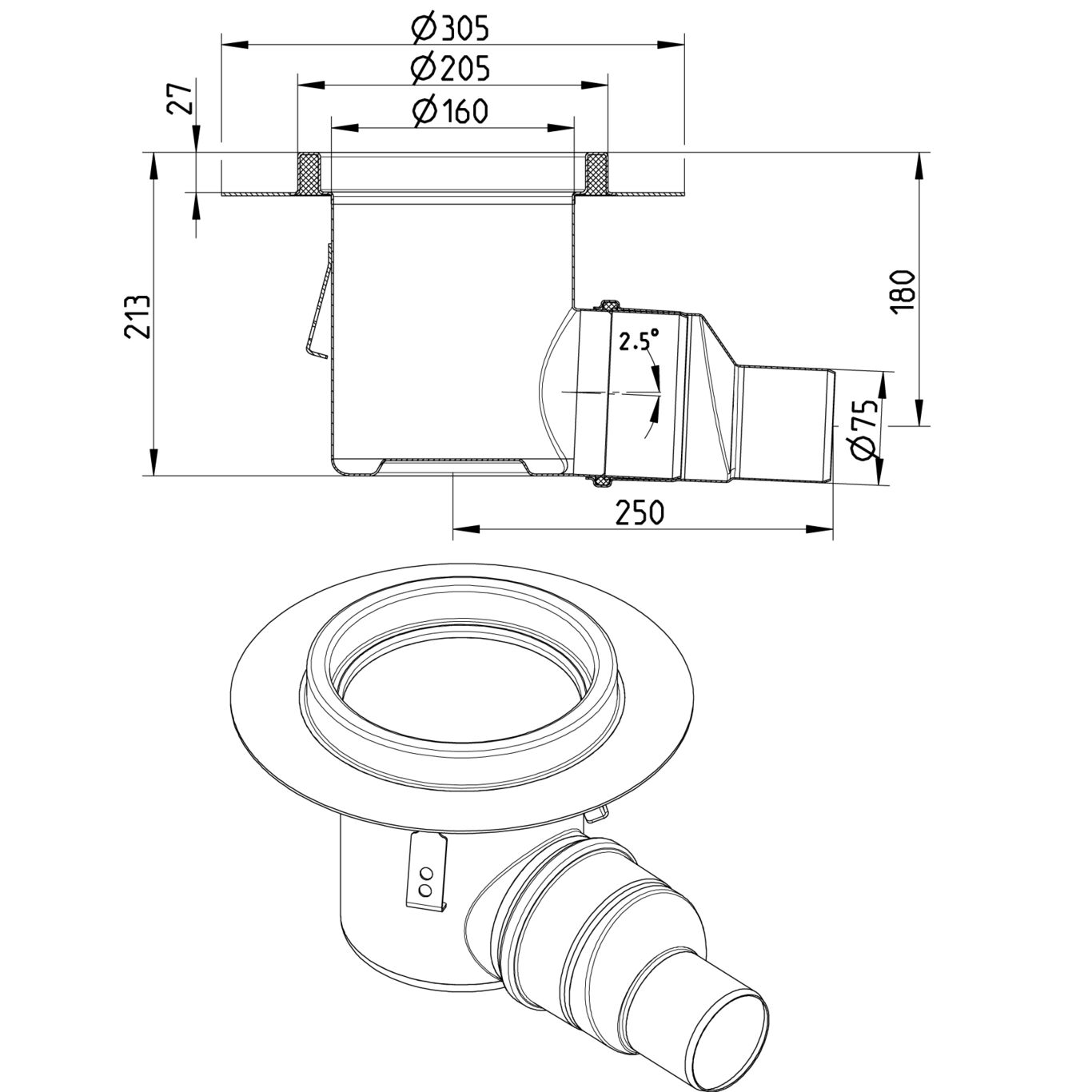

INDUSTRIAL DRAIN
-Floor: resin
-Frame: Ø205mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (Inch) | Ø8⅛ |
| Size (mm) | Ø205 |
| Weight (kg) | 6,53 |
| Weight (lbs) | 14,4 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
