KITCHEN CHANNEL 400x800 - (661FK008-06)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 661FK008-06
EAN no.: 5705499135220
LVI no.: 3303858
Size: 400x800

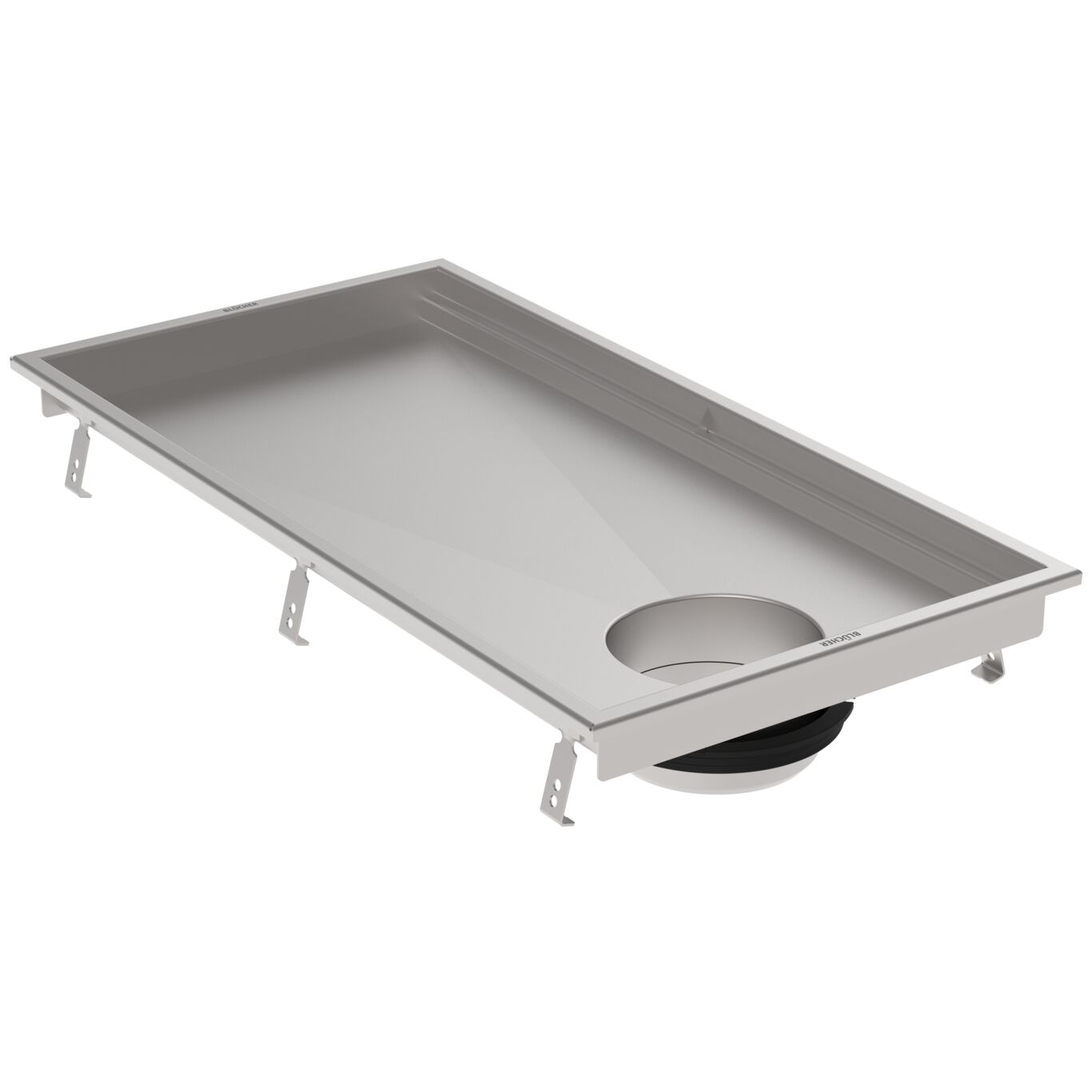

KITCHEN CHANNEL 400x800
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 143 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (Inch) | 15¾x31½ |
| Size (mm) | 400x800 |
| Weight (kg) | 8,48 |
| Weight (lbs) | 18,7 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
