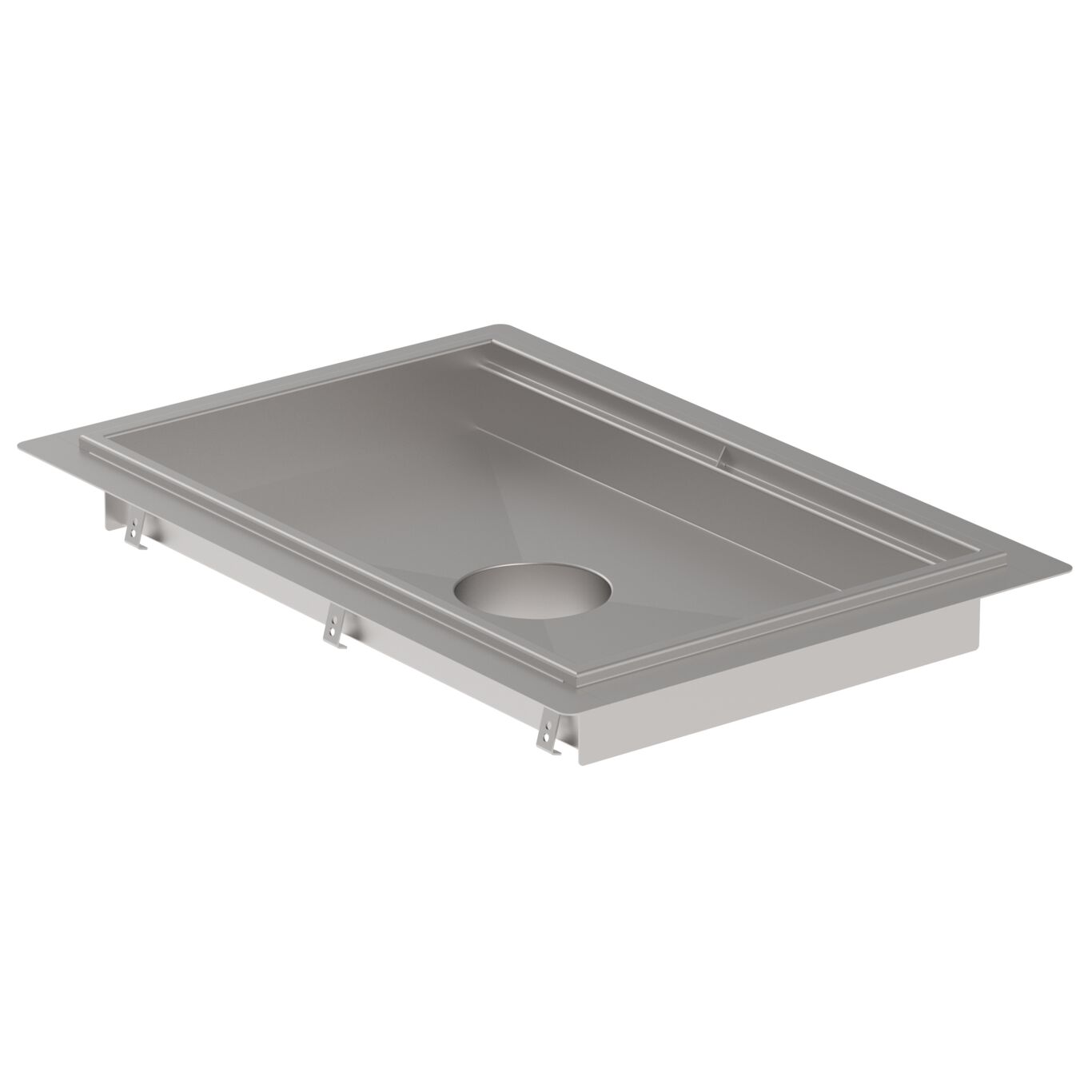

KITCHEN CHANNEL 500x800 - (664GK008-11)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 664GK008-11
EAN no.: 5705499135107
RSK no.: 7122968
LVI no.: 3304152
Size: 500x800
KITCHEN CHANNEL 500x800
-Floor: concrete, tiled and resin
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301

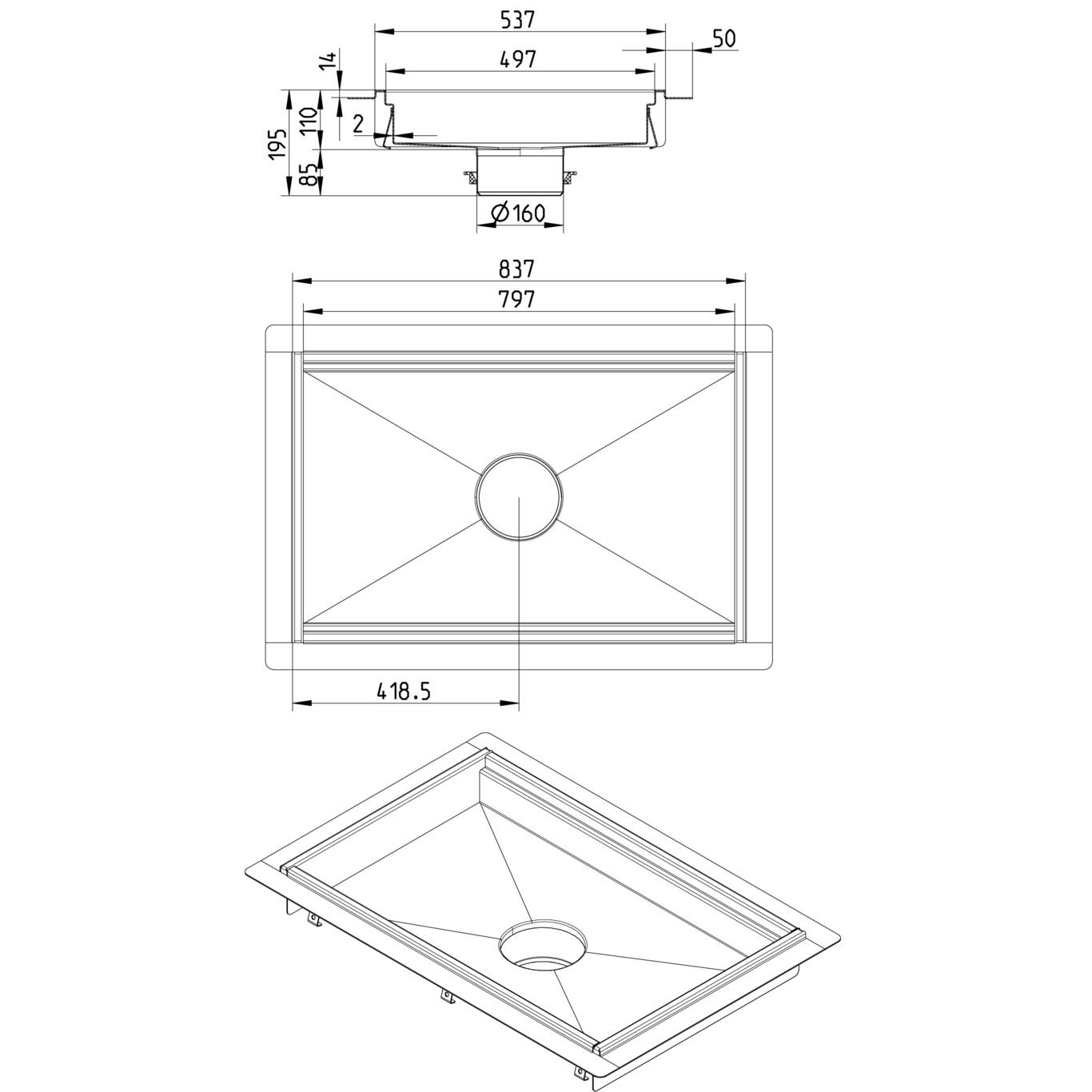

| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 195 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (Inch) | 19⅝x31½ |
| Size (mm) | 500x800 |
| Weight (kg) | 14,51 |
| Weight (lbs) | 31,99 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
