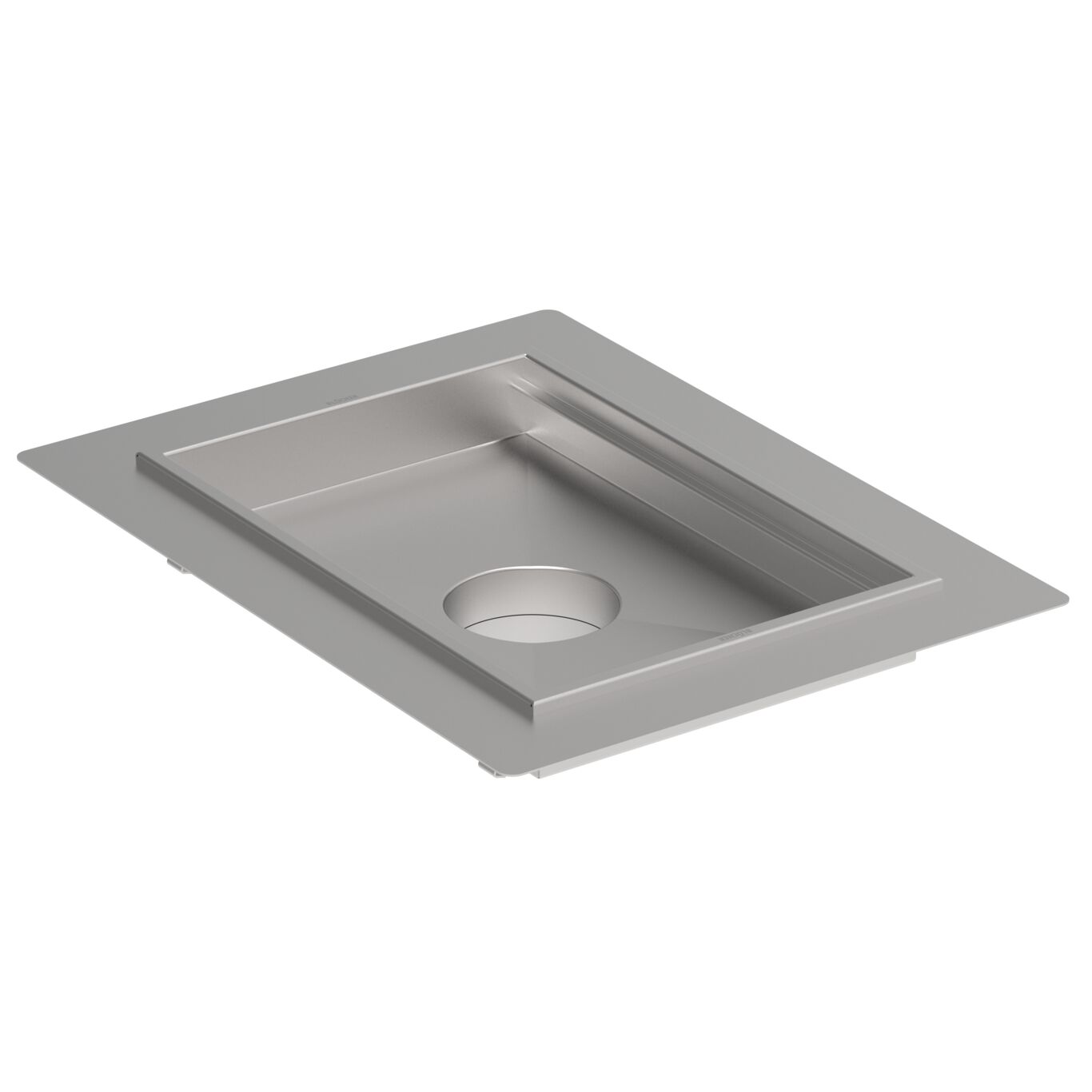

KITCHEN CHANNEL 400x600 - (668FK006-11)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 668FK006-11
EAN no.: 5705499135183
RSK no.: 7121819
LVI no.: 3304930
Size: 400x600
KITCHEN CHANNEL 400x600
-Adjustable
-Floor: concrete, tiled and resin
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 197 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 179 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (Inch) | 15¾x23⅝ |
| Size (mm) | 400x600 |
| Weight (kg) | 13,04 |
| Weight (lbs) | 28,75 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
