ROOF DRAIN FOR SIPHONIC, HIGH - (402.206.050)
×
![]()
Part Of the Series: Drain for siphonic-single ply membrane
Type no.: 402.206.050
EAN no.: 5705499132892
VVS no.: 164111250
RSK no.: 5173707
NRF no.: 3395006
LVI no.: 3384538

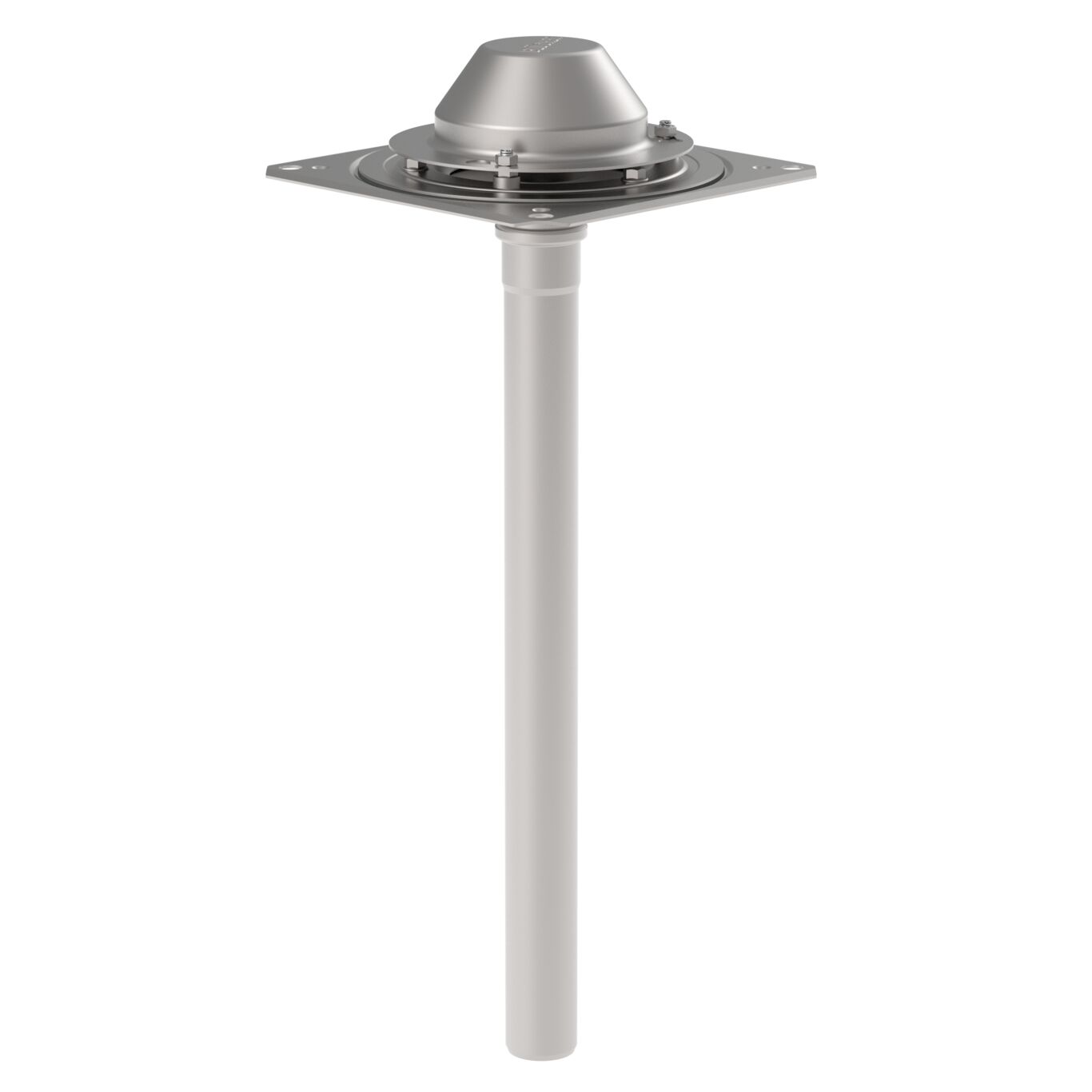

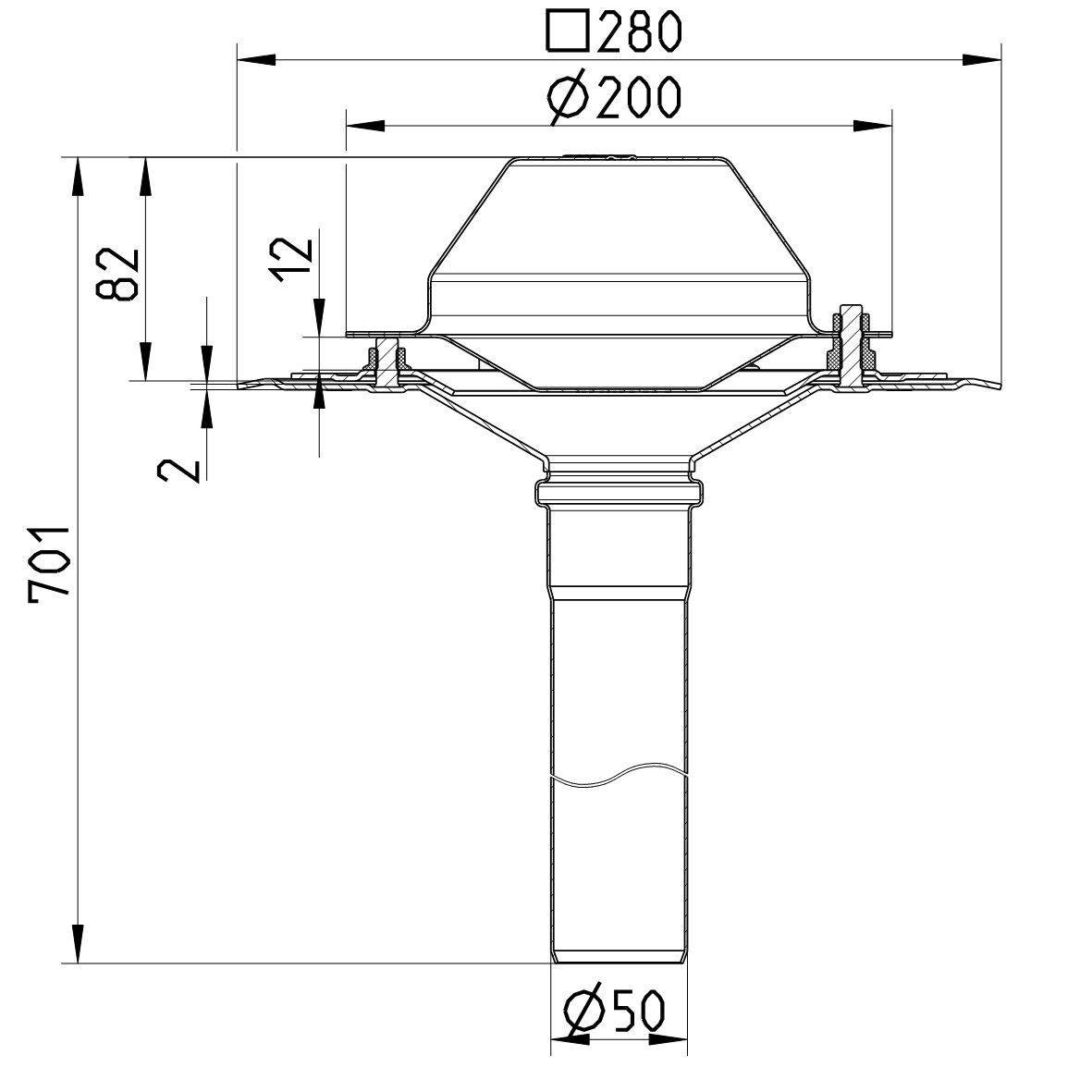

ROOF DRAIN FOR SIPHONIC, HIGH
-Roof: single ply membrane
-Flange: 280x280mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 7.6 |
| Minimum Height (mm) | 701 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Roof | Single ply membrane |
| System | Siphonic |
| Weight (kg) | 3,23 |
| Weight (lbs) | 7,12 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
