LOWER PART FOR ROOF DRAIN - (402.004.050)
×
![]()
Part Of the Series: Lower part-single ply membrane
Type no.: 402.004.050
EAN no.: 5705499132960
VVS no.: 164121050
NRF no.: 3395011
LVI no.: 3384525

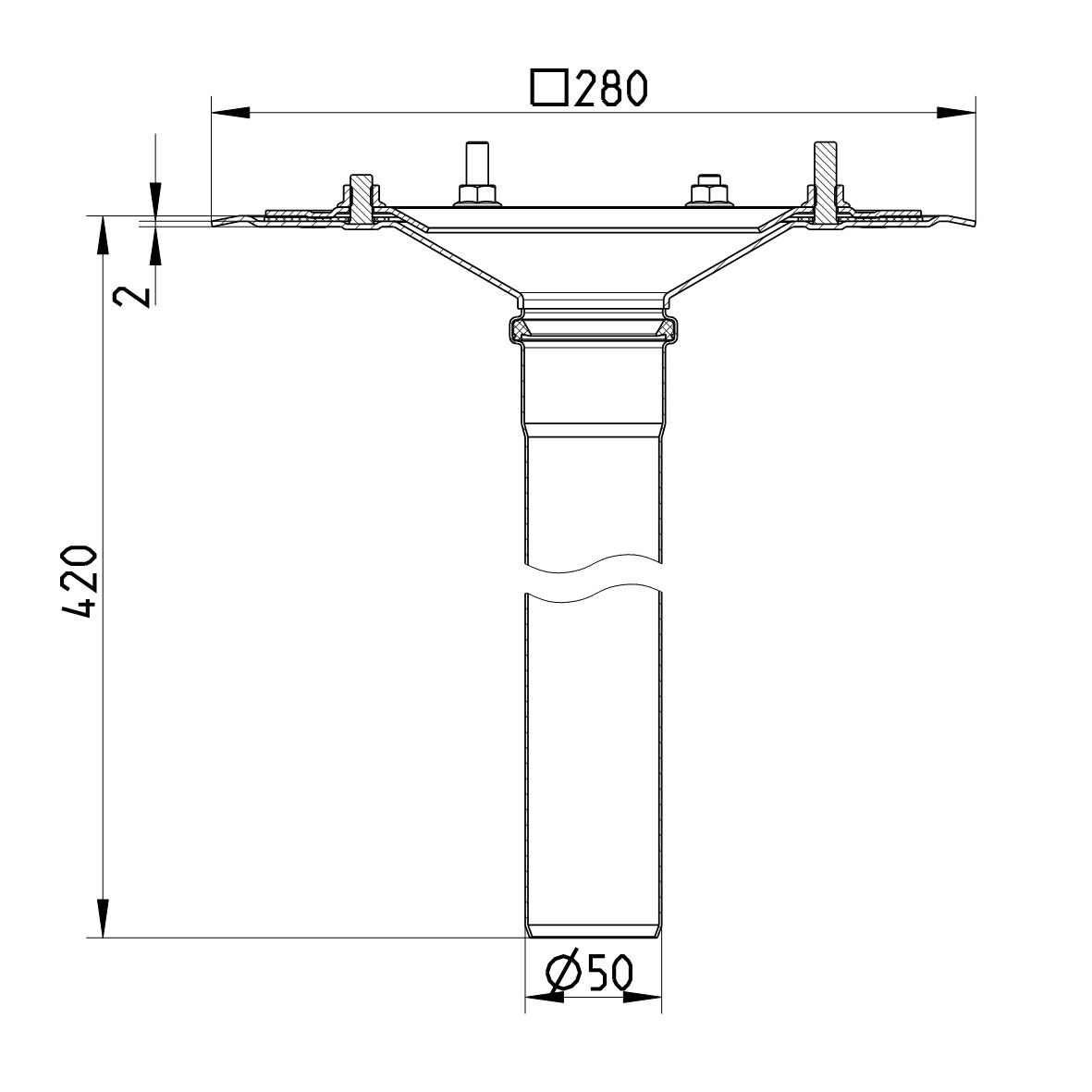

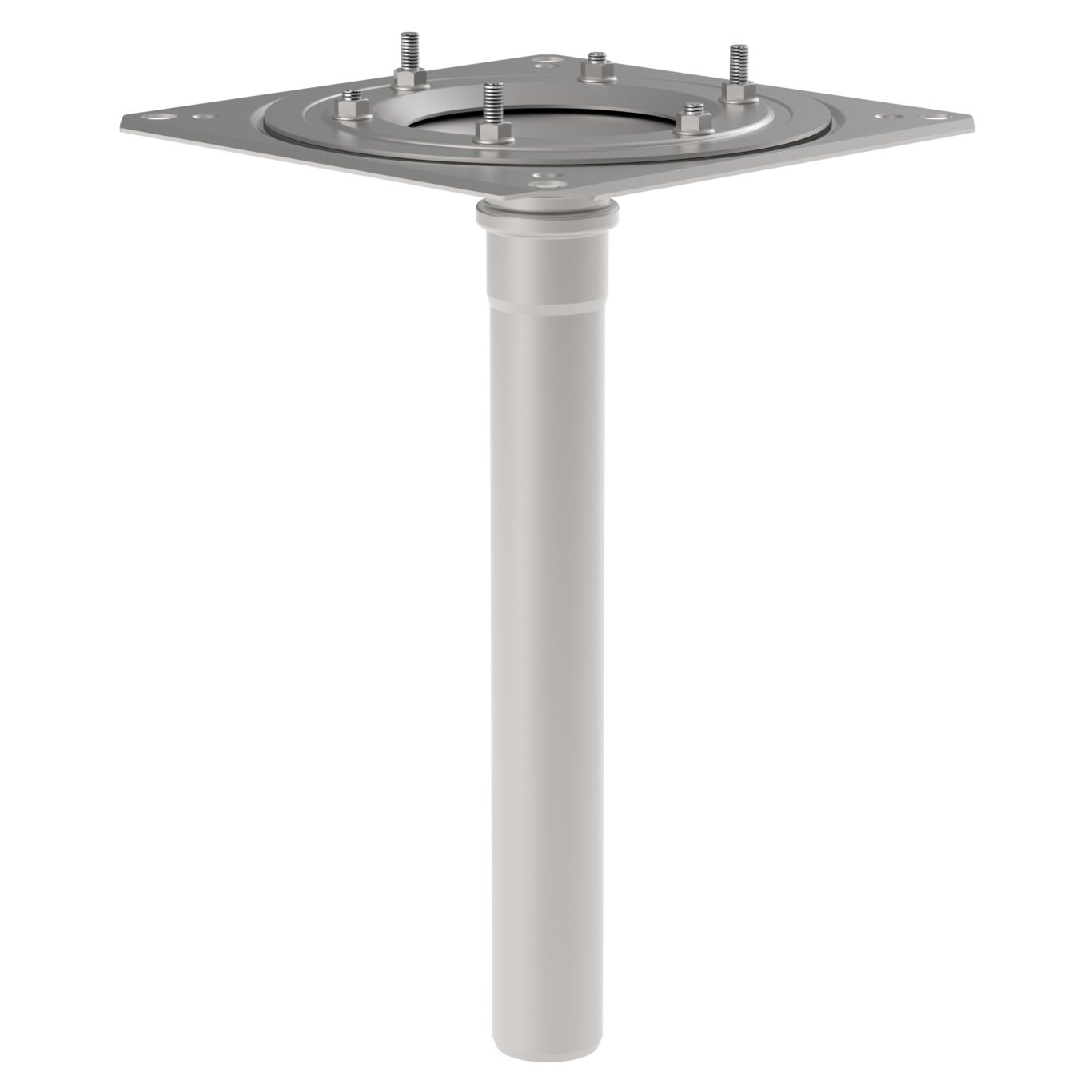

LOWER PART FOR ROOF DRAIN
-Roof: single ply membrane
-Flange: 280x280mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 420 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Roof | Single ply membrane |
| Weight (kg) | 2,42 |
| Weight (lbs) | 5,34 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
