LOWER PART MARINE - (470.000.110 S)
×
![]()
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 470.000.110 S
EAN no.: 5705499106183
NRF no.: 3397024

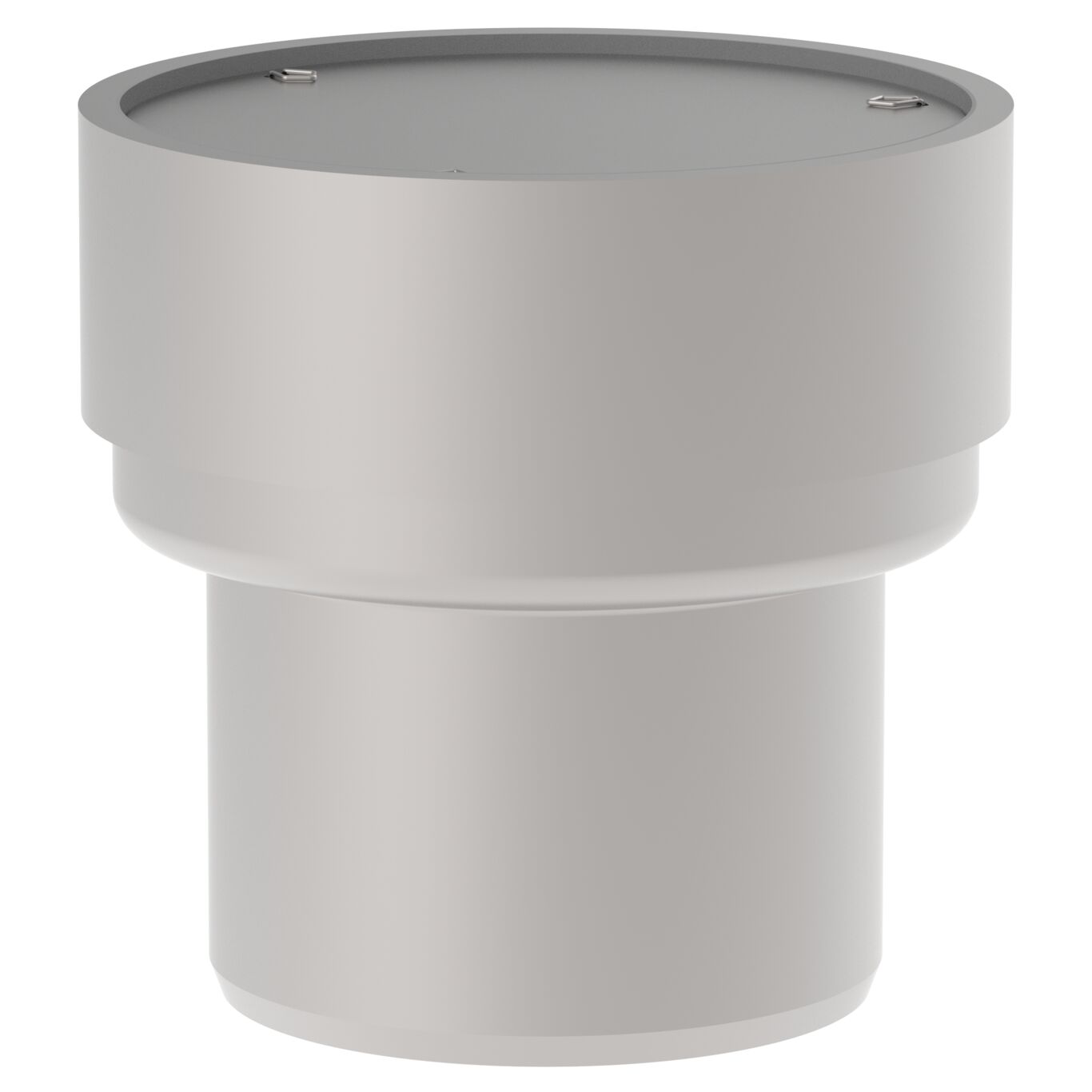

LOWER PART MARINE
-With welding sleeve
-Deck: steel
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |

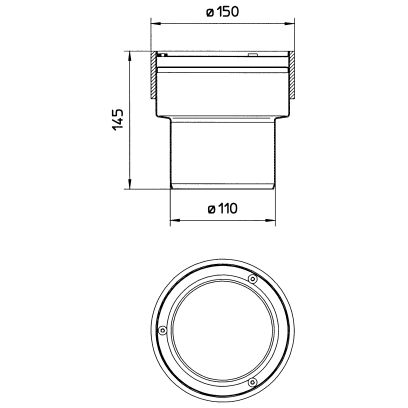

| Minimum Height (mm) | 146 |
| Number of Inlets | 0 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,70 |
| Weight (lbs) | 3,75 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB00000MA, Rev3, Marine Drains Bureau Veritas - 03456-H0, ShipDrains MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings
