UPPER PART MARINE - (473.301.110 S)
×
![]()
Part Of the Series: Marine-upper part-Vinyl-155
Type no.: 473.301.110 S
EAN no.: 5705499107517
NRF no.: 3397036
Size: Ø155

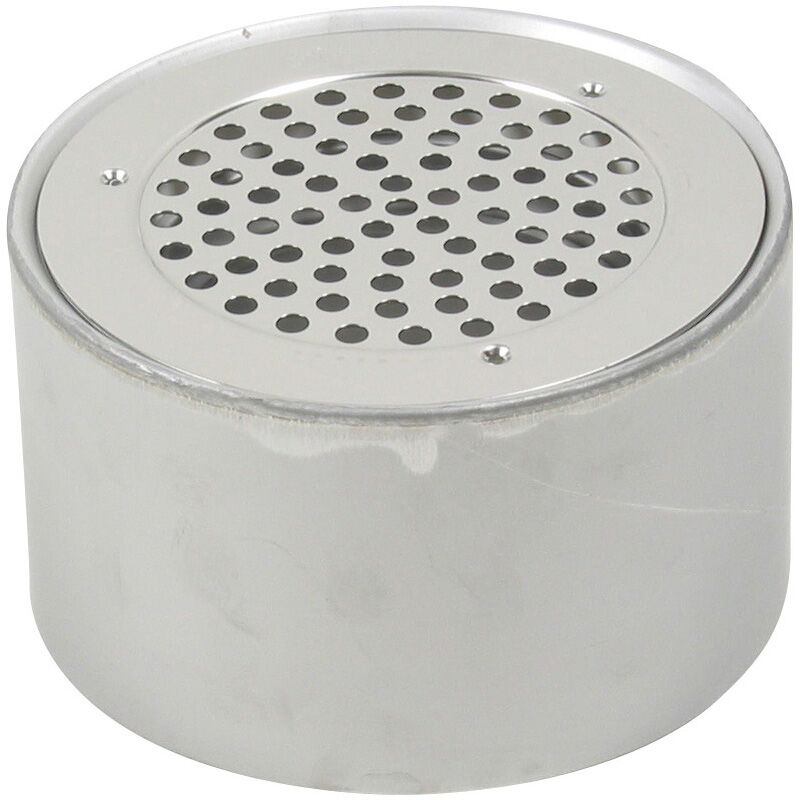

UPPER PART MARINE
-Floor: vinyl
-Frame: Ø155mm
-Stainless steel: AISI316L/EN1.4404

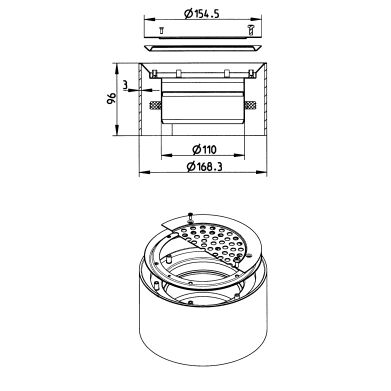

| Product Specification | |
|---|---|
| Floor | Vinyl |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 96 |
| Number of Inlets | 0 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Shape | Round |
| Size (Inch) | Ø6⅛ |
| Size (mm) | Ø155 |
| Weight (kg) | 0,80 |
| Weight (lbs) | 1,76 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB00000MA, Rev3, Marine Drains DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA Bureau Veritas - 03456-H0, ShipDrains Achilles Certificate - 46702-22
