REMOVABLE WATER TRAP - (502.052.110 S)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.052.110 S
EAN no.: 5705499105599
VVS no.: 153415556
RSK no.: 7120188
LVI no.: 3304901

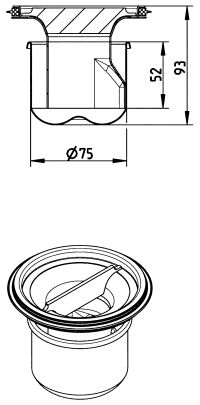

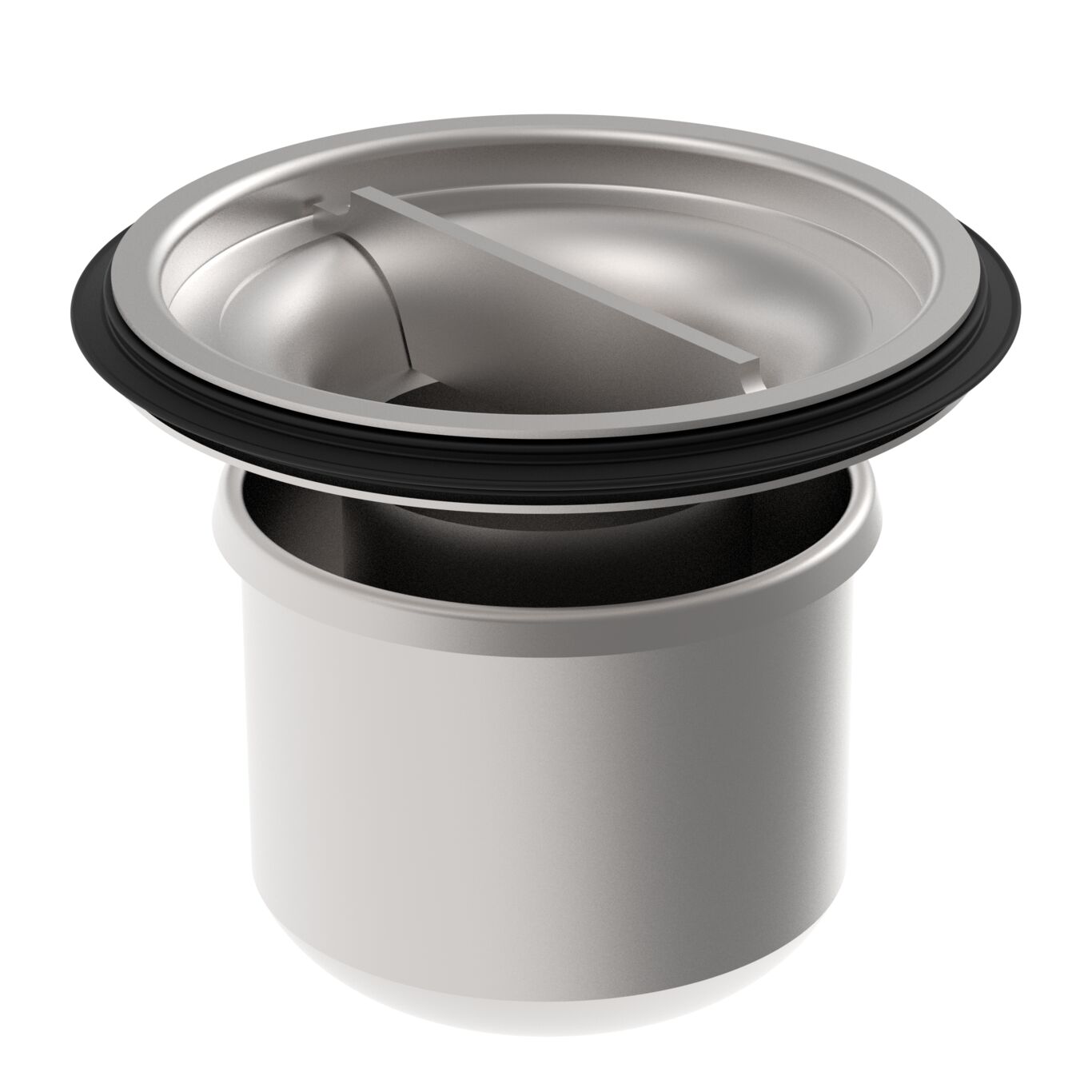

REMOVABLE WATER TRAP
-Water seal height = 52mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic|Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 1.3 |
| Minimum Height (mm) | 93 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 52 |
| Weight (kg) | 0,26 |
| Weight (lbs) | 0,57 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
