GRATING CIRCLE VIENNA - (474.300.110 S)
×
![]()
Part Of the Series: Marine-upper part-135
Type no.: 474.300.110 S
EAN no.: 5705499106428
NRF no.: 3397037
Size: Ø135

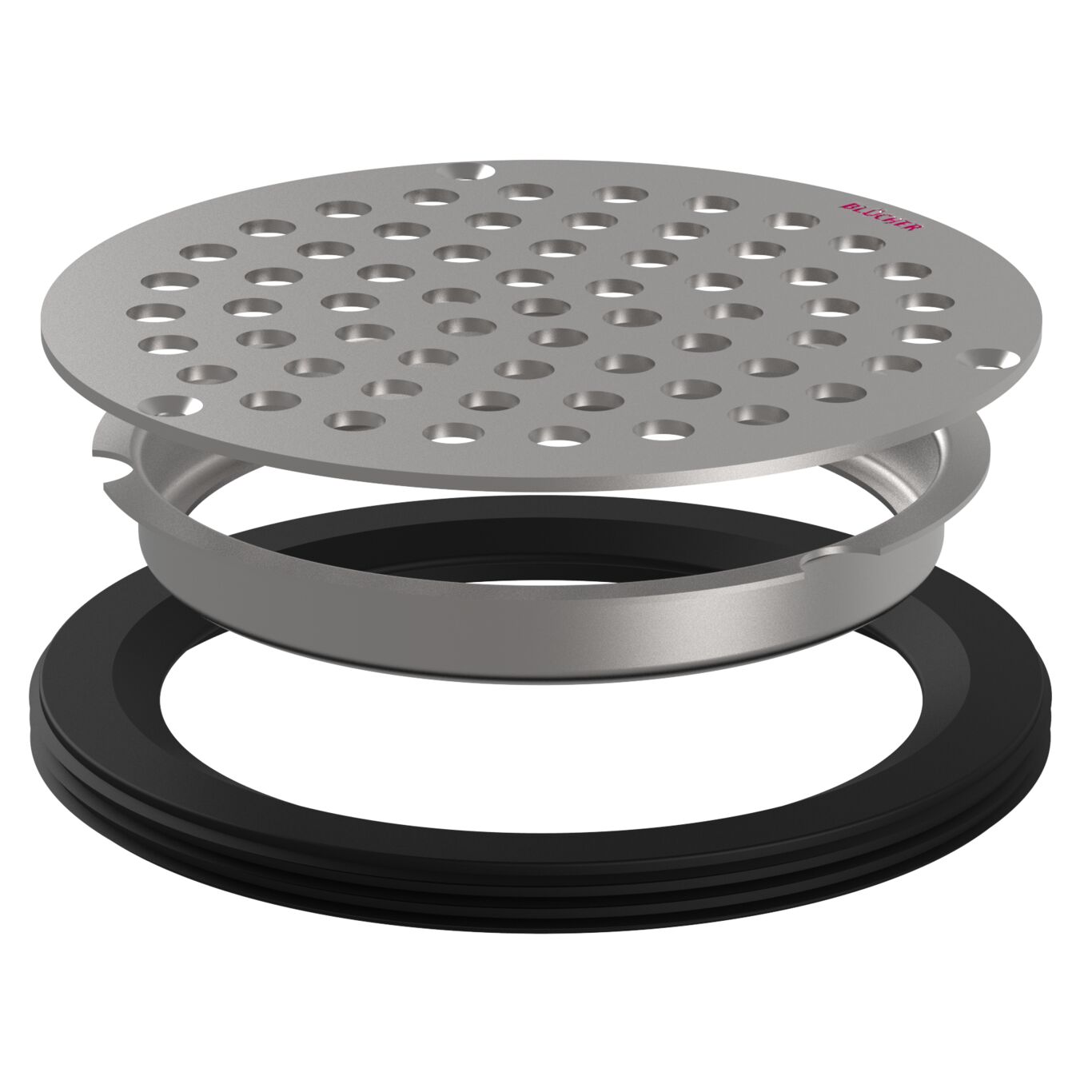

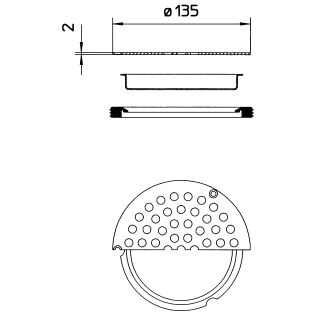

GRATING CIRCLE VIENNA
-With supporting ring for water trap
-Grating: Ø135mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screws | 3 |
| Shape | Round |
| Size (Inch) | Ø5⅜ |
| Size (mm) | Ø135 |
| Weight (kg) | 0,30 |
| Weight (lbs) | 0,44 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB00000MA, Rev3, Marine Drains Bureau Veritas - 03456-H0, ShipDrains MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001
