LOWER PART MARINE - (475.200.050 S)
×
![]()
Part Of the Series: Marine-lower part-welding flange-steel
Type no.: 475.200.050 S
EAN no.: 5705499106329
NRF no.: 3397042

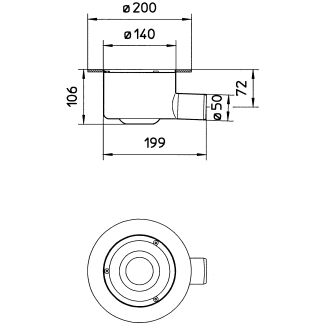

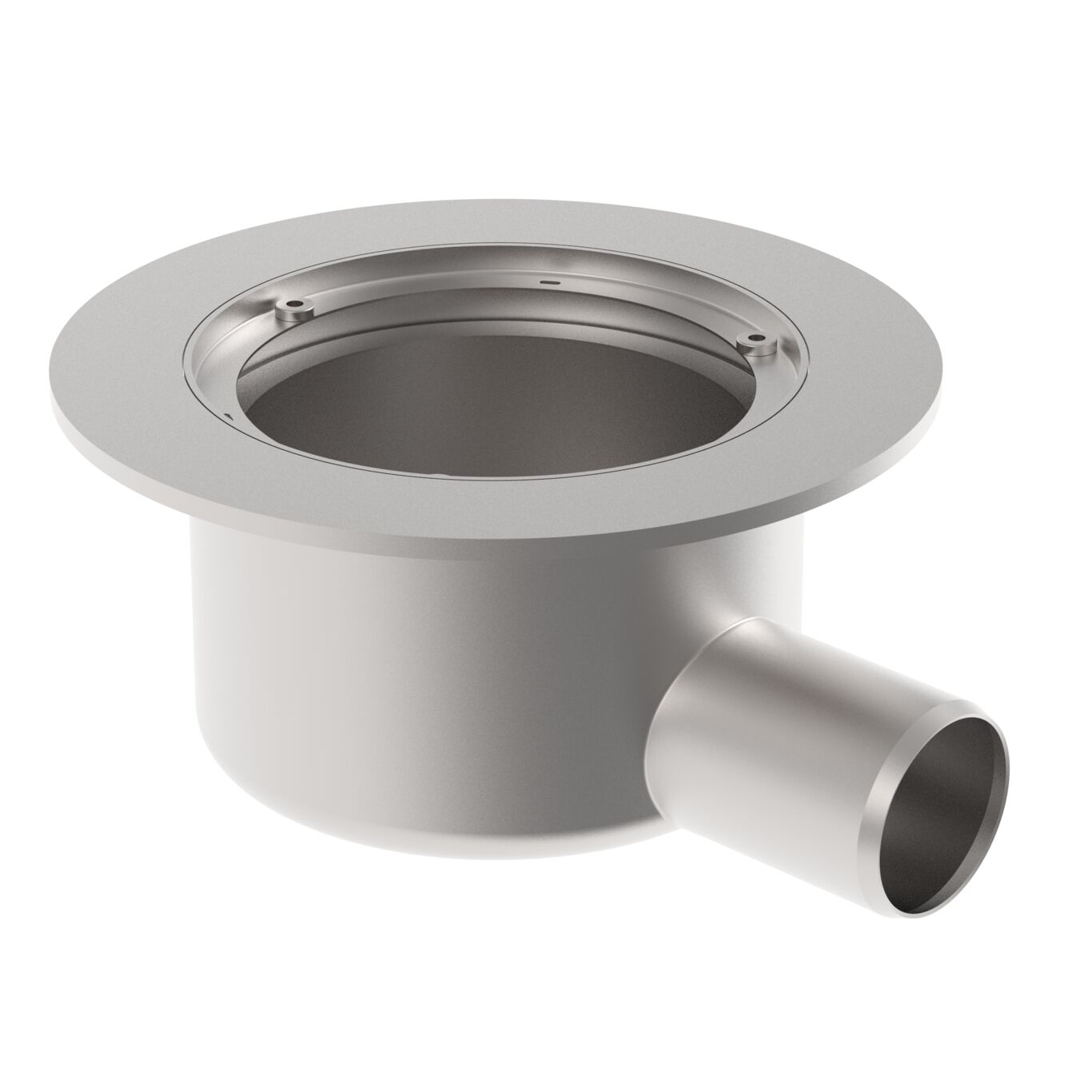

LOWER PART MARINE
-With welding flange
-Deck: steel
-Flange: Ø200mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 106 |
| Number of Inlets | 0 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,30 |
| Weight (lbs) | 2,87 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB00000MA, Rev3, Marine Drains Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas - 03456-H0, ShipDrains Achilles Certificate - 46702-22
