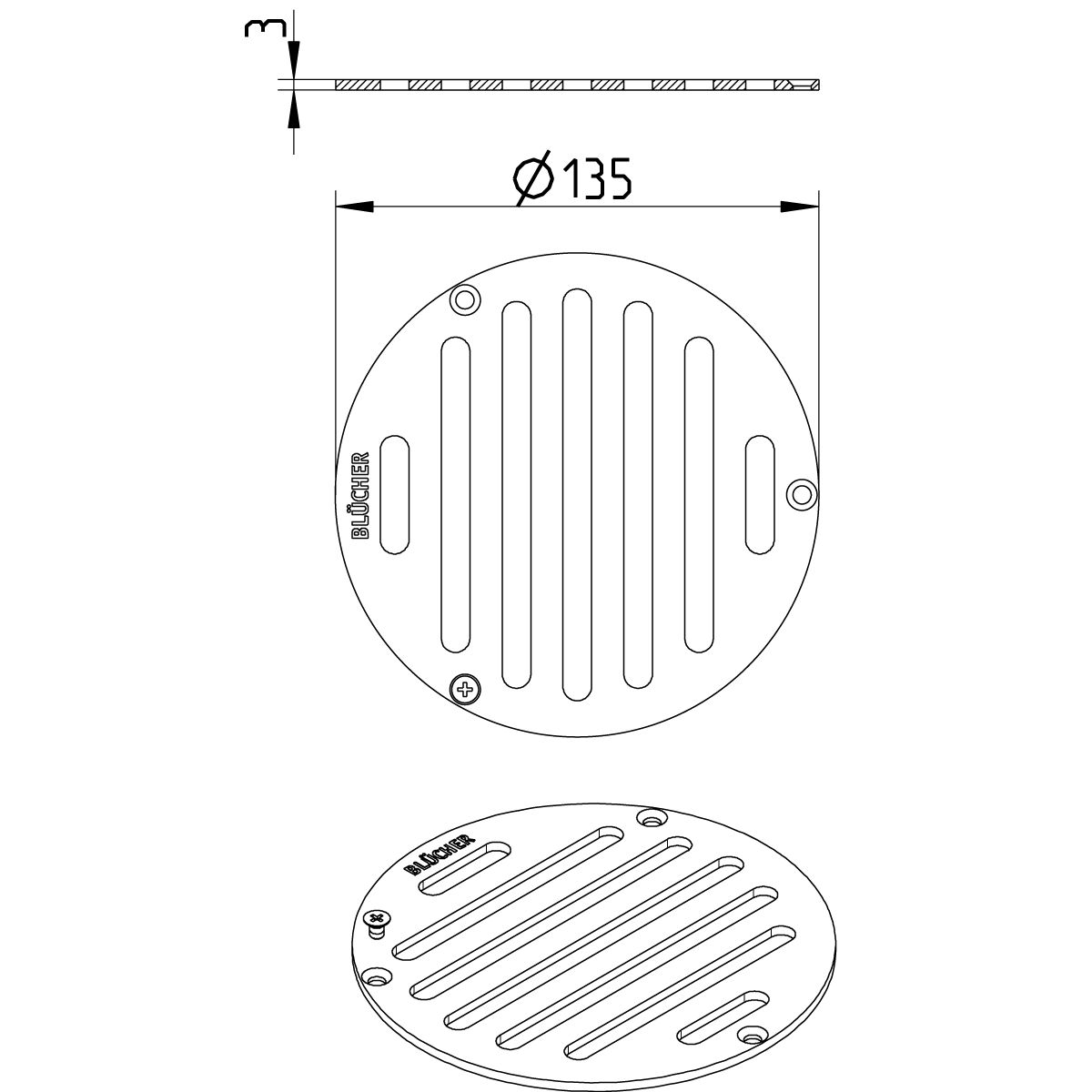

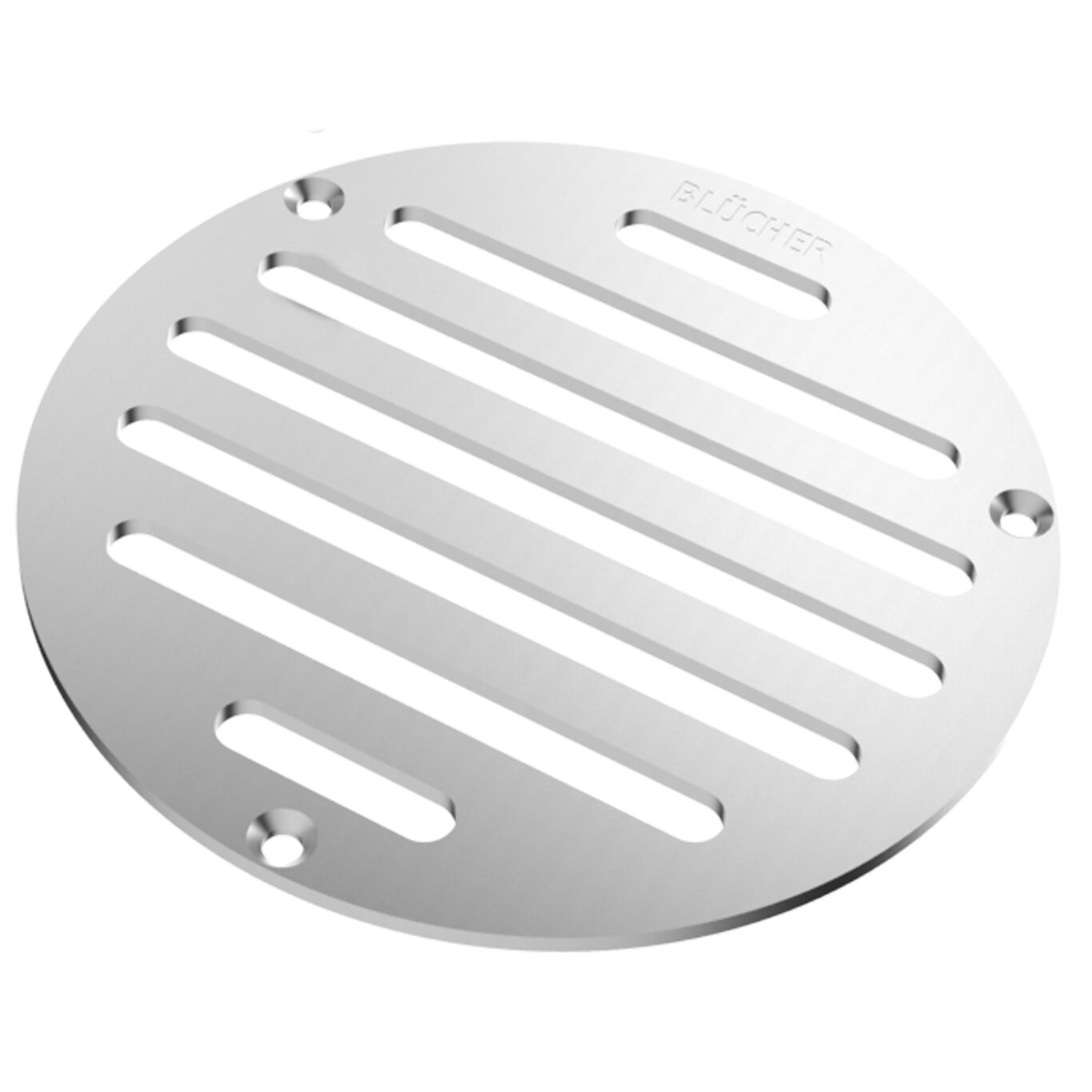

GRATING CIRCLE, 8MM SLOTS - (620.135.028 S)
×
![]()
Part Of the Series: Grating-135
Type no.: 620.135.028 S
EAN no.: 5705499135008
Size: Ø135
GRATING CIRCLE, 8MM SLOTS
-For barefoot areas
-Grating: Ø135mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load Class EN1253 (kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screws | 3 |
| Shape | Round |
| Size (Inch) | Ø5⅜ |
| Size (mm) | Ø135 |
| Weight (kg) | 0,23 |
| Weight (lbs) | 0,51 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
