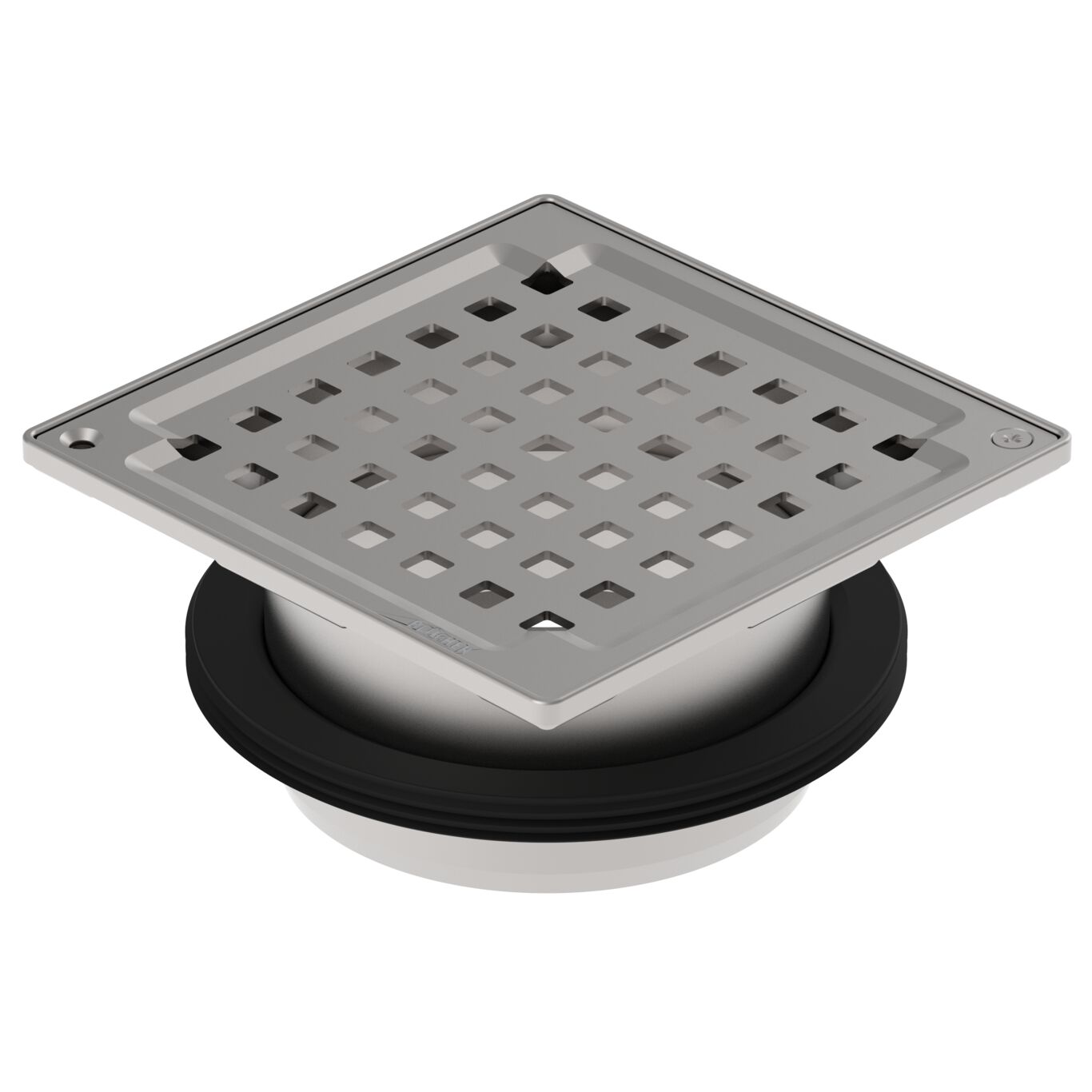

UPPER PART MARINE - (472.310.110 S)
×
![]()
Part Of the Series: Marine-upper part-145
Type no.: 472.310.110 S
EAN no.: 5705499141610
Size: 145x145
UPPER PART MARINE
-With supporting ring for trap
-Floor: tiled and wooden
-Frame: 145x145mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Tiled / Wooden |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |

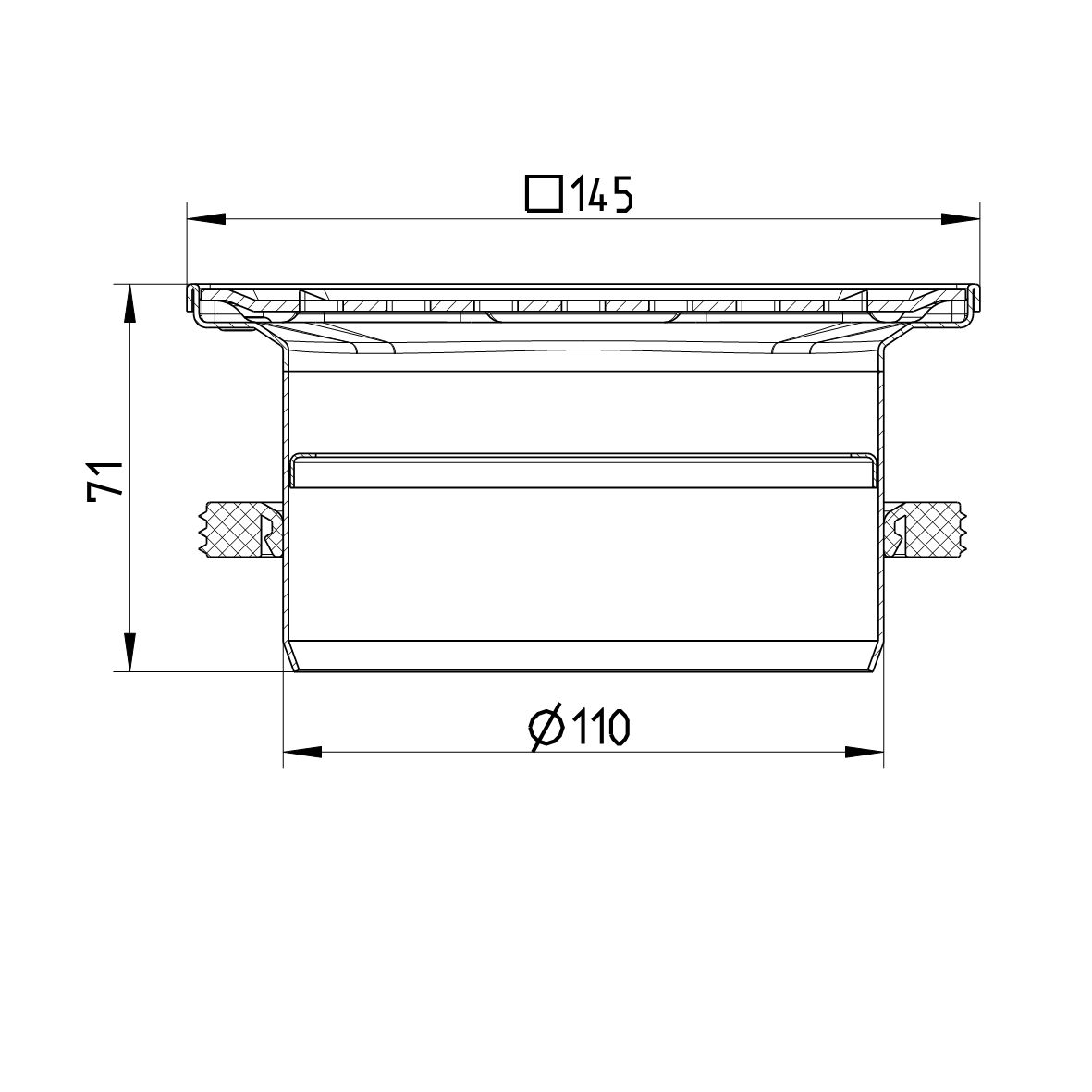

| Minimum Height (mm) | 71 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (mm) | 145x145 |
| Weight (kg) | 0,65 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
