ADJUSTABLE SHOWER DRAIN SQUARE - (352.300.075 S)
×
![]()
Part Of the Series: Drain-Sheet membrane-145
Type no.: 352.300.075 S
EAN no.: 5705499105438
VVS no.: 153323143
RSK no.: 7119409
Size: 145x145

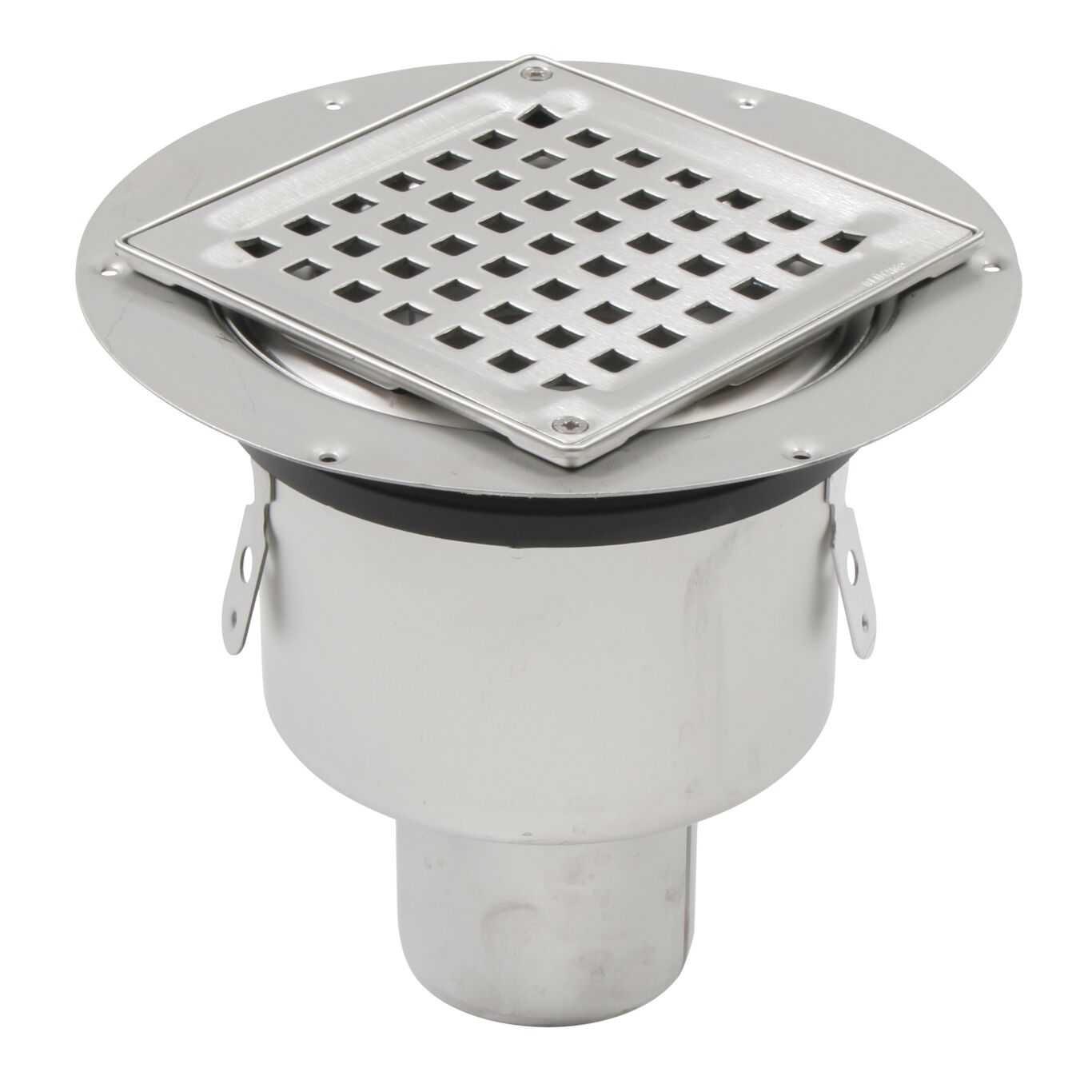

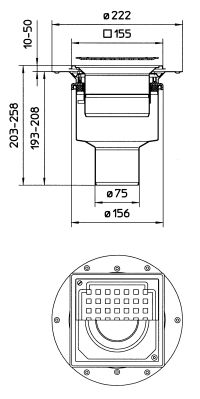

ADJUSTABLE SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-Sheet membrane, frame: 145x145mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 258 |
| Membrane Type | Sheet Membrane |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 5¾x5¾ |
| Size (mm) | 145x145 |
| Weight (kg) | 1,35 |
| Weight (lbs) | 2,98 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
