REMOVABLE TWO-PART WATER TRAP - (502.050.110 S)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.050.110 S
EAN no.: 5705499124071
VVS no.: 153416546
LVI no.: 3304912

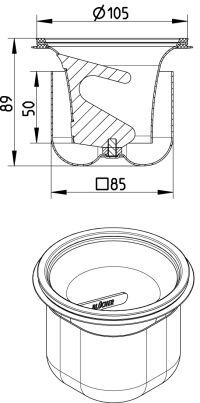

REMOVABLE TWO-PART WATER TRAP
-Water seal height = 50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic|Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 1.7 |
| Minimum Height (mm) | 89 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,36 |
| Weight (lbs) | 0,79 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
