INDUSTRIAL DRAIN - (760.403.160 S)
×
![]()
Part Of the Series: Drain-No membrane-300
Type no.: 760.403.160 S
EAN no.: 5705499109474
VVS no.: 153000318
LVI no.: 3303517
Size: 300x300

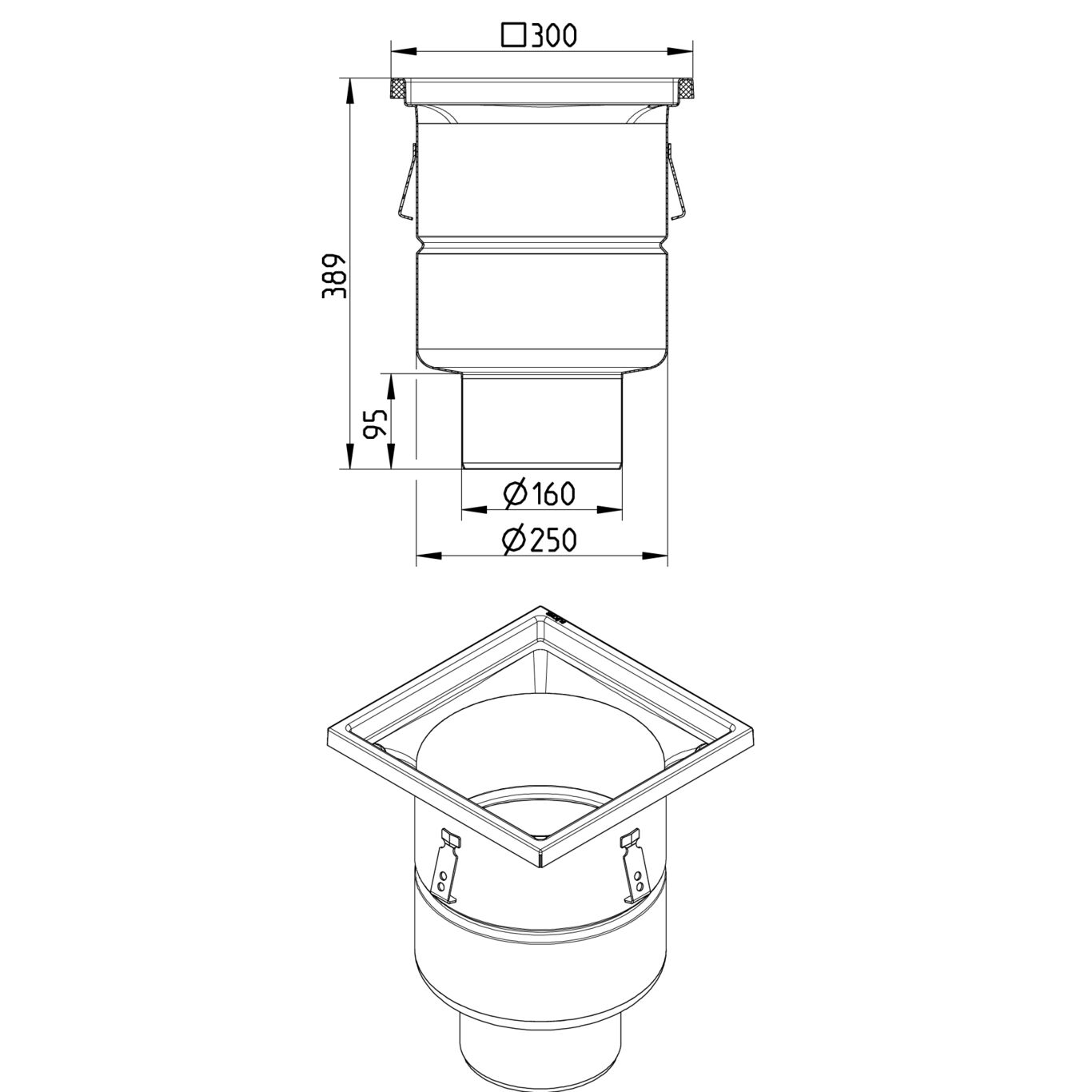

INDUSTRIAL DRAIN
-Floor: concrete and tiled
-No membrane, frame: 300x300mm
-Outlet: Ø160mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 11¾x11¾ |
| Size (mm) | 300x300 |
| Weight (kg) | 5,12 |
| Weight (lbs) | 11,29 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
