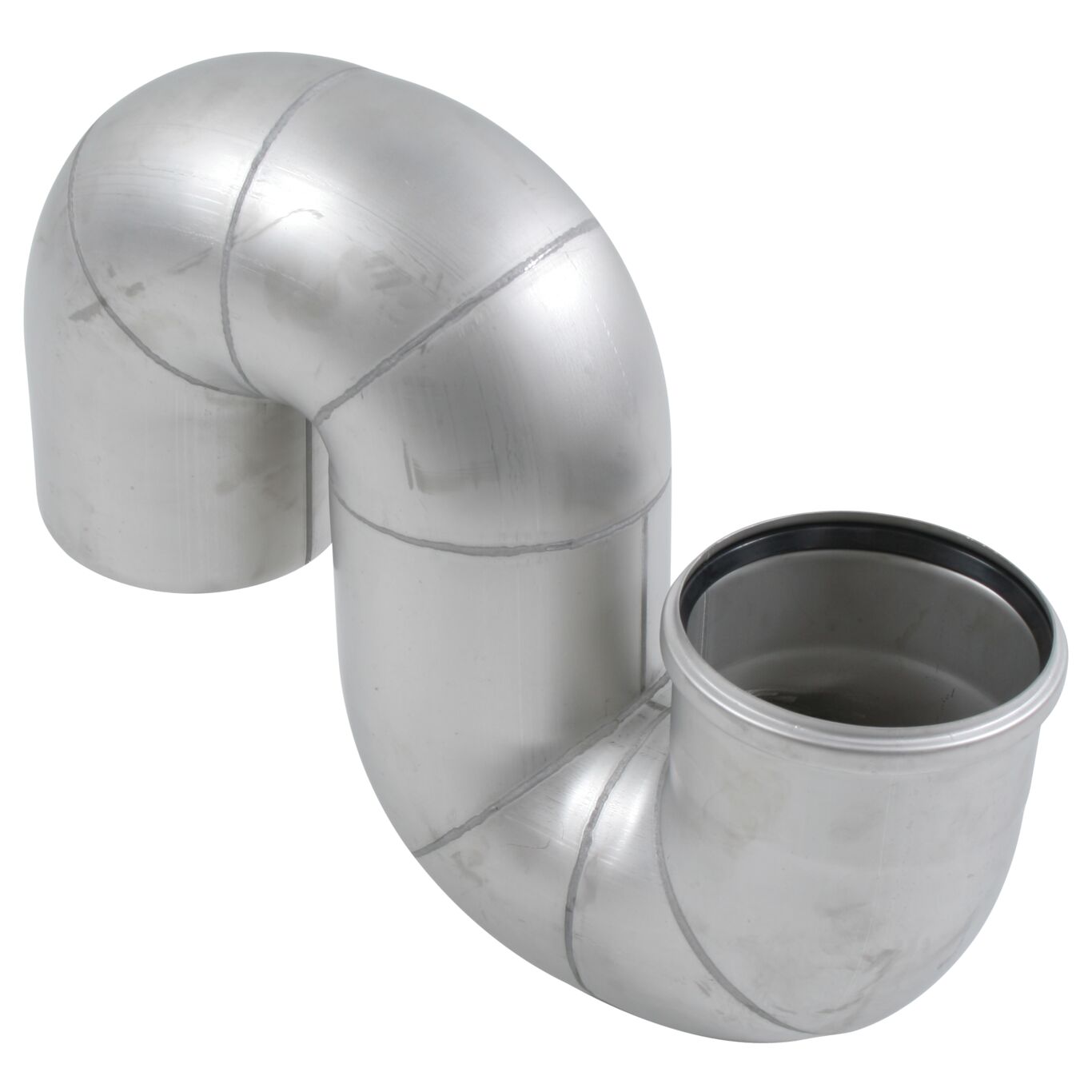

S-TRAP 180° - (525.180.160 S)
×
![]()
Part Of the Series: Water trap-S
Type no.: 525.180.160 S
EAN no.: 5705499114126

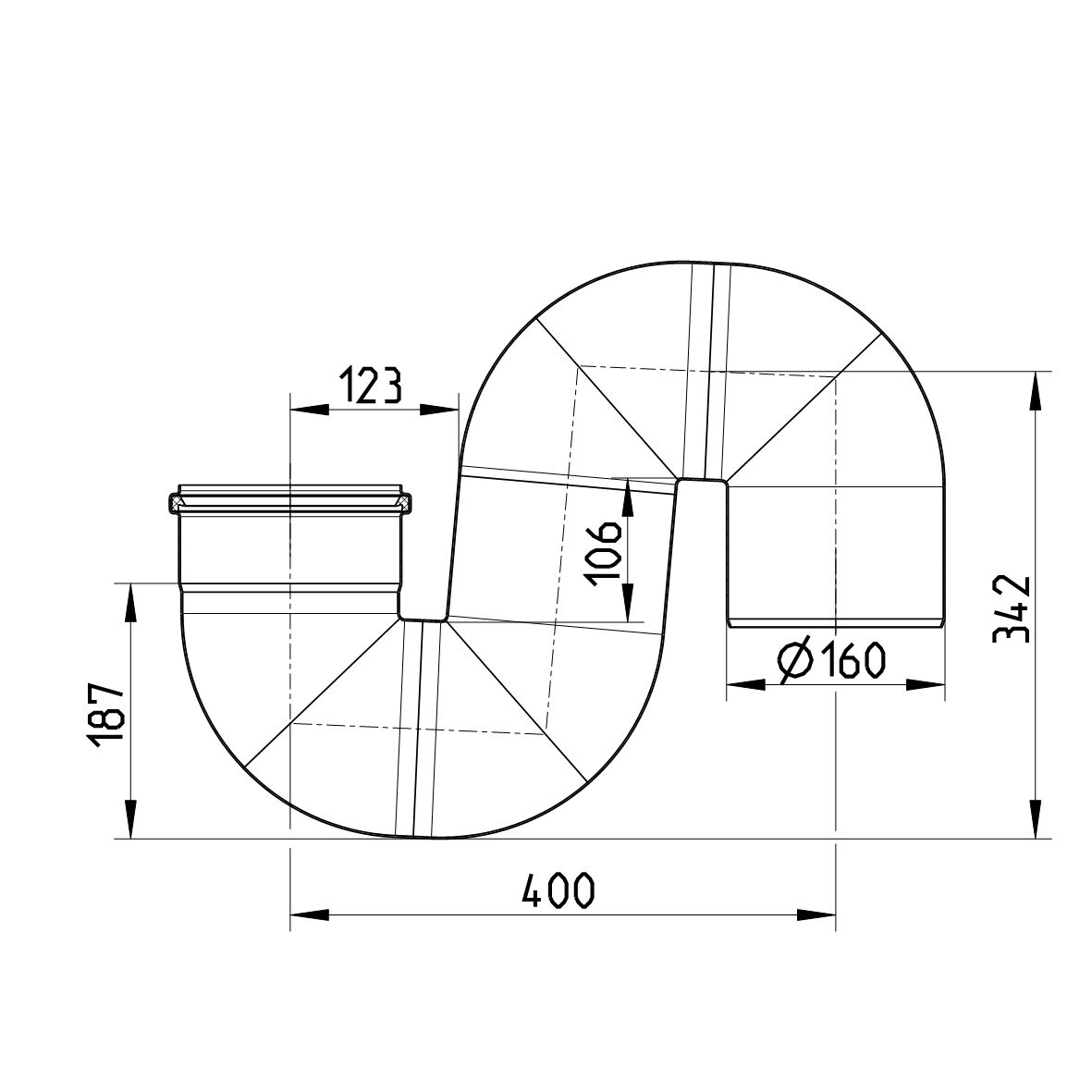

S-TRAP 180°
-Diameter: Ø160MM
-Water seal height = 105mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 180 |
| Field of Application | Industrial |
| Length (mm) | 187 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Water Seal Height (mm) | 106 |
| Weight (kg) | 4,40 |
| Weight (lbs) | 9,7 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
