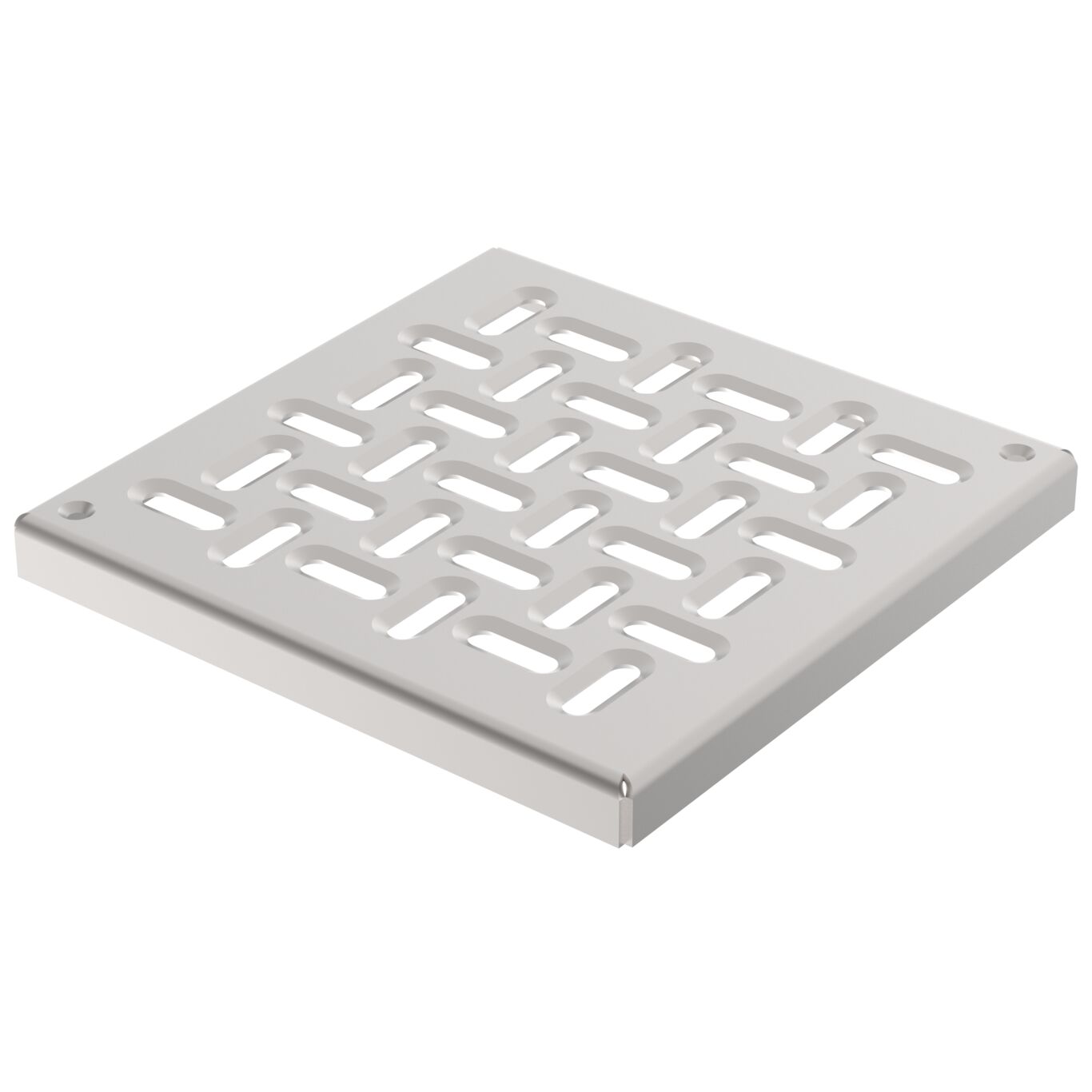

3MM GRATING SQUARE - (790.268.000.03 S)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.000.03 S
EAN no.: 5705499104646
VVS no.: 153539173
LVI no.: 3304034
Size: 300x300
3MM GRATING SQUARE

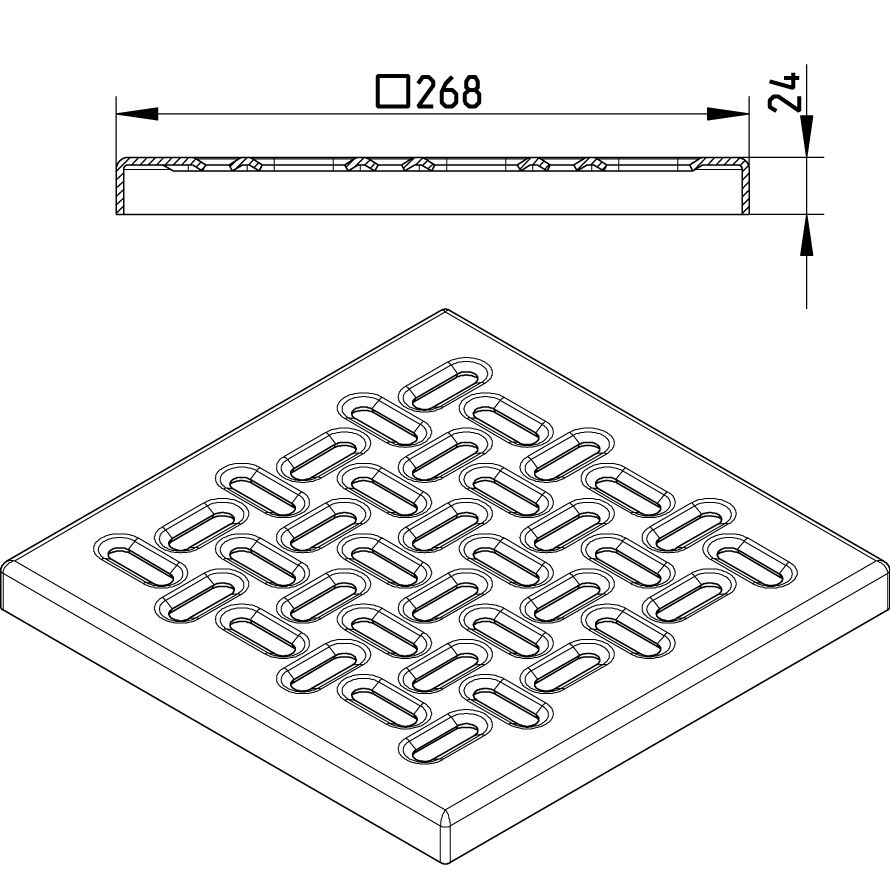

-Grating: 268x268mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (1250) |
| Load class EN1253(lbs) | L15 (2756) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 24 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (Inch) | 11¾x11¾ |
| Size (mm) | 300x300 |
| Weight (kg) | 1,89 |
| Weight (lbs) | 4,17 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
